Wireless Door Lock Buzzer

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSPECTION

INSPECTION





1. INSPECT WIRELESS DOOR LOCK BUZZER

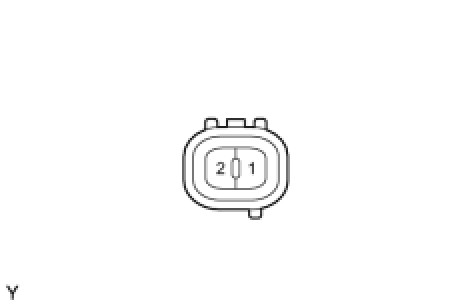

(a) Measure the resistance between terminals 1 and 2 of the buzzer.
Standard resistance:
Approximately 1 kOhms
NOTICE:
- The buzzer circuit is built into the theft warning ECU, not into the buzzer itself.
- When battery voltage is directly applied to the buzzer, the buzzer does not sound.
If the result is not as specified, replace the wireless door lock buzzer.
