Trunk / Liftgate Shock / Support: Service and Repair

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR SUPPORT: DISPOSAL

DISPOSAL





1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
(a) Remove the support Disassembly.
(b) Horizontally fix the stay in a vise with the piston's rod pulled out.

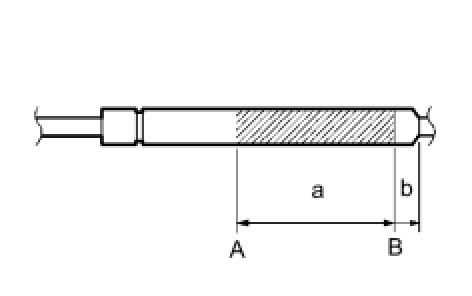

(c) Using a metal saw, gradually cut any area between A and B to release the gas.

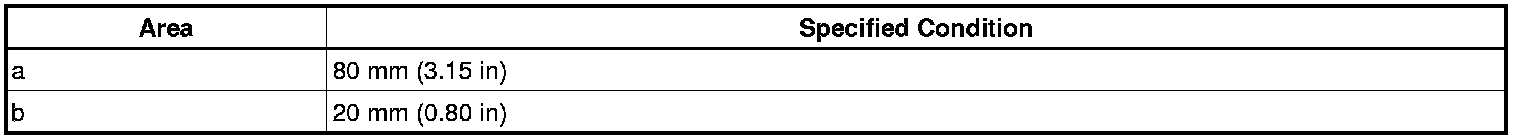

Standard measurement:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTE:
The gas is colorless, odorless and harmless.
