ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR HINGE: DISASSEMBLY

DISASSEMBLY
HINT:
- Before adjusting the door position for vehicles equipped with side airbag sensors, be sure to disconnect the cable from the negative (-) battery terminal. After adjustment, inspect the SRS warning light, the side airbag system for normal operation Service Precautions.
- Use the same procedures for the RH side and LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.





2. REMOVE REAR FLOOR FINISH PLATE
(a) Using a screwdriver, detach the 4 clips and remove the rear floor finish plate.
HINT: Tape the screwdriver tip before use.

3. REMOVE SPARE WHEEL COVER ASSEMBLY
4. REMOVE SPARE DISC WHEEL
5. REMOVE LUGGAGE COMPARTMENT FLOOR MAT





6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
(a) Using a clip remover, remove the 3 clips.
(b) Remove the trim cover.
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
(a) Using a clip remover, remove the 3 clips.
(b) Remove the trim cover.
8. REMOVE TOOL BOX COVER
(a) Remove the 4 nuts and cover.





9. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
(a) Remove the bolt and striker LH and RH.





10. REMOVE LUGGAGE COMPARTMENT TRIM REAR COVER SUB-ASSEMBLY
(a) Using a clip remover, remove the 4 clips and trim cover.

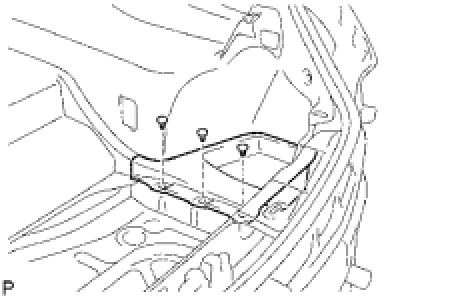

11. REMOVE SPARE WHEEL CARRIER BRACKET
(a) Remove the 4 bolts and bracket.





12. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
(a) Remove the cushion.
(b) Using a screwdriver, remove the 2 covers.
HINT: Tape the screwdriver tip before use.

(c) Using a T40 "TORX" wrench, remove the screw.
(d) Remove the 2 bolts.
(e) Remove the tonneau cover stopper.
(f) Disconnect the connector.
13. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH
HINT: Use the same procedures for the RH side and LH side.





14. REMOVE TONNEAU COVER ASSEMBLY
(a) Using a screwdriver, remove the 2 covers.
HINT: Tape the screwdriver tip before use.

(b) Remove the 2 nuts and tonneau cover.





15. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
(a) Using a clip remover, remove the 6 clips and trim cover.





16. REMOVE REAR FLOOR FINISH SIDE PLATE RH
(a) Using a screwdriver, detach the claw and remove the side plate.
HINT: Tape the screwdriver tip before use.

(b) Remove the drain hose.
17. REMOVE REAR FLOOR FINISH SIDE PLATE LH
HINT: Use the same procedures for the RH side and LH side.





18. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
(a) Using a clip remover, remove the 12 clips and trim cover.





19. REMOVE LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY
(a) Using a screwdriver, remove the light.
HINT: Tape the screwdriver tip before use.

(b) Disconnect the connector.





20. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
(a) Using a clip remover, remove the 4 clips.
(b) Detach the 3 fasteners and remove the trim cover.





21. REMOVE DOOR INSIDE HANDLE BEZEL

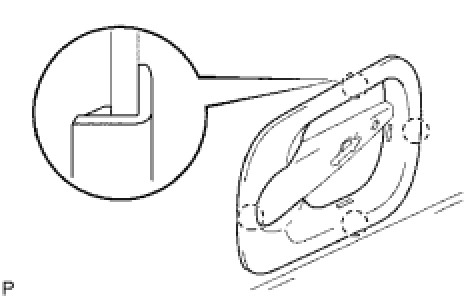

(a) Using a screwdriver, detach the 4 claws and remove the bezel.
HINT:
- Tape the screwdriver tip before use.
- Pressing the parts indicated in the illustration (around the service hole) releases the fitting of the claw.

22. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH
(a) Use the same procedures for the RH side and LH side.
23. REMOVE LUGGAGE COMPARTMENT DOOR COVER Disassembly
24. REMOVE LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY Disassembly

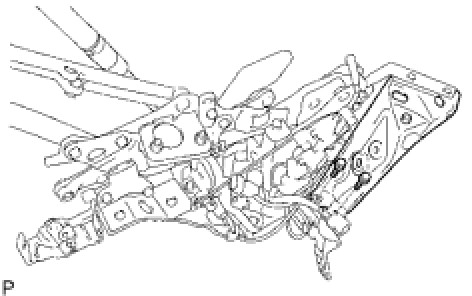

25. REMOVE LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY RH





(a) Remove the 2 nuts and cable bracket.
HINT: On the LH side, remove the wire harness reel.

(b) Disconnect the luggage compartment door hinge cable.
(c) Using a clip remover, disengage the clamps of the cable.





(d) Loosen the nut and then disconnect the cable.

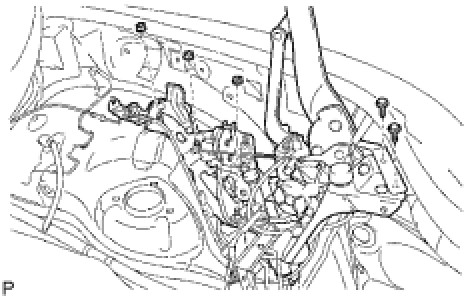

(e) Remove the 2 bolts and 3 nuts.
(f) Disconnect the connectors.
(g) Remove the luggage compartment door hinge.
HINT: If shims are present, store them.





26. REMOVE BACK DOOR STOPPER BRACKET RH
(a) Remove the 2 bolts and stopper bracket.





27. REMOVE LUGGAGE COMPARTMENT DOOR HINGE CABLE
(a) Using a screwdriver, remove the E-ring.
(b) Using pliers, remove the clip and control cable.





28. REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
(a) Using a screwdriver, remove the 2 clamps.
(b) Remove the door support.





29. REMOVE LUGGAGE CLOSER MOTOR ASSEMBLY

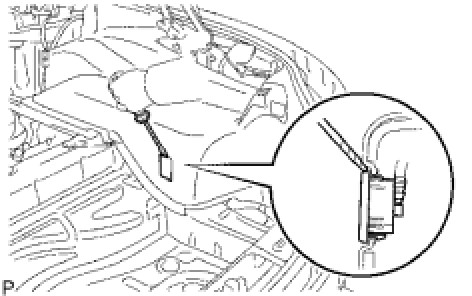

(a) Disconnect the connector from the bracket.
(b) Remove the 3 bolts and motor with the bracket.
30. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY





(a) Using pliers, move the cable and connecting lever until the closer fitting screw is visible.





(b) Using a T30 "TORX" wrench, remove the 2 screws.
(c) Disconnect the connector from the bracket.
(d) Remove the luggage door closer.





31. REMOVE LIMIT SWITCH ASSEMBLY

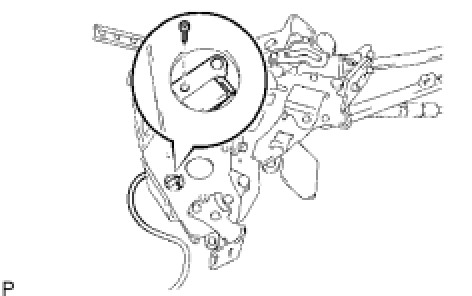

(a) Remove the screw and switch.
HINT: The screw has a rotating stopper.





32. REMOVE LUGGAGE DOOR DRIVE GEAR ASSEMBLY LH
(a) Remove the 3 bolts and drive gear.





33. REMOVE LIMIT SWITCH ASSEMBLY
(a) Remove the 2 screws and gear cover.
(b) Remove the screw and switch.
