ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

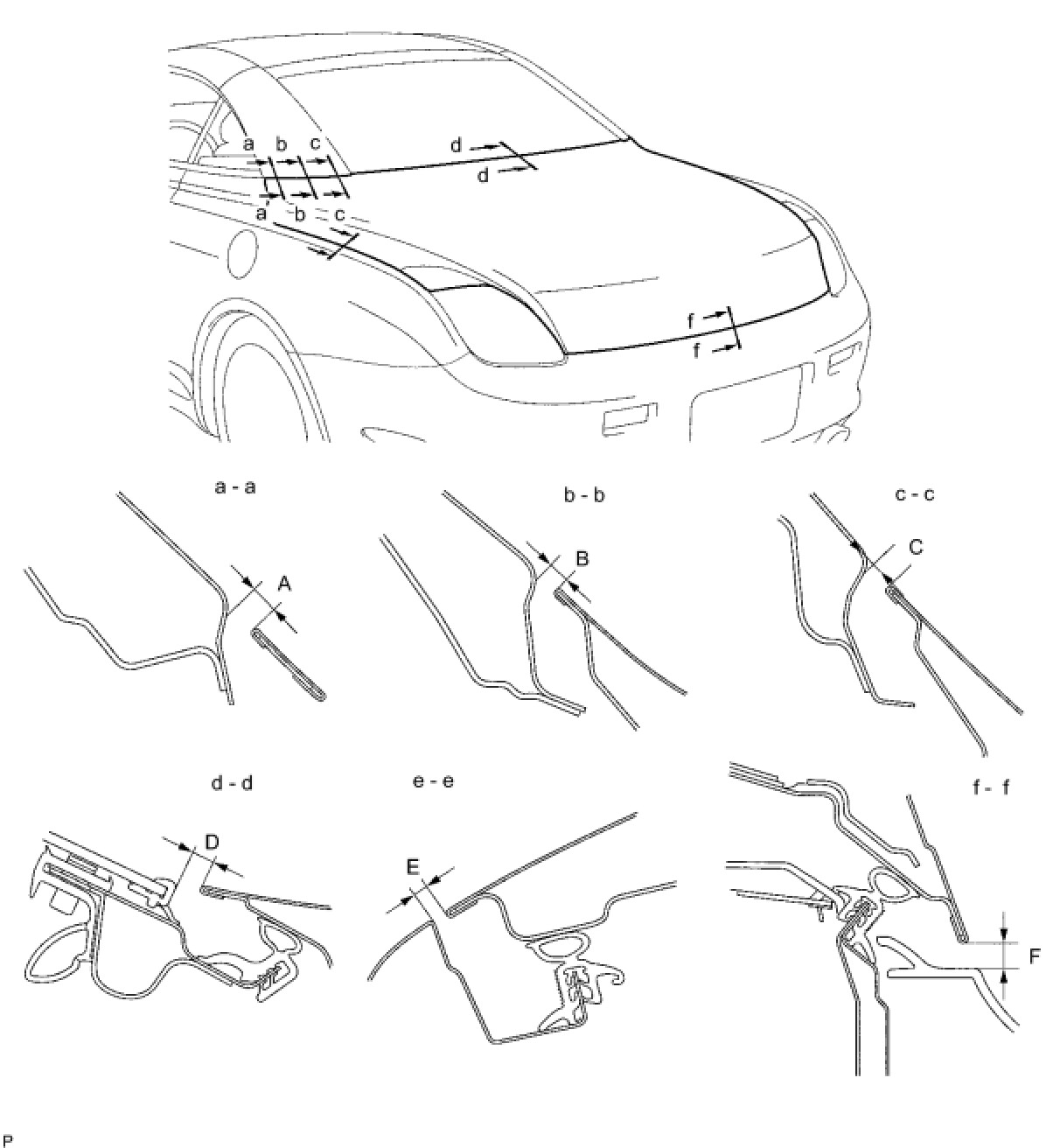

(a) Check that the clearance measurements of areas A to F are within the standard range.

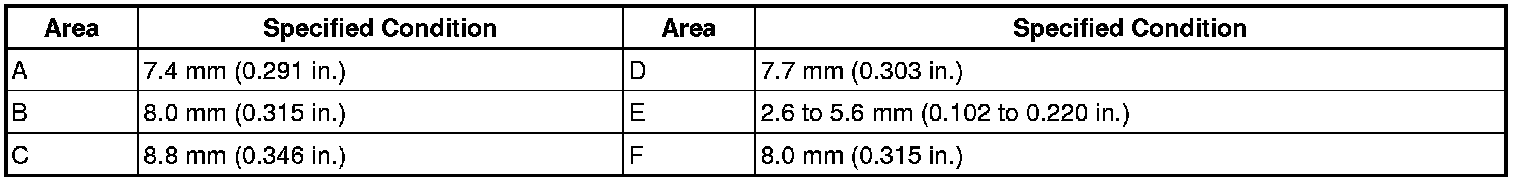

Standard measurement:
