Installation

ENGINE HOOD / DOOR: HOOD SUPPORT: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

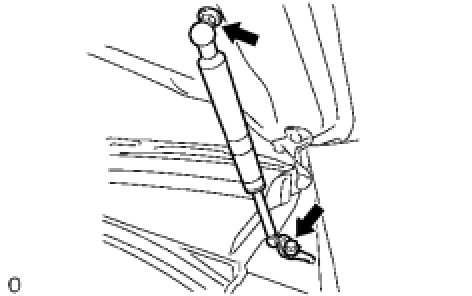

1. INSTALL HOOD SUPPORT ASSEMBLY LH
(a) Install the hood support with the 2 bolts.
Torque: 22 Nm (224 kgf-cm, 16 ft-lbf)
