Disposal

ENGINE HOOD / DOOR: HOOD SUPPORT: DISPOSAL

DISPOSAL
HINT: Use the same procedures for the RH side and LH side.





1. DISPOSE OF HOOD SUPPORT ASSEMBLY LH
(a) Remove the support Removal.
(b) Horizontally fix the stay in a vise with the piston's rod pulled out.

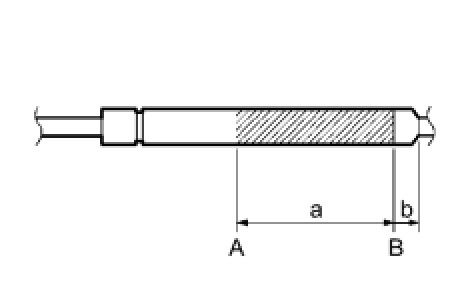

(c) Using a metal saw, gradually cut any area between A and B to release the gas.

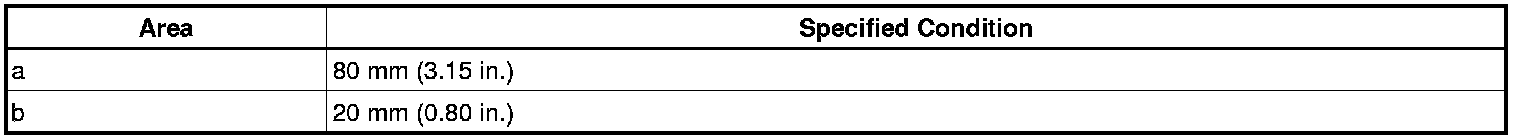

Standard measurement:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTE:
The gas is colorless, odorless and harmless.
