Fuel Door Release Cable: Testing and Inspection

ENGINE HOOD / DOOR: FUEL LID LOCK CONTROL CABLE ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT LUGGAGE DOOR OPENING SWITCH ASSEMBLY (FUEL LID OPENING SWITCH)
(a) Measure the resistance of the switch.

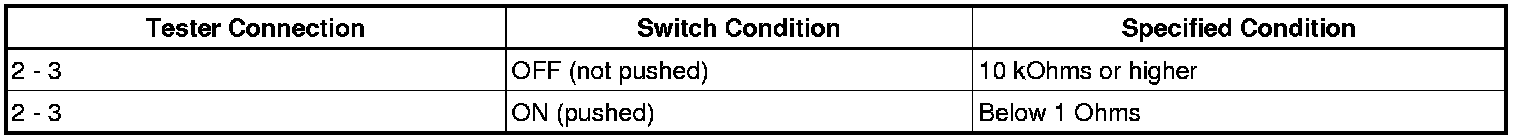

Standard resistance:





- If the result is not as specified, replace the switch assembly.





2. INSPECT FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY (FUEL LID OPENER MOTOR)
(a) Check the operation of the motor.
(1) Apply battery voltage to the motor and check the operation of the motor.
OK:





- If the result is not as specified, replace the cable sub-assembly.

(b) Measure the shaft strokes.
Standard stroke:
10.3 mm (0.406 in.) or more
If the result is not as specified, replace the cable sub-assembly.
