EXTERIOR: REAR BUMPER: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

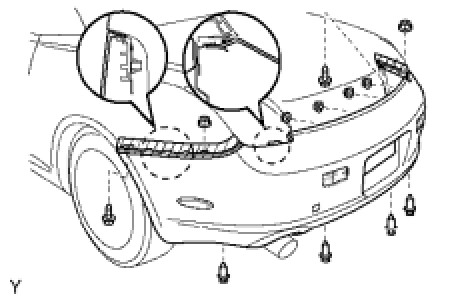

1. INSTALL REAR BUMPER COVER
(a) Apply protective tape under the quarter panel.
(b) Connect the 2 side marker light connectors.
(c) Connect the 2 back-up light connectors.
(d) Install the 2 license plate light sockets to the license plate light.
(e) Attach the claws to install the rear bumper cover.
(f) Install the 2 screws, 6 bolts and 4 clips.
(g) Remove the protective tape.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE LH

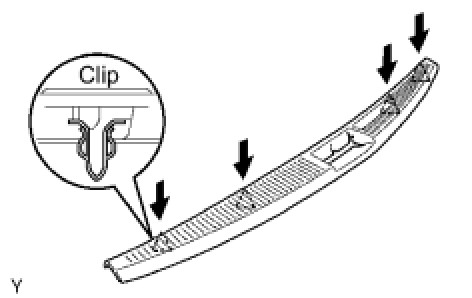

(a) Install the trim cover with the 4 clips.
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
(a) Install the trim cover with the 4 clips.
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
(a) Install the trim cover with the 12 clips.
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
(a) Install the trim cover with the 6 clips.
(b) Install the 2 strikers with the 2 bolts.
6. INSTALL TONNEAU COVER ASSEMBLY
(a) Install the tonneau cover with the 2 nuts and 2 caps.
7. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
(a) Install the trim cover with the 5 clips.
(b) Install the 2 strikers with the 2 bolts.
8. INSTALL TOOL BOX COVER
(a) Install the tool box cover with the 4 nuts.
9. INSTALL SPARE WHEEL COVER ASSEMBLY
10. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
(a) Install the trim cover with the 3 clips.
11. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
(a) Install the trim cover with the 3 clips.
12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT





13. INSTALL REAR FLOOR FINISH PLATE
(a) Attach the 4 clips to install the finish plate.
14. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY LH
(a) for LH side only:
Connect the connector.
(b) Using a T40 "TORX" wrench, install the sliding roof guide rail stopper (bolt) and tonneau cover stopper.
(c) Install the sliding roof guide rail stopper (rubber part) with the 2 bolts and 2 caps.
15. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH
HINT: Use the same procedures described for the LH side.
