Problem Symptoms Table

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

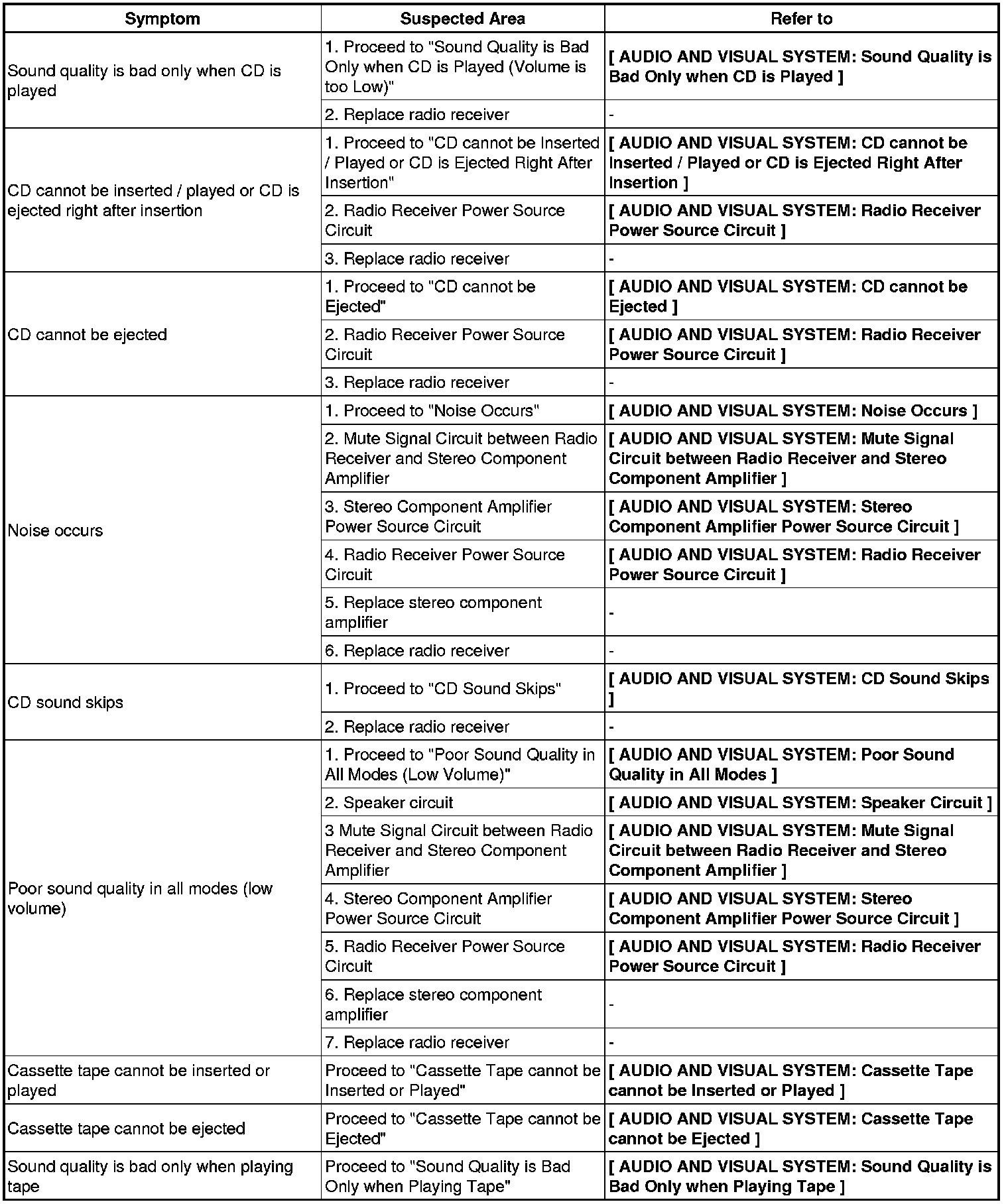

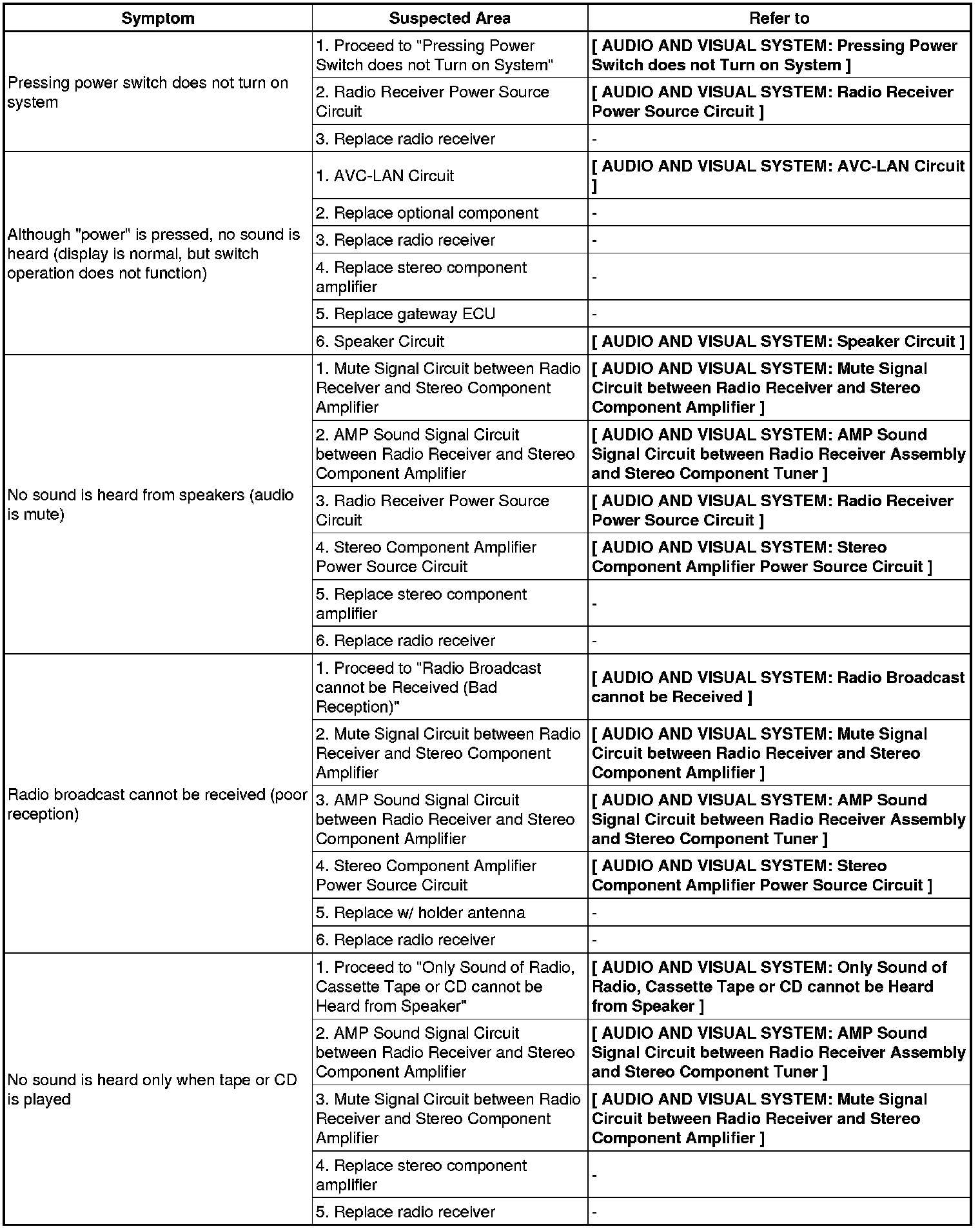

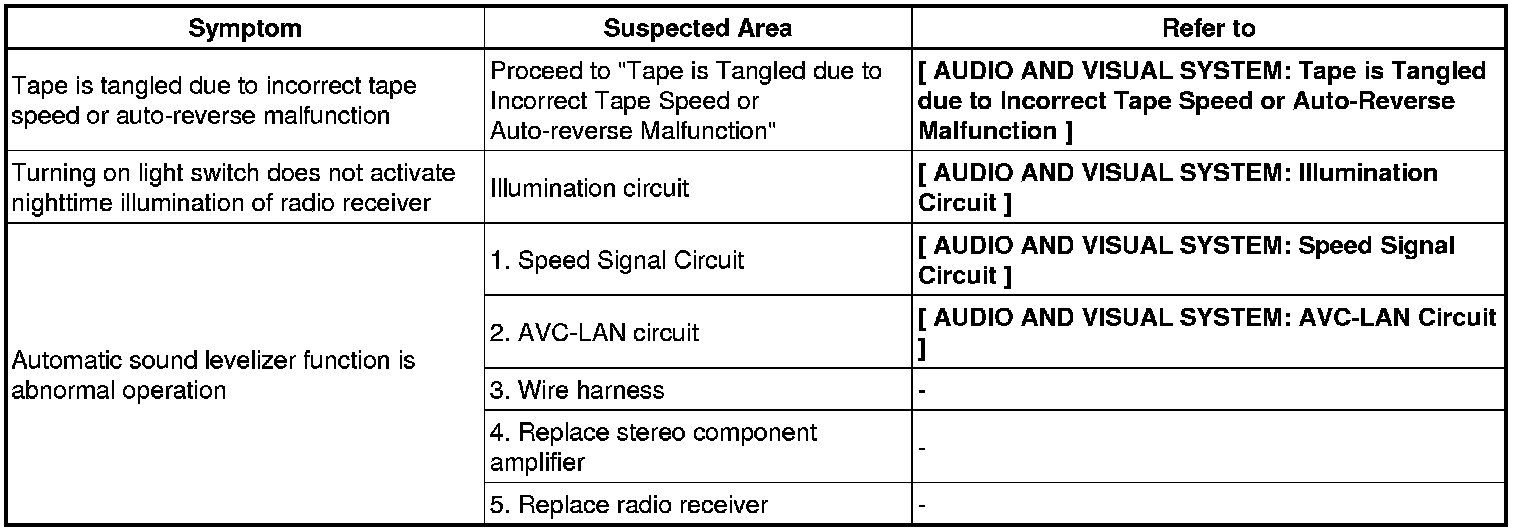

Audio function

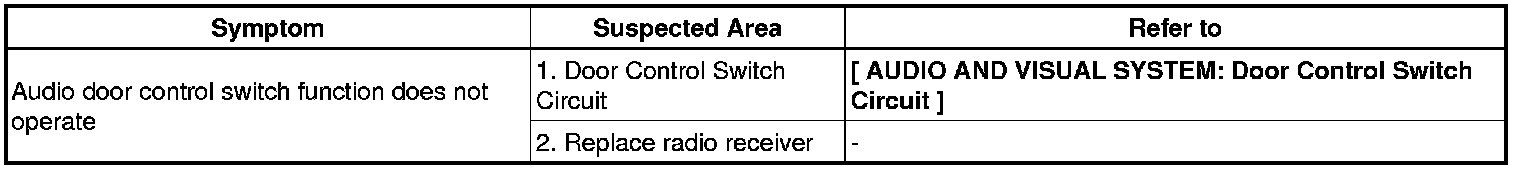

Audio door control switch function

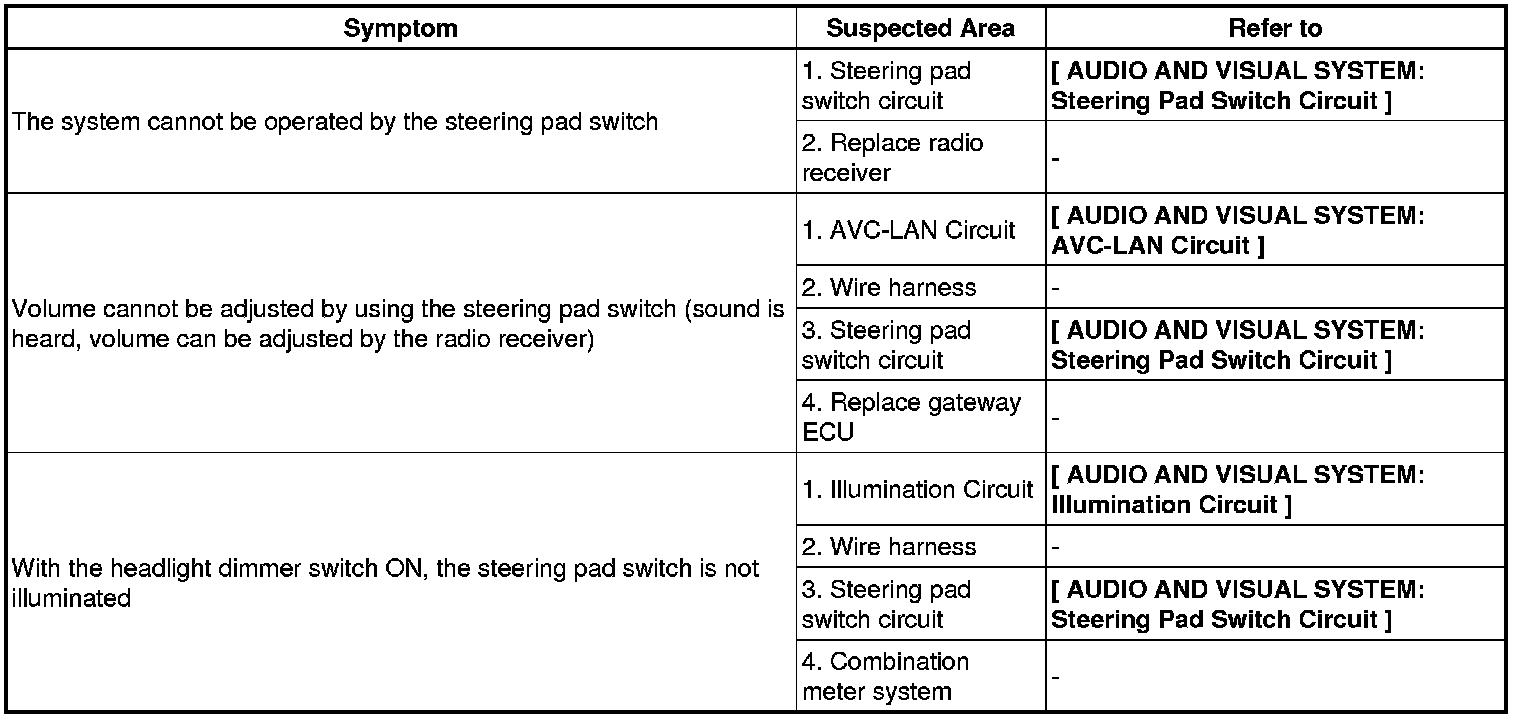

Steering pad function
