CD cannot be Inserted / Played or CD is Ejected Right After Insertion

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: CD cannot be Inserted / Played or CD is Ejected Right After Insertion

CD cannot be Inserted / Played or CD is Ejected Right After Insertion

INSPECTION PROCEDURE

PROCEDURE

1. CHECK IF A PROPER CD IS INSERTED
(a) Make sure that the CD is a normal audio CD, and that it is not deformed, flawed, stained, burred or otherwise defective.
OK:
Normal audio CD.
HINT:
- Translucent or uniquely-shaped CDs cannot be played.
- CDs for personal computers (with music recorded in) and CD-Rs cannot be played.
- Use an adapter to play 8 cm (3.2 in.) CDs.

NG -- CD IS FAULTY
OK -- Continue to next step.
2. CHECK THAT CD IS INSERTED PROPERLY
(a) Check whether or not the CD is inserted upside down.
OK:
CD is properly inserted.
NG -- SET CD PROPERLY
OK -- Continue to next step.
3. CLEAN CD

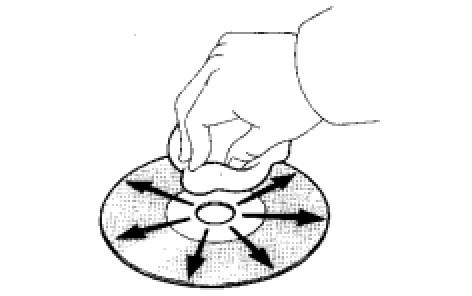

(a) Clean the disc by wiping the CD's underside radially with a soft cloth.
OK:
Malfunction disappears.
NOTE:
Do not use a conventional record cleaner or anti-static preservative.

OK -- CD WAS DIRTY
NG -- Continue to next step.
4. REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with a normal one and check if the same problem occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- CD IS FAULTY
