Stereo Component Amplifier Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Stereo Component Amplifier Power Source Circuit

Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier.

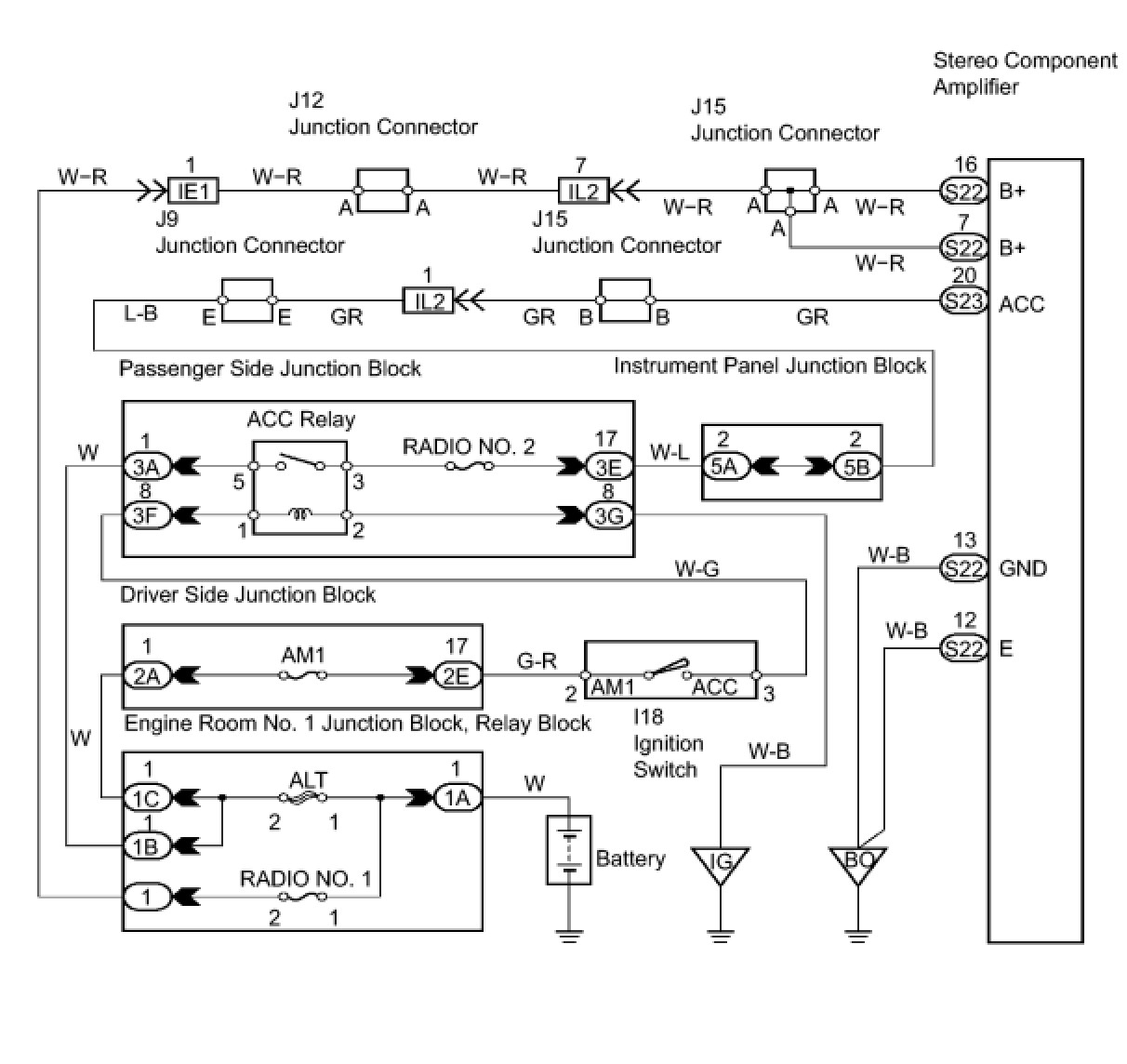

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (RADIO NO. 1, RADIO NO. 2, AM1)
(a) Remove the RADIO NO. 1 fuse from the engine room No. 1 relay block.
(b) Remove the RADIO NO. 2 fuse from the passenger side junction block.
(c) Remove the AM1 fuse from the driver side junction block.
(d) Measure the resistance of the fuses.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
2. CHECK WIRE HARNESS (STEREO COMPONENT AMPLIFIER - BATTERY AND BODY GROUND)




(a) Disconnect the S22 and S23 amplifier connectors.

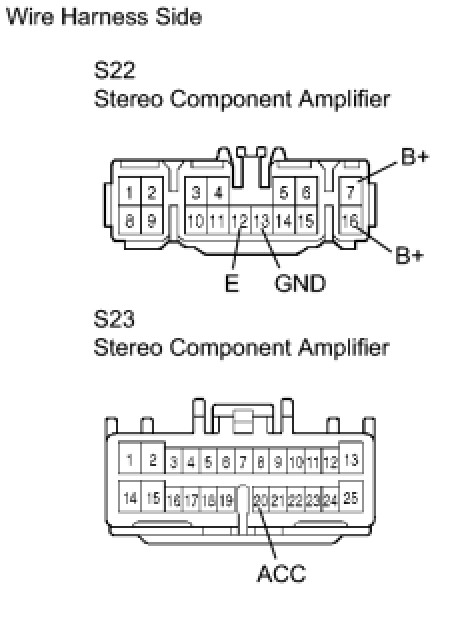

(b) Measure the resistance and voltage of the wire harness side connectors.

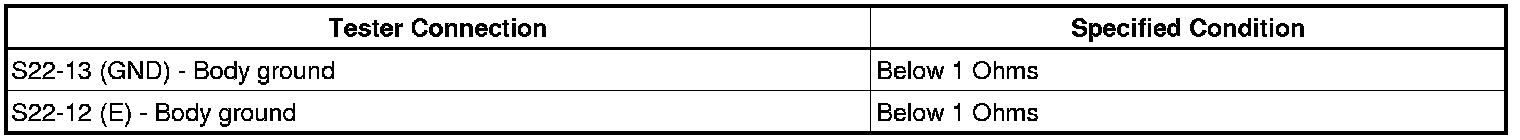

Standard resistance:

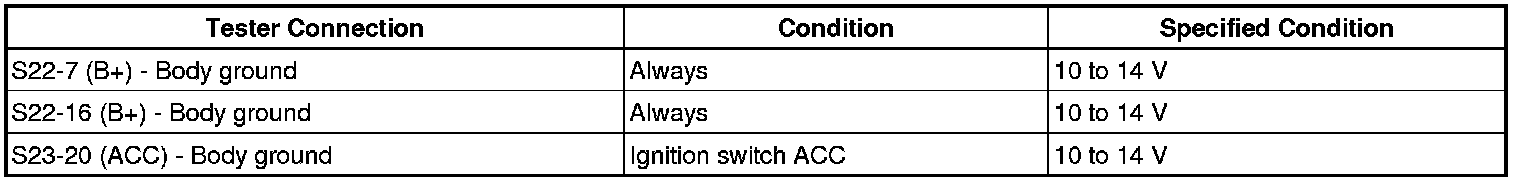

Standard voltage





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
