Steering Pad Switch Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Steering Pad Switch Circuit

Steering Pad Switch Circuit

INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (STEERING PAD SWITCH MODULATOR)
(a) Check the DATA LIST for proper functioning of the steering pad switch.

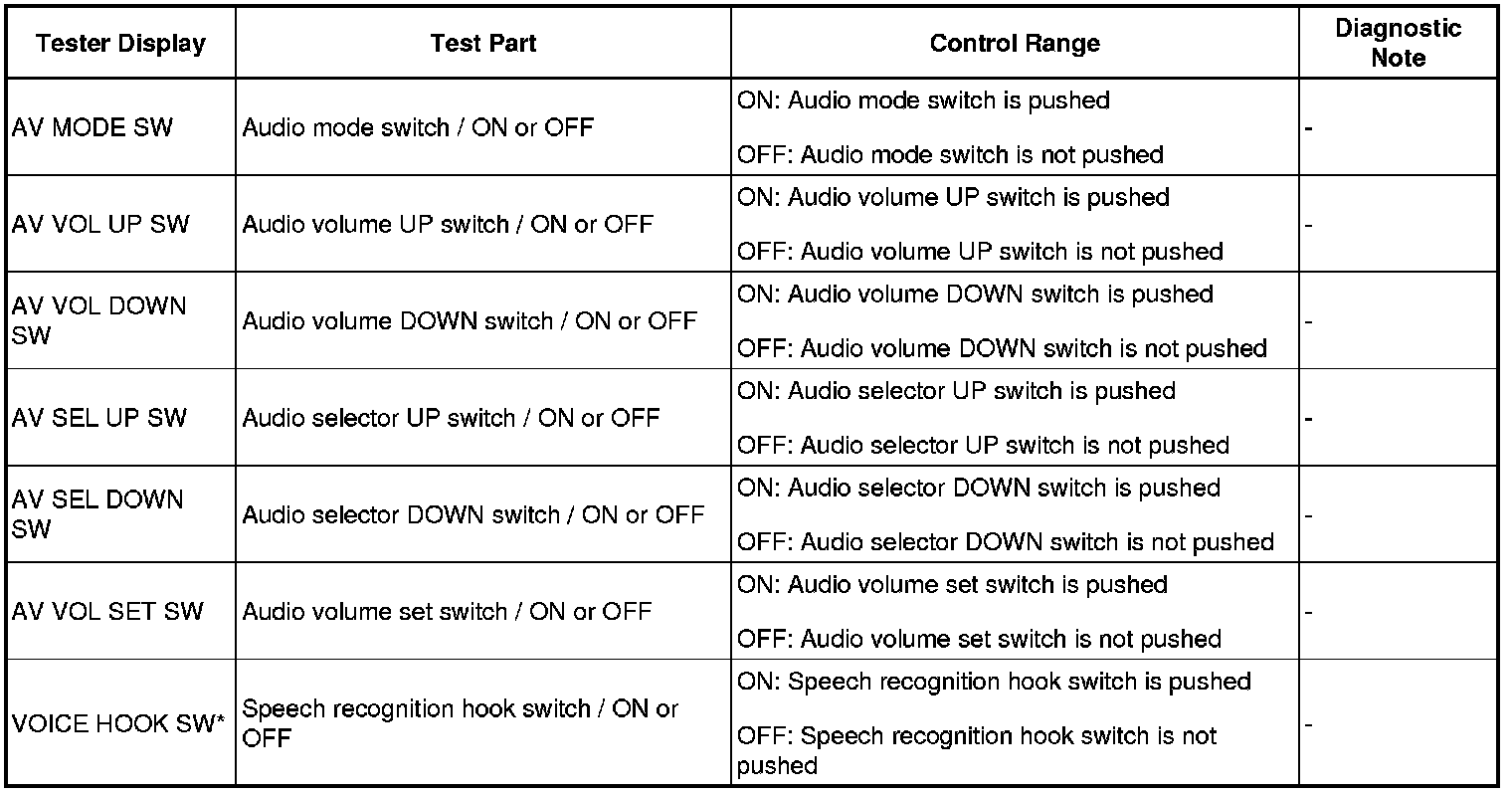

Steering pad switch modulator:





HINT: *: w/ Navigation System

OK:
ON appears on the screen when each steering pad switch is pushed.
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.
2. REPLACE STEERING PAD SWITCH MODULATOR
(a) Replace steering pad switch.
(b) Check if the vehicle is equipped with a navigation system.

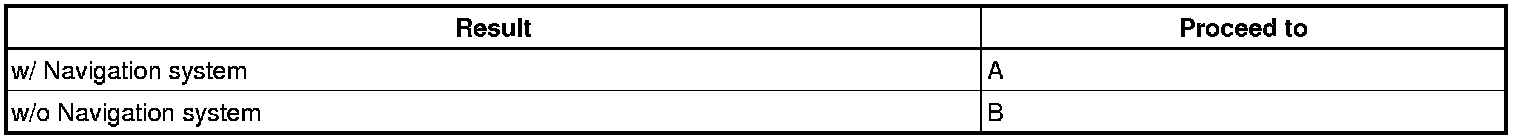

Result





B -- END
A -- Continue to next step.
3. RESET STEERING PAD SWITCH MODULATOR
(a) The following procedure must be completed within 30 seconds:
(1) Turn the ignition switch to ACC.
(2) Press the "Mode" button for at least 10 seconds.
(3) Within 5 seconds, press channel up twice and channel down twice.
NEXT -- END
