Removal

AUDIO / VISUAL: RADIO RECEIVER: REMOVAL

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
(a) Take out all CDs.
NOTE:
If CD(s) cannot be taken out, do not attempt to take it out forcibly. Send the unit to a repair shop.

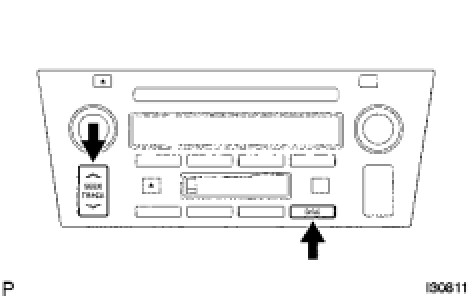

(b) While simultaneously pressing the "SEEK UP" and "DISK" switches, turn the ignition switch to ACC.




HINT:

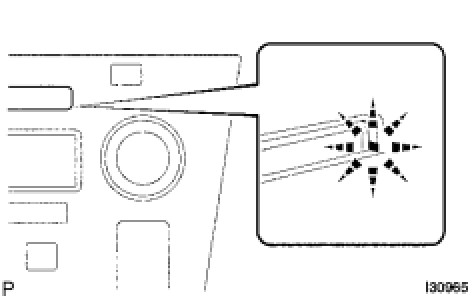

- The CD indicator light blinks during mode setting and it remains lit after the setting is completed.
- When the mode setting is completed, "SHIPMENT" appears on the display.

(c) Turn the ignition switch OFF.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE REAR CONSOLE UPPER PANEL GARNISH Removal
4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal
5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY Removal





6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
(a) Remove the 4 bolts and panel.
(b) Disconnect the connector.
7. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE SETTING

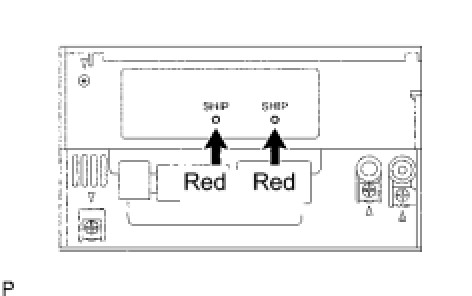

(a) Look at the backside of the radio receiver and check that red sections can be seen through the holes near the "SHIP" marks.
NOTE:
If red sections cannot be seen, perform the shipment mode setting again.

8. REMOVE RADIO RECEIVER ASSEMBLY





(a) Remove the 4 screws and 3 panel retainers.
(b) Remove the 4 bolts.
(c) Press the 2 claws shown in the illustration to detach them and remove the panel.
NOTE:
Do not forcibly press the claw as it may break.





(d) Remove the 2 screws and No. 1 bracket.
(e) Remove the 2 screws and No. 2 bracket.
