Installation

AUDIO / VISUAL: STEREO COMPONENT AMPLIFIER: INSTALLATION

INSTALLATION

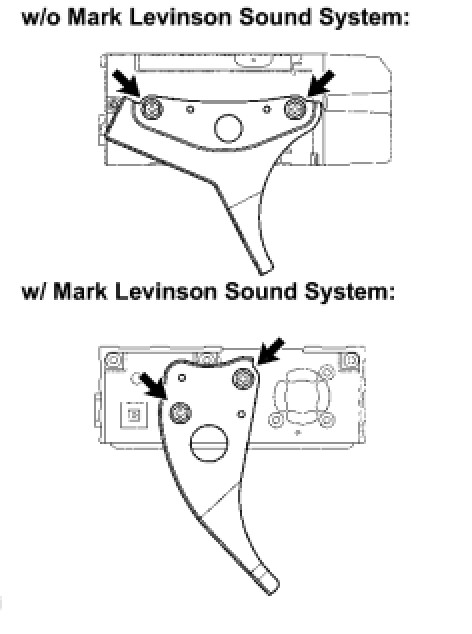

1. INSTALL NO. 2 AMPLIFIER BRACKET
(a) Install the bracket with the 2 screws.





2. INSTALL NO. 1 AMPLIFIER BRACKET
(a) Install the bracket with the 2 screws.
3. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY





(a) w/ Mark Levinson Sound System:
(1) Connect the 2 connectors.
(2) Install the amplifier with the 2 bolts and nut.





(b) w/o Mark Levinson Sound System:
(1) Connect the 2 connectors.
(2) Install the amplifier with the 2 bolts and nut.
4. INSTALL LUGGAGE COMPARTMENT TRAY BRACKET FRONT Installation
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Installation
7. INSTALL TONNEAU COVER ASSEMBLY Installation
8. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Installation
9. INSTALL TOOL BOX COVER Installation
10. INSTALL SPARE WHEEL COVER ASSEMBLY
11. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH Installation
12. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation
13. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
14. INSTALL REAR FLOOR FINISH PLATE Installation
15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
16. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
