Gyro Error

NAVIGATION: NAVIGATION SYSTEM: GYRO Error

GYRO Error

INSPECTION PROCEDURE

PROCEDURE

1. CHECK VEHICLE SENSOR (NAVIGATION CHECK MODE)

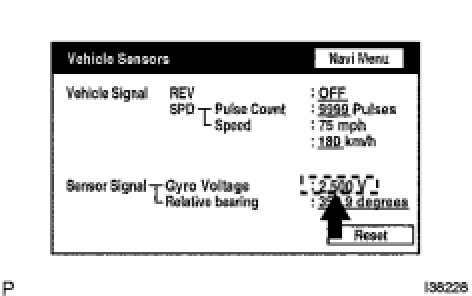

(a) Enter the Navigation Check mode's Vehicle Sensors check Navigation Check Mode.
(b) Check the gyro voltage.
Standard voltage:
0.1 to 4.5 V
NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
OK -- REPLACE NAVIGATION ECU
