AUDIO / VISUAL: MULTI-DISPLAY (w/ Navigation System): INSTALLATION

INSTALLATION

1. INSTALL MULTI-DISPLAY (CENTER DISPLAY)





(a) Install the multi-display.

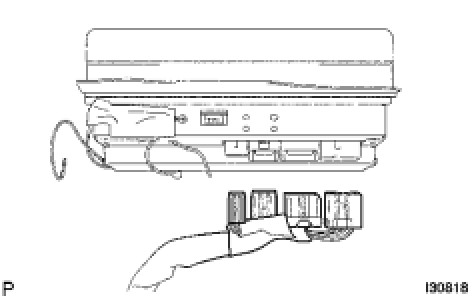

(b) Connect the 4 connectors and install the clamp.

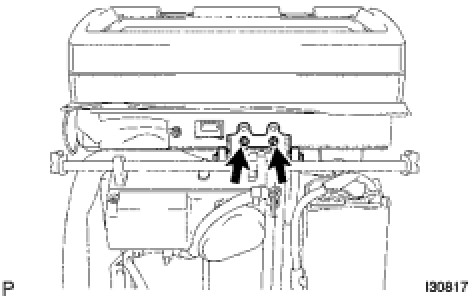

(c) Install the harness clamp with the 2 screws.

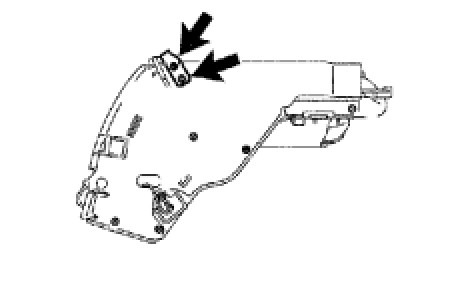

(d) Install the 2 screws.

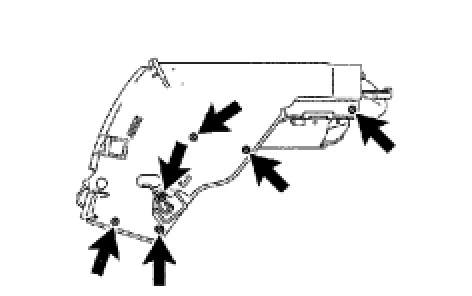

(e) Install the No. 2 retainer with the 5 screws.

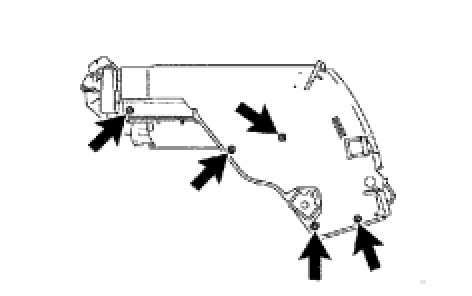

(f) Install the No. 1 retainer with the 6 screws.

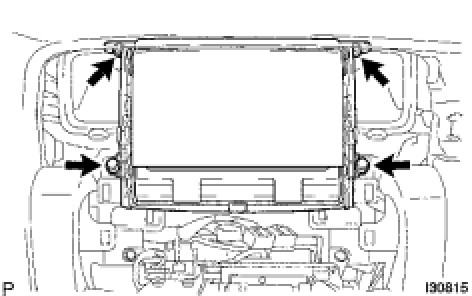

(g) Install the instrument panel finish upper panel with the 4 screws to the both sides.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
(a) Connect the connector and detach the clip.
(b) Install the panel with the 2 bolts and 2 screws.
3. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY Installation
4. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY Installation
5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT Installation
