AUDIO / VISUAL: RADIO ANTENNA HOLDER: INSTALLATION

INSTALLATION

1. INSTALL WITH HOLDER ANTENNA ASSEMBLY

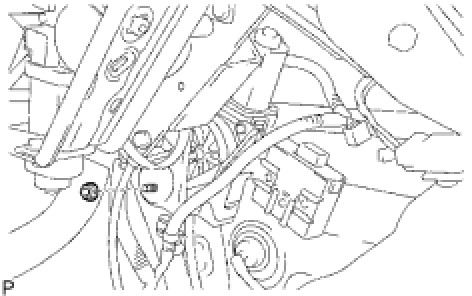

(a) Install the antenna with the nut.
(b) Connect the connector and plug to the antenna.

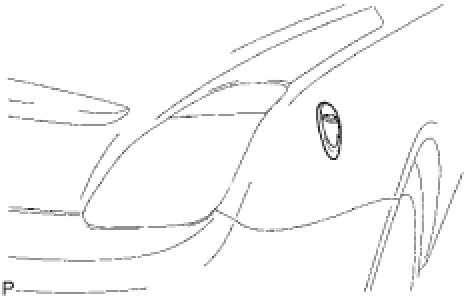

(c) Install the antenna ornament with the nut.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH Installation
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Installation
5. INSTALL TONNEAU COVER ASSEMBLY Installation
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Installation
7. INSTALL TOOL BOX COVER Installation
8. INSTALL SPARE WHEEL COVER ASSEMBLY
9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH Installation
10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation
11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
12. INSTALL REAR FLOOR FINISH PLATE Installation
13. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH Installation
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
