P0128

3UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0128: Thermostat Malfunction

DTC P0128 - Thermostat Malfunction

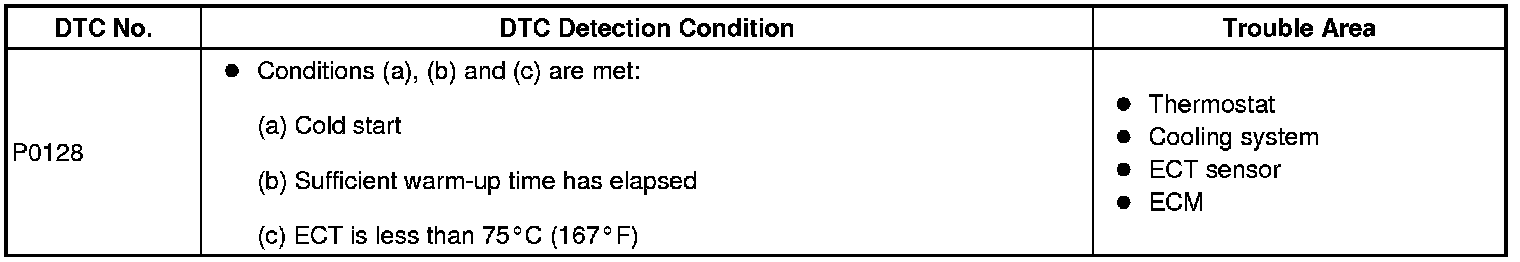

DESCRIPTION

This DTC is output when the Engine Coolant Temperature (ECT) does not reach 75°C (167°F) despite sufficient engine warm-up time.






MONITOR DESCRIPTION





The ECM estimates the coolant temperature based on starting temperature, engine loads, and engine speeds. The ECM then compares the estimated temperature with the actual ECT. When the estimated coolant temperature reaches 75°C (167°F), the ECM checks the actual ECT. If the actual ECT is less than 75°C (167°F), the ECM will interpret this as a fault in the engine cooling system or thermostat and set a DTC.

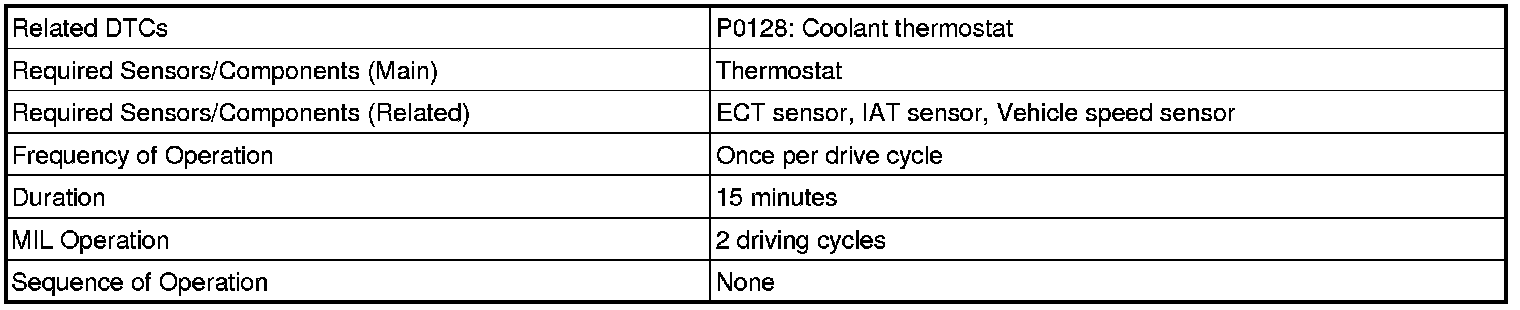

MONITOR STRATEGY

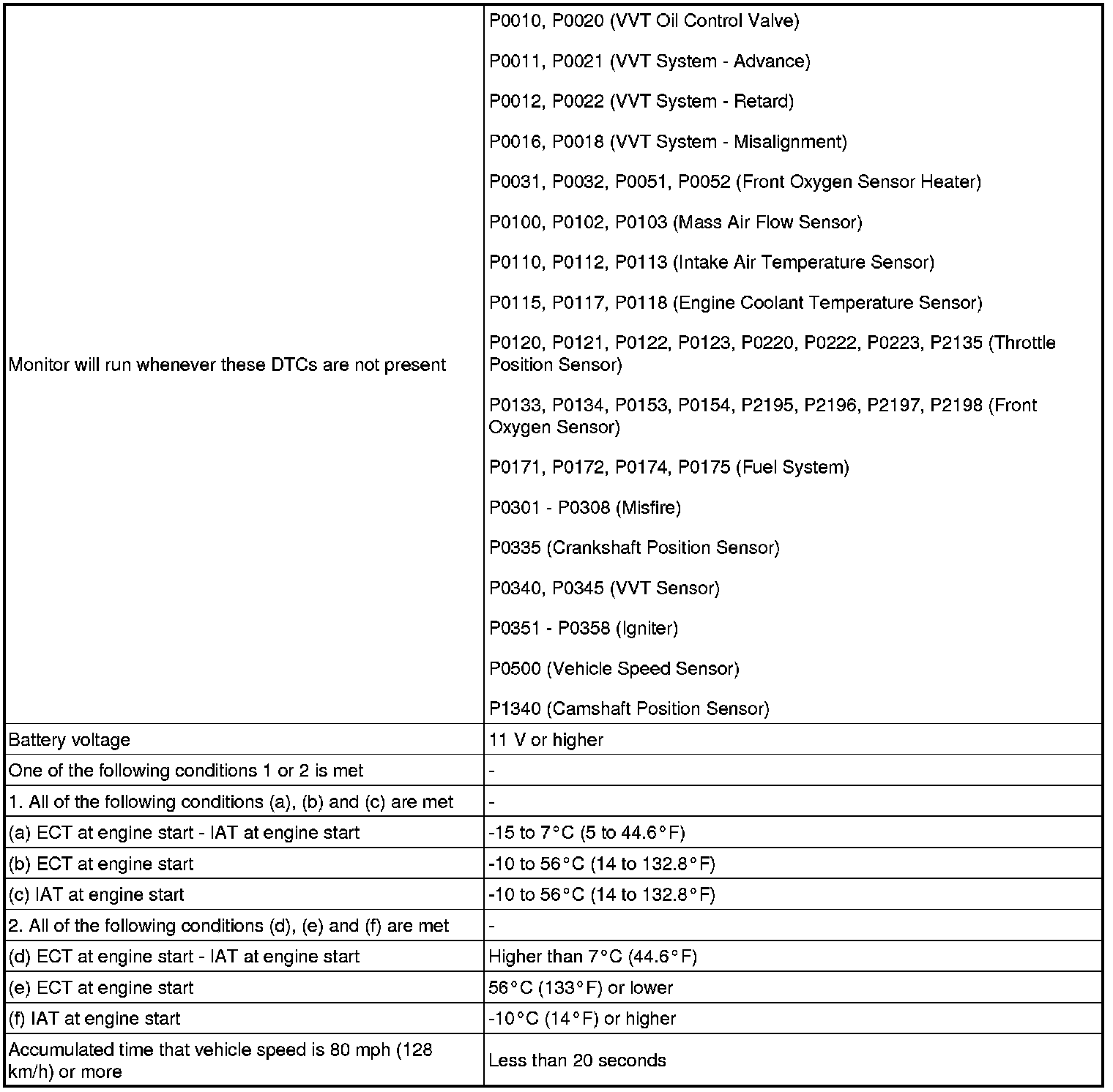

TYPICAL ENABLING CONDITIONS

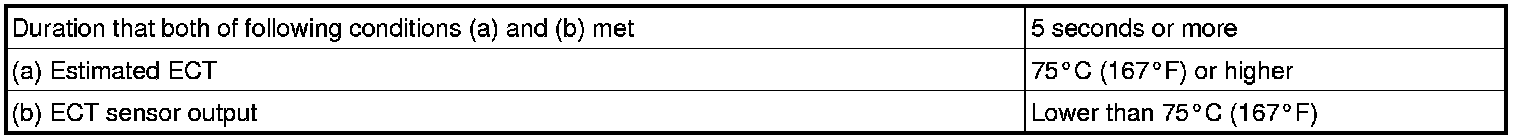

TYPICAL MALFUNCTION THRESHOLDS





WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Read freeze frame data using the Techstream. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0128)
(a) Connect the Techstream to the DLC3.
(b) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(c) Read the current codes.

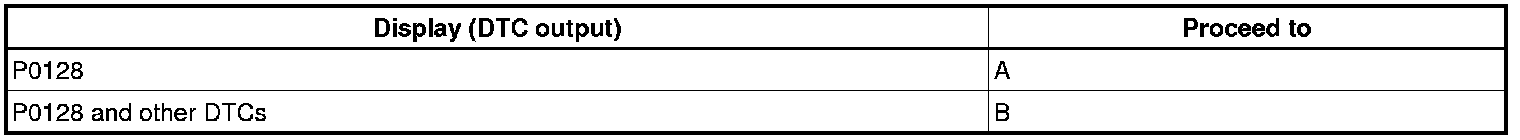

Result:





HINT: If any other codes besides P0128 are output, perform the troubleshooting for those DTCs first.

B -- GO TO RELEVANT DTC CHART
A -- Continue to next step.
2. CHECK COOLING SYSTEM
(a) Check for defects in the cooling system that might cause the system to be too cold, such as an abnormal radiator fan operation or a modified cooling system.
(b) Check the valve opening temperature of the thermostat.
OK:
Valve opening temperature is 80 to 84°C (176 to 183°F)
HINT: Also check that the valve is completely closed below the opening temperature shown above.

NG -- REPAIR OR REPLACE COOLING SYSTEM
OK -- Continue to next step.
3. INSPECT THERMOSTAT
(a) Inspect the thermostat Testing and Inspection.
NG -- REPLACE THERMOSTAT
OK -- REPLACE ECM
