Engine Control System Malfunction

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1201/51: Engine Control System Malfunction

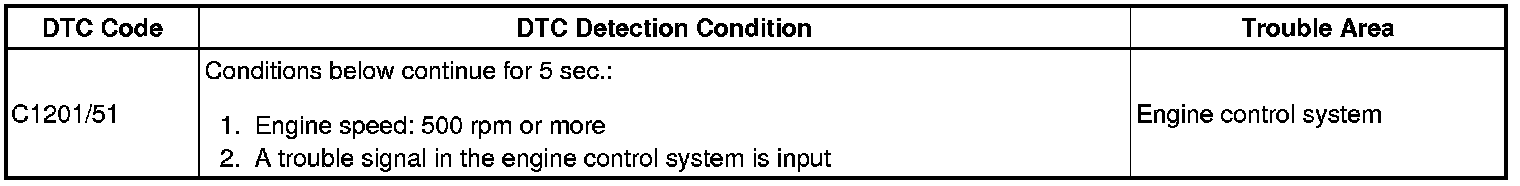

DTC C1201/51 - Engine Control System Malfunction

DESCRIPTION

If trouble occurs in the engine control system, the ECU prohibits TRAC and VSC control.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC
(a) Turn the ignition switch ON.
(b) Check that the MIL turns on.
(c) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

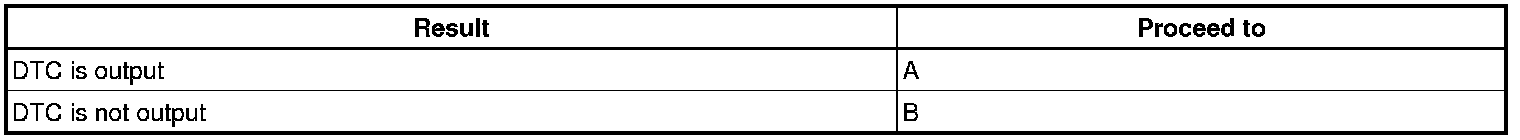

Result





B -- END
A -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
