Lighting System

LIGHTING: LIGHTING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

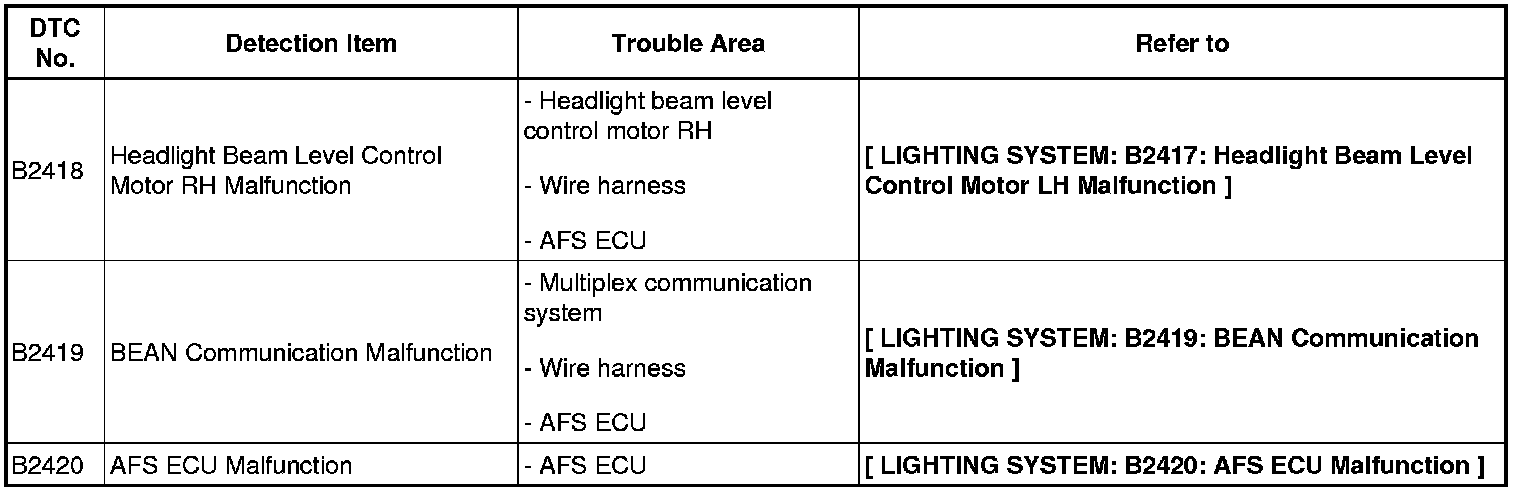

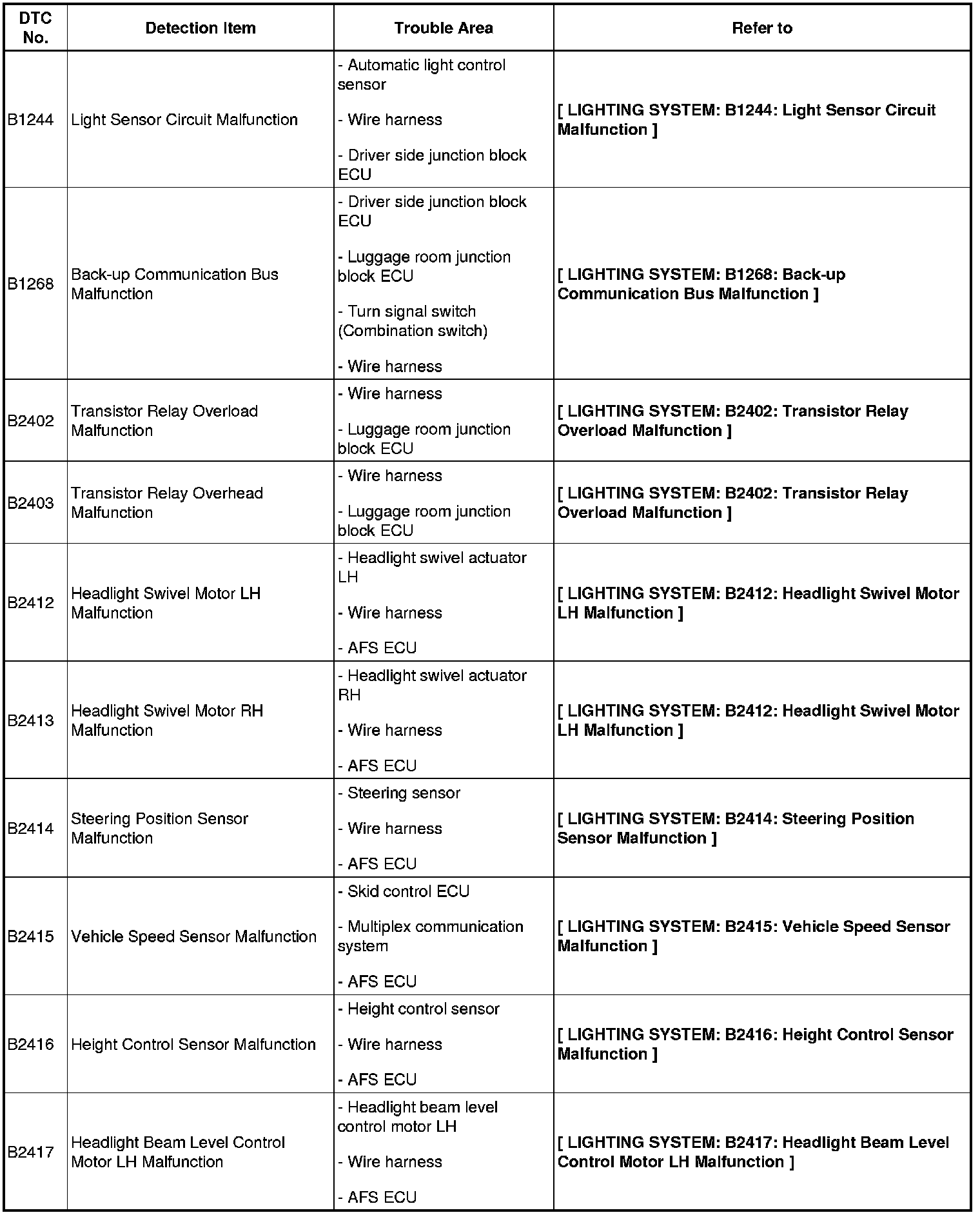

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Lighting system
