Automatic Transmission System - A761E
A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

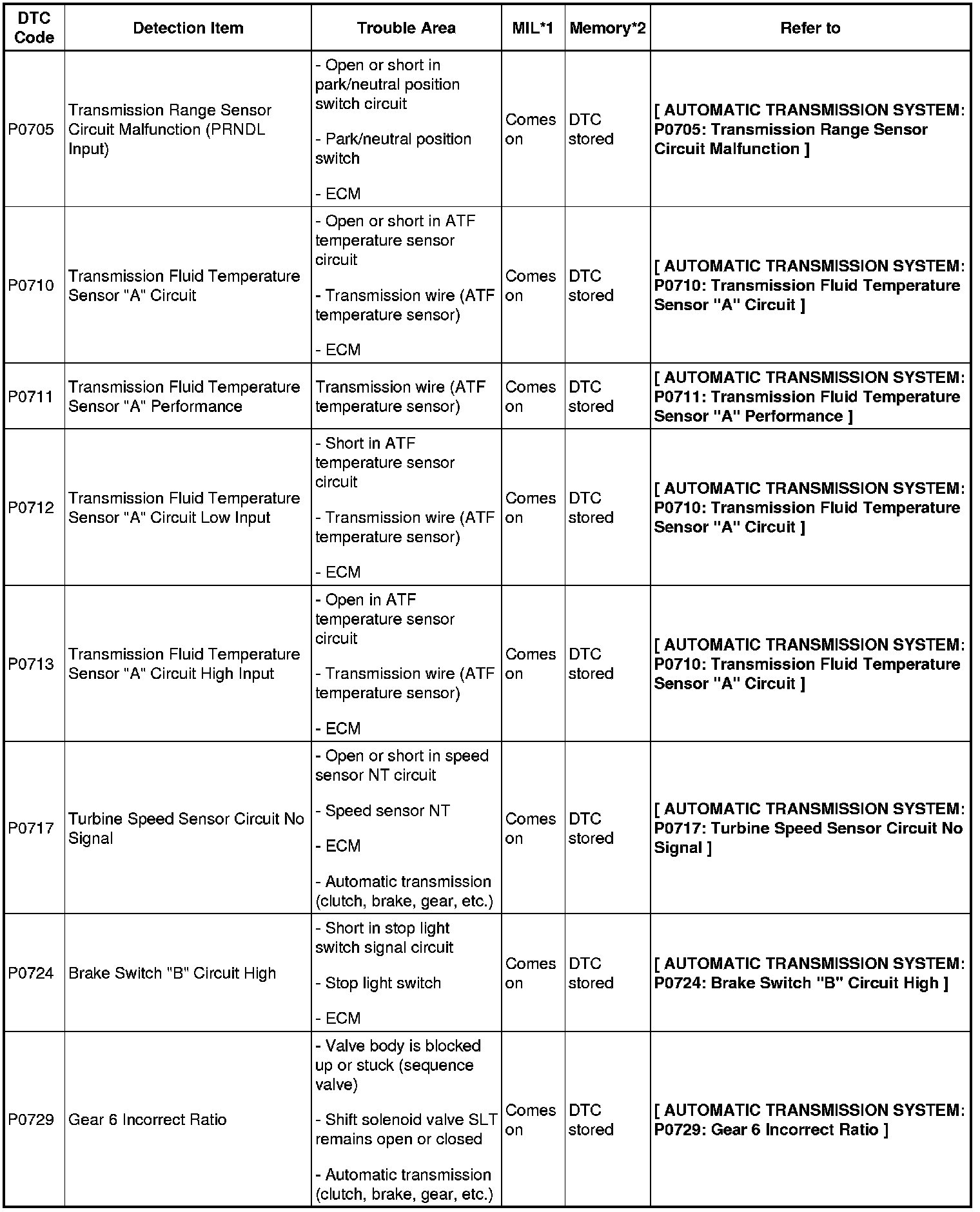

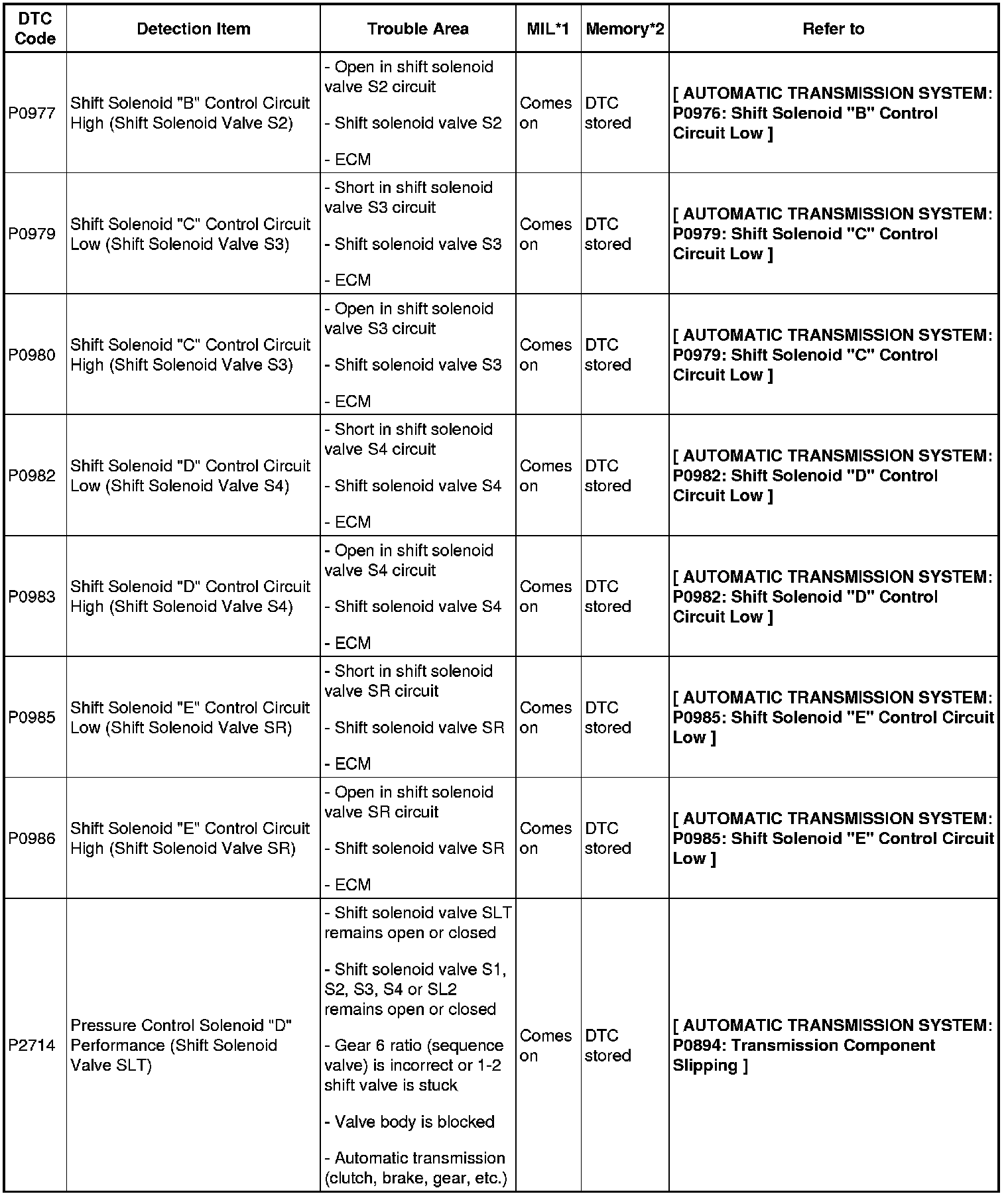

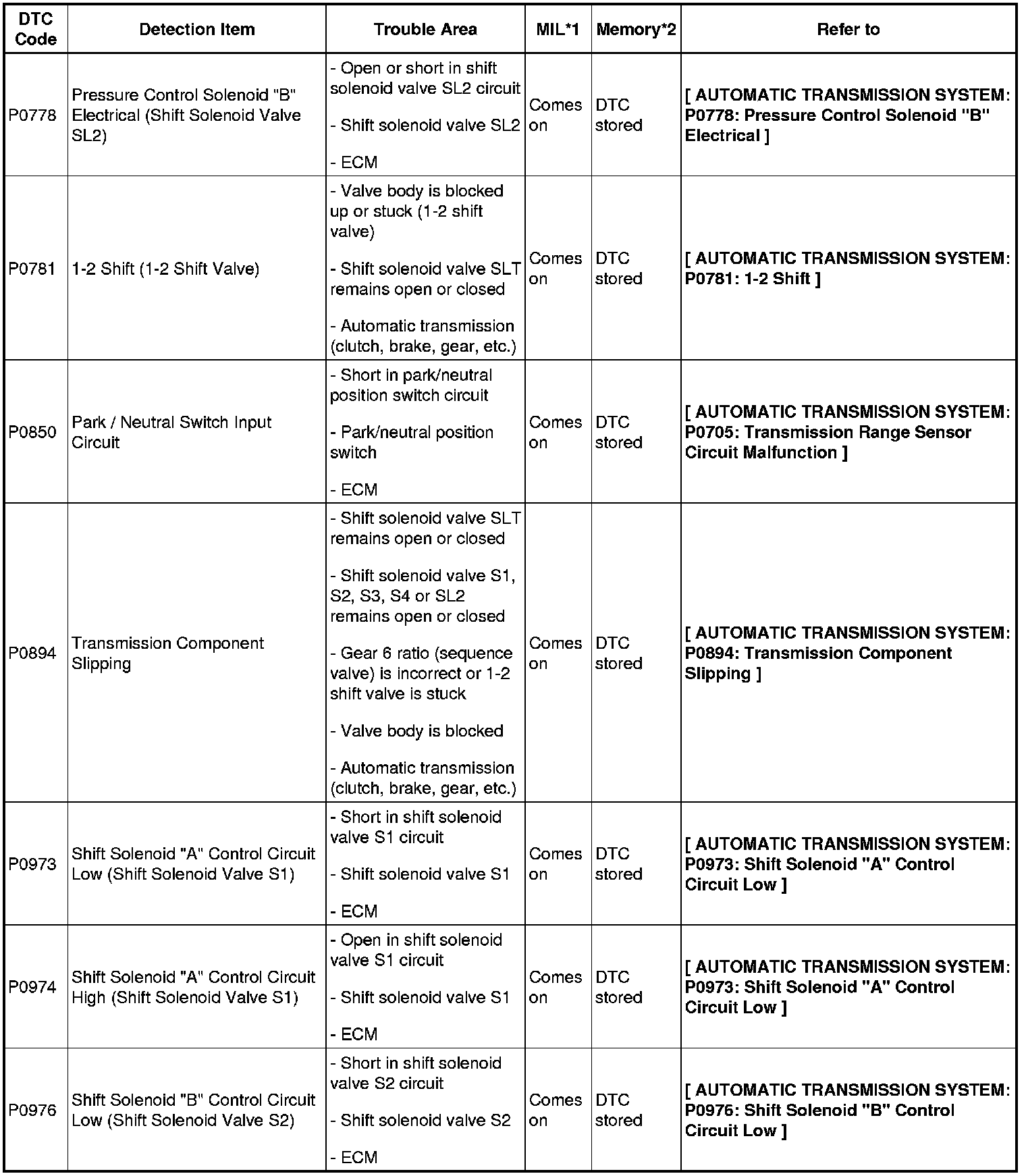

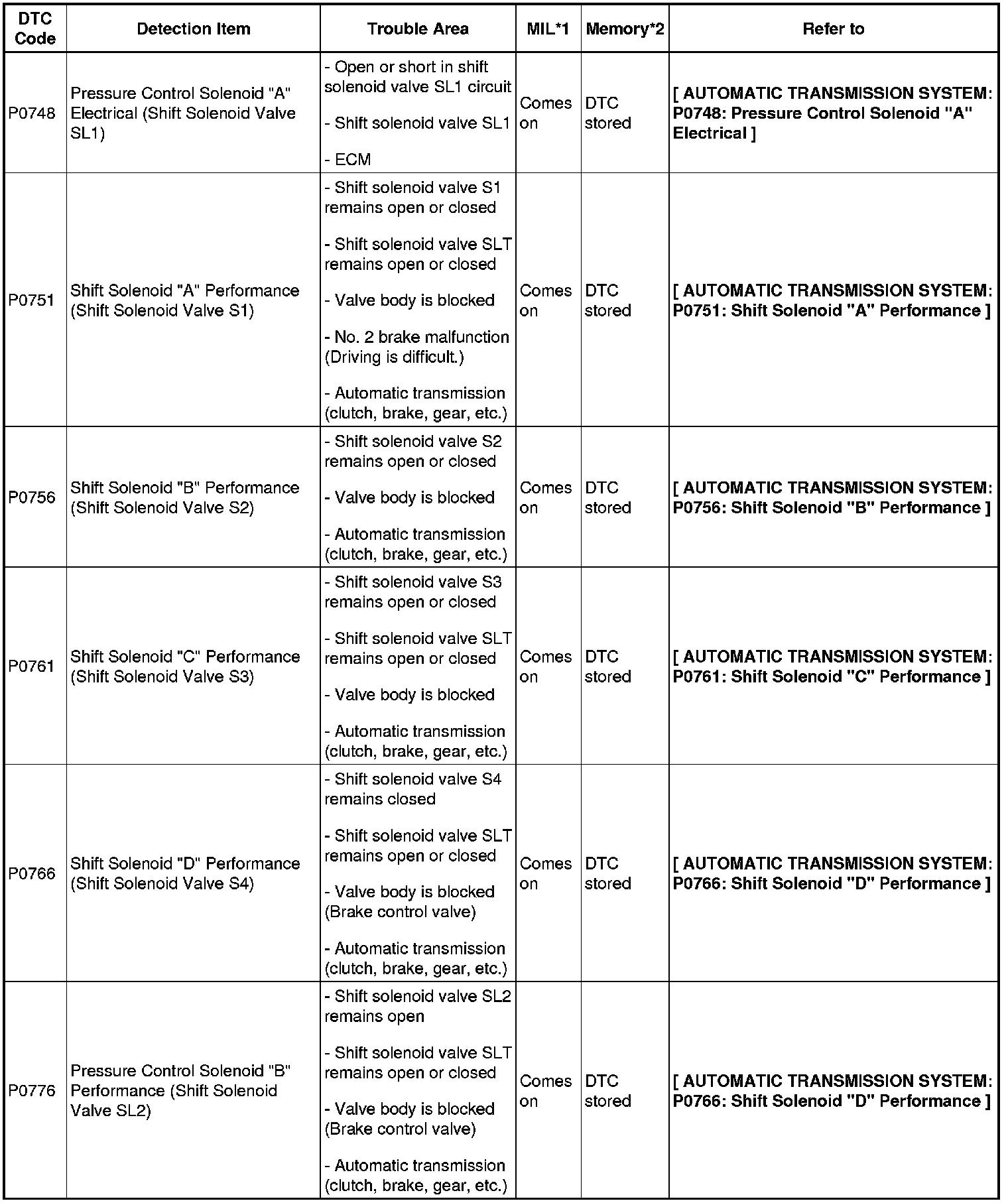

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the "See page" given.
- *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
- *2: "DTC stored" means the ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.
Automatic transmission system:
