Airbag System

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of code, refer to the "See page" below.
- *: w/o Occupant classification system

Airbag system

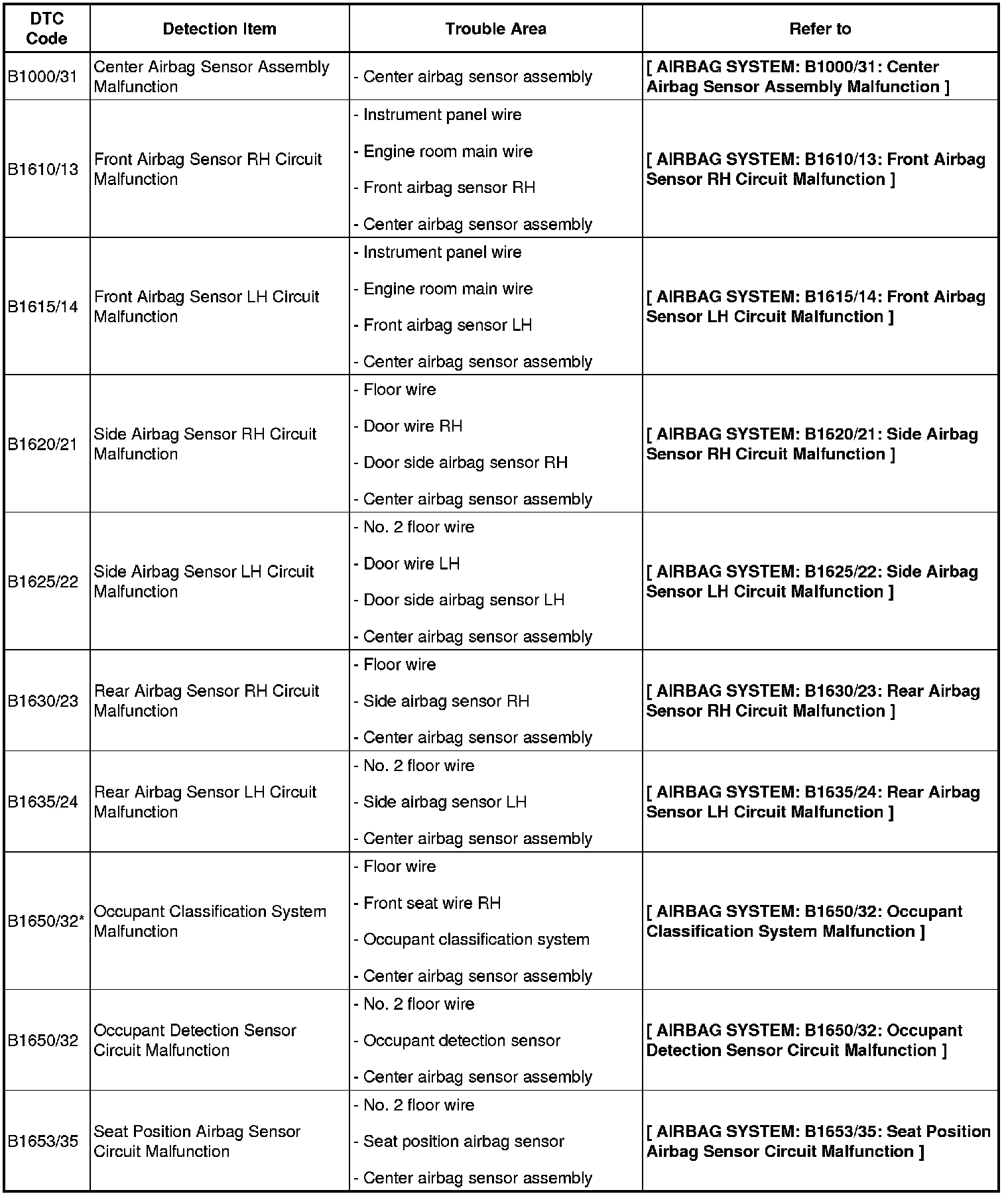

B1000/31-B1653/35:

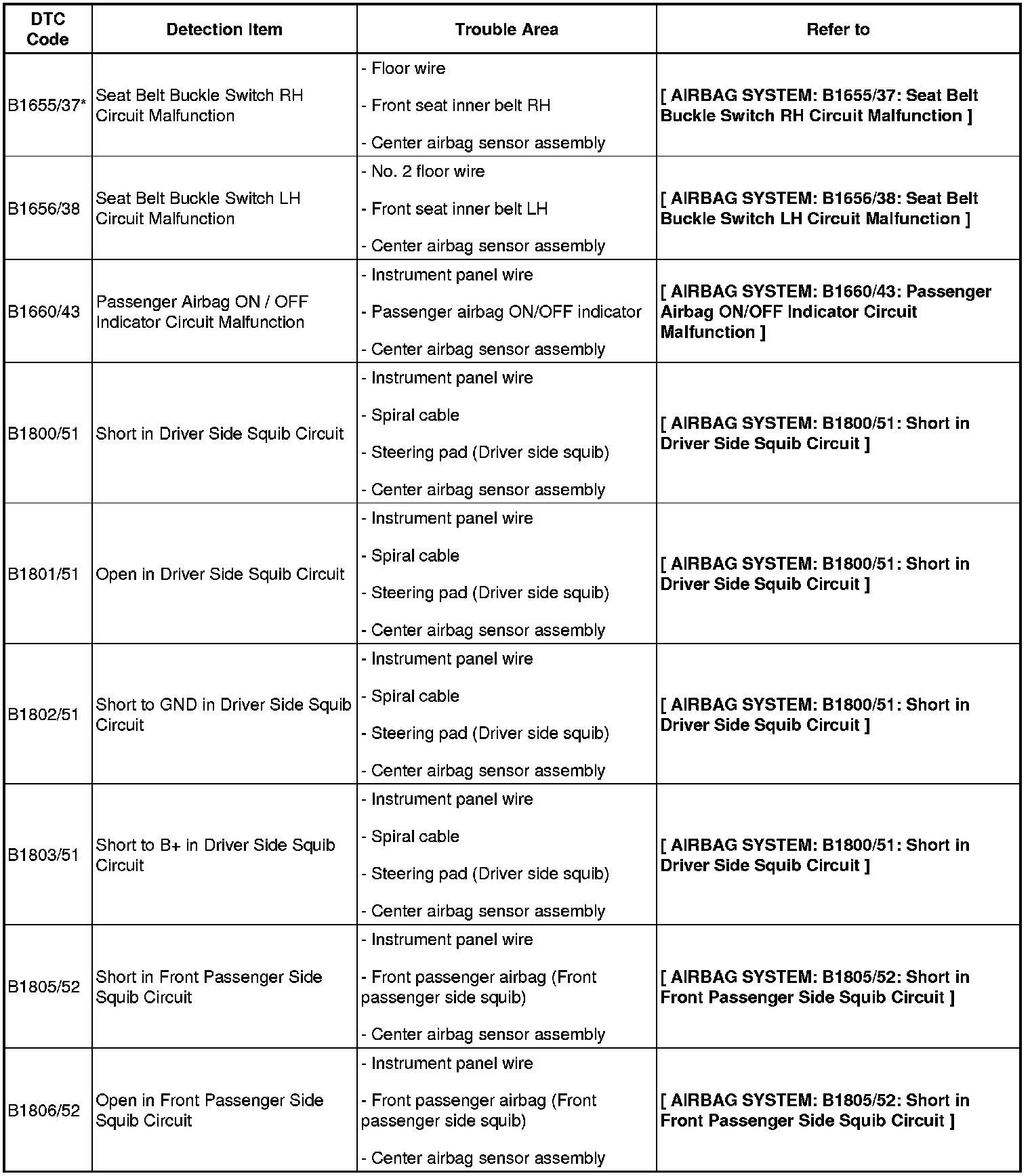

B1655/37-B1806/52:

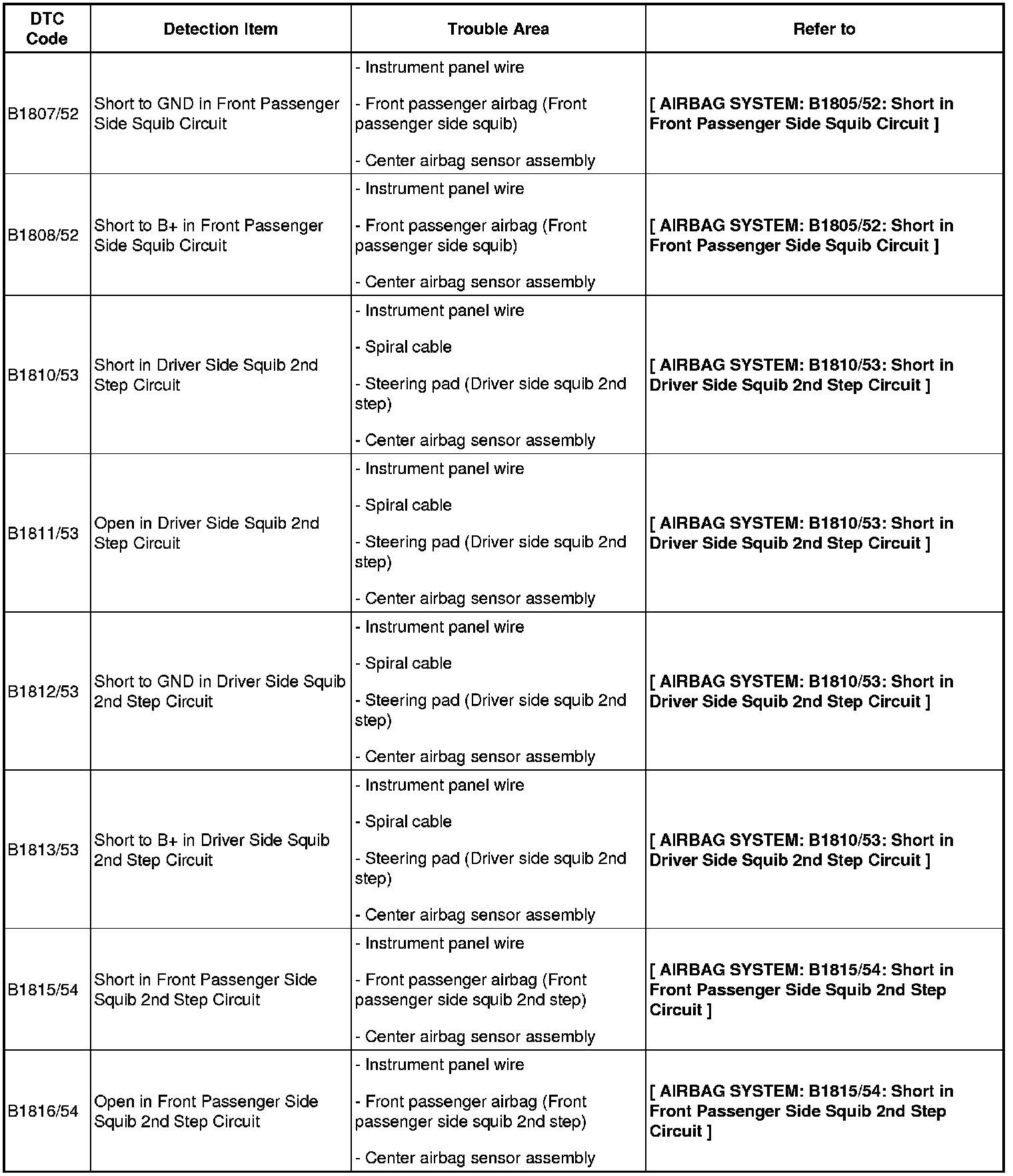

B1807/52-B1816/54:

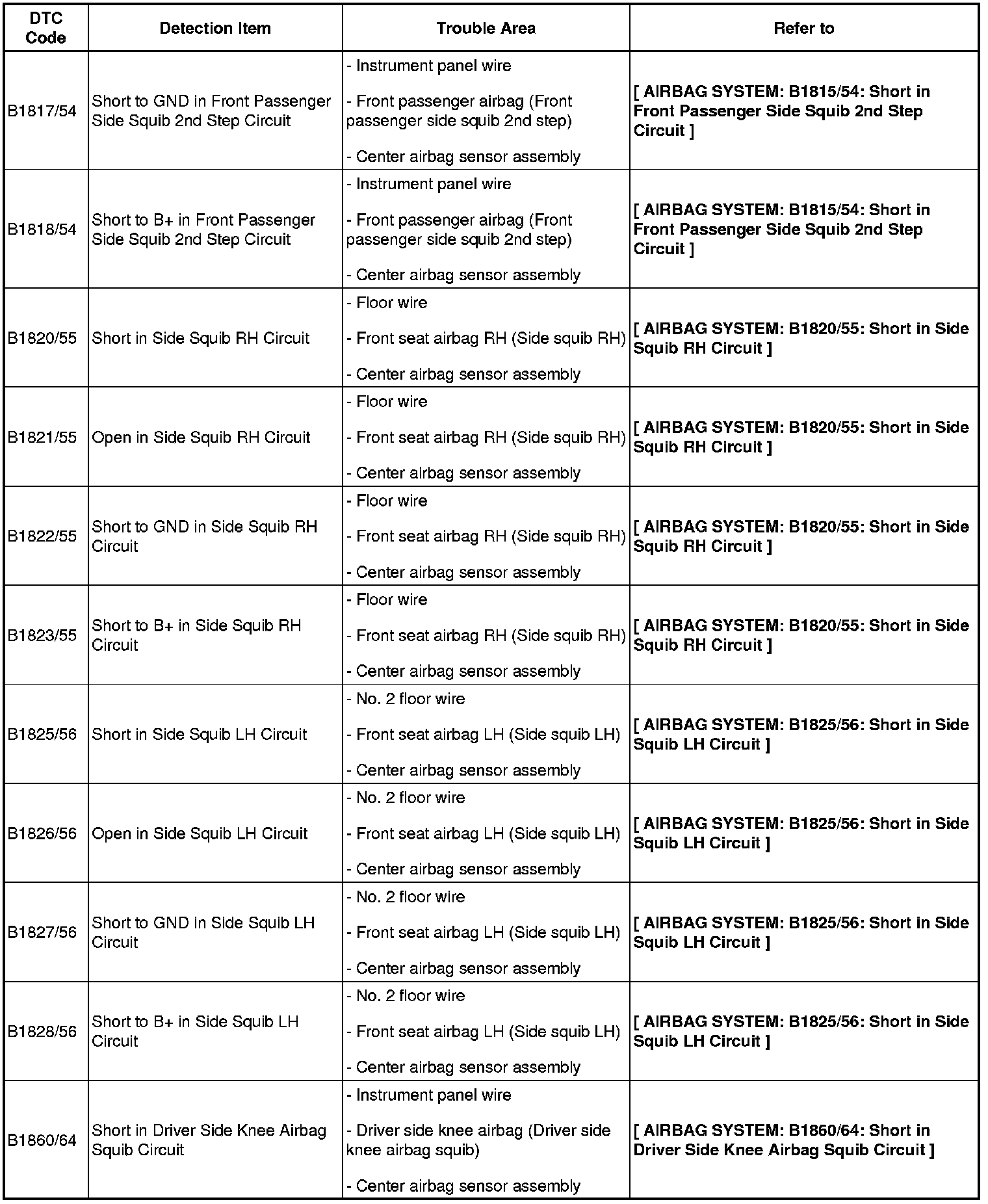

B1817/54-B1860/64:

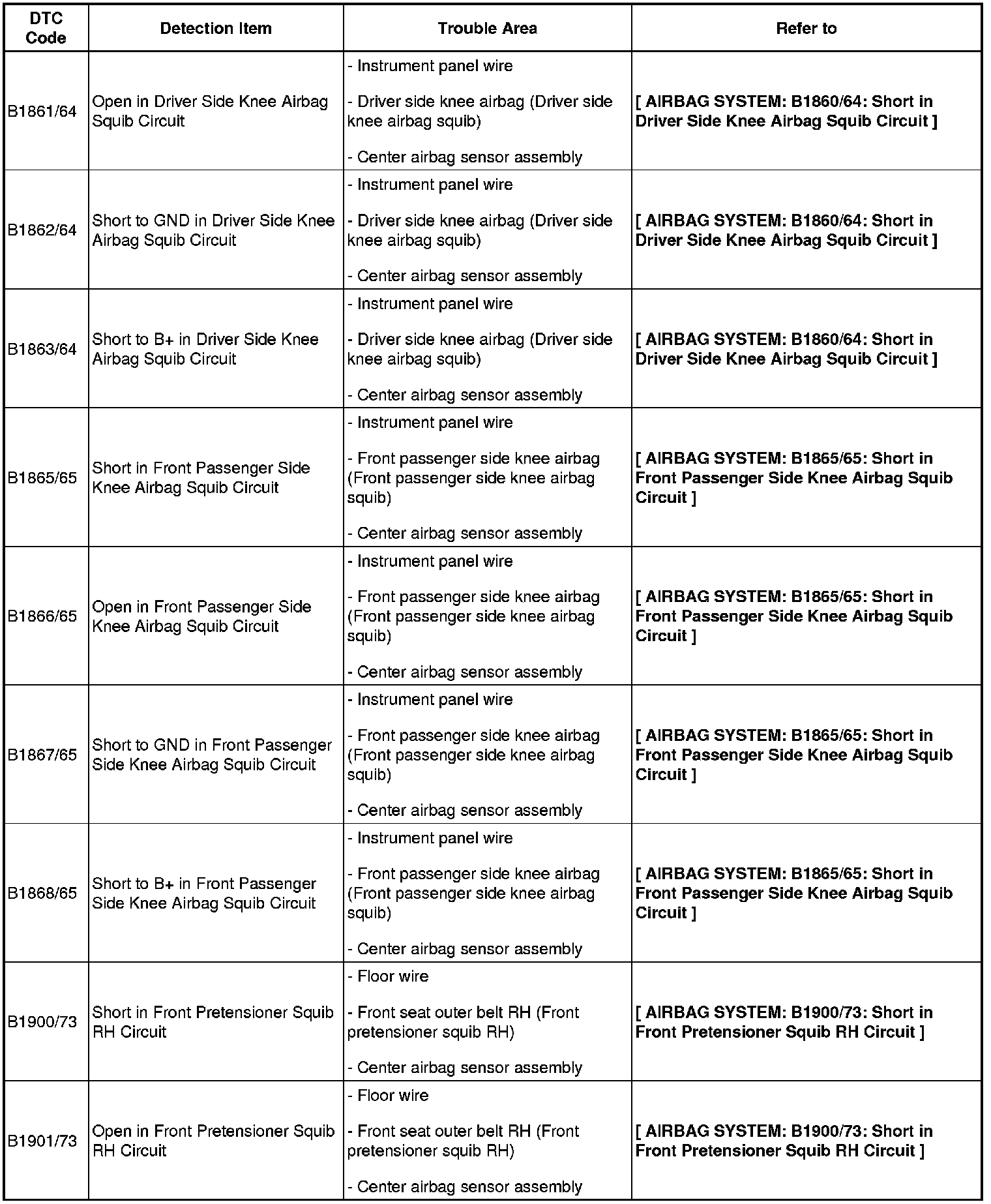

B1861/64-B1901/73:

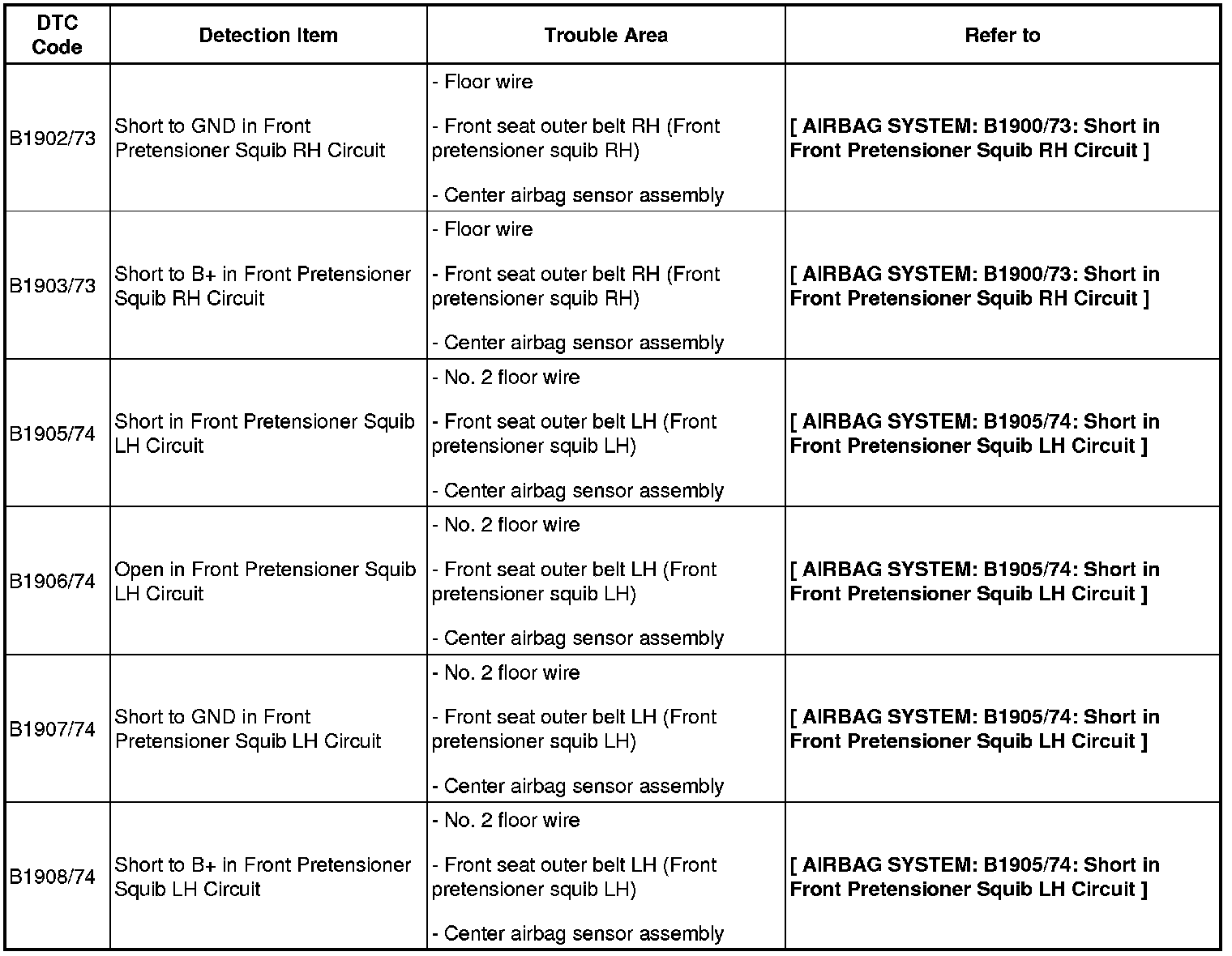

B1902/73-B1908/74:
