BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1369/26: Translate ECU Malfunction

DTC C1369/26 - Translate ECU Malfunction

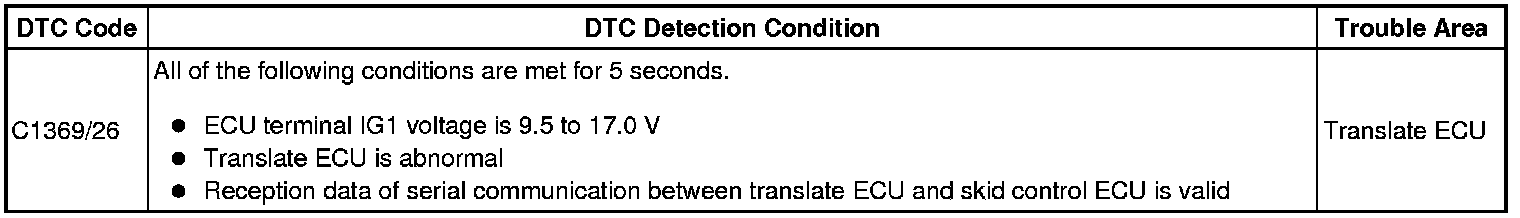

DESCRIPTION





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR VSC
(a) Turn the ignition switch ON.
(b) Check that the VSC OFF indicator light turns on.
(c) Check for DTCs.

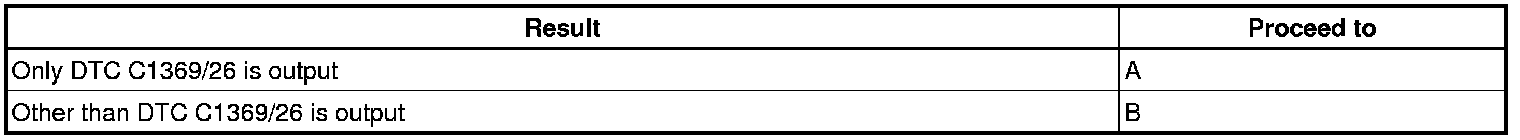

Result:





B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC
A -- REPLACE TRANSLATE ECU
