B2620

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2620: ECU Power Source Circuit Malfunction

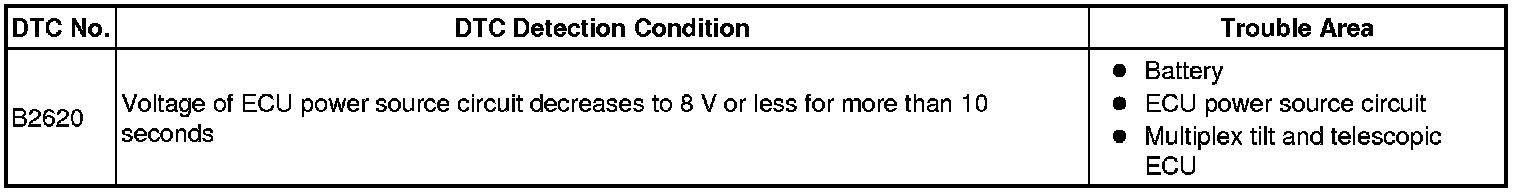

DTC B2620 - ECU Power Source Circuit Malfunction

DESCRIPTION

The ECU power source circuit supplies positive (+) battery voltage to the multiplex tilt and telescopic ECU.

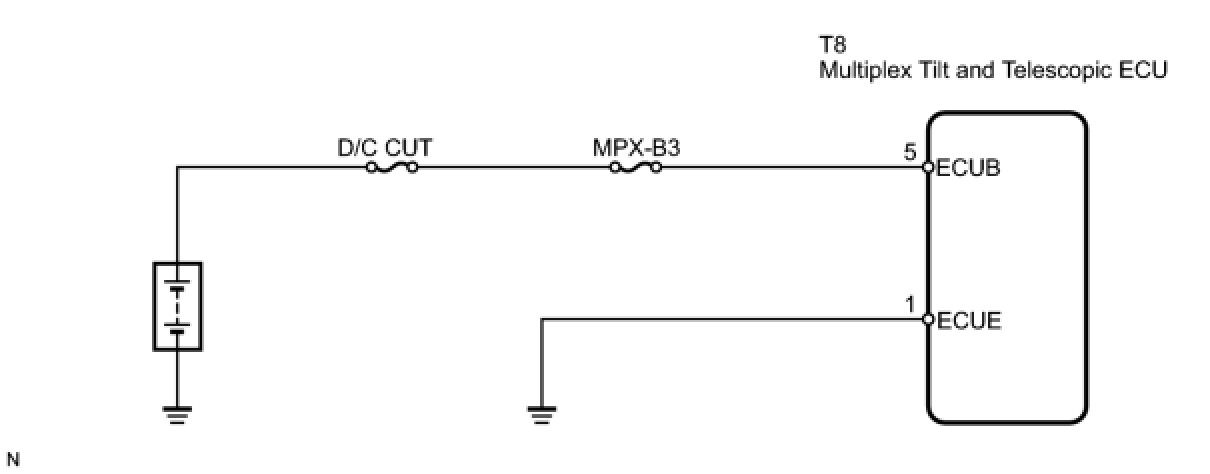

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (MPX-B3, D/C CUT)
(a) Remove the MPX-B3 fuse from the passenger side junction block.
(b) Remove the D/C CUT fuse from the engine room No. 1 relay block.
(c) Measure the resistance of the fuse.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
2. CHECK WIRE HARNESS (ECU - BATTERY AND BODY GROUND)

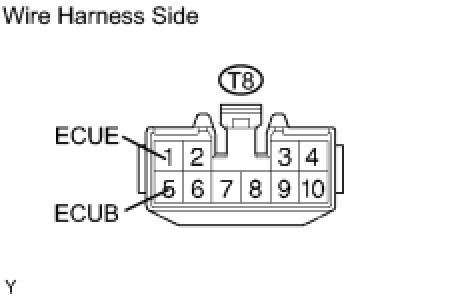

(a) Disconnect the T8 ECU connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage:





(c) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU
