B2416

LIGHTING: LIGHTING SYSTEM: B2416: Height Control Sensor Malfunction

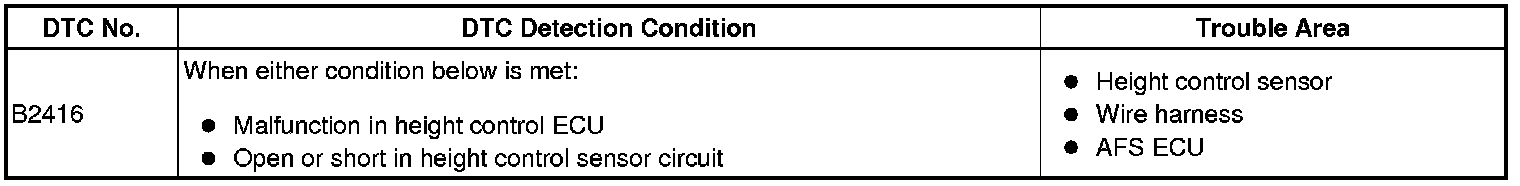

DTC B2416 - Height Control Sensor Malfunction

DESCRIPTION

The AFS ECU receives signals regarding the height of the front / rear of the vehicle from the height control sensors.

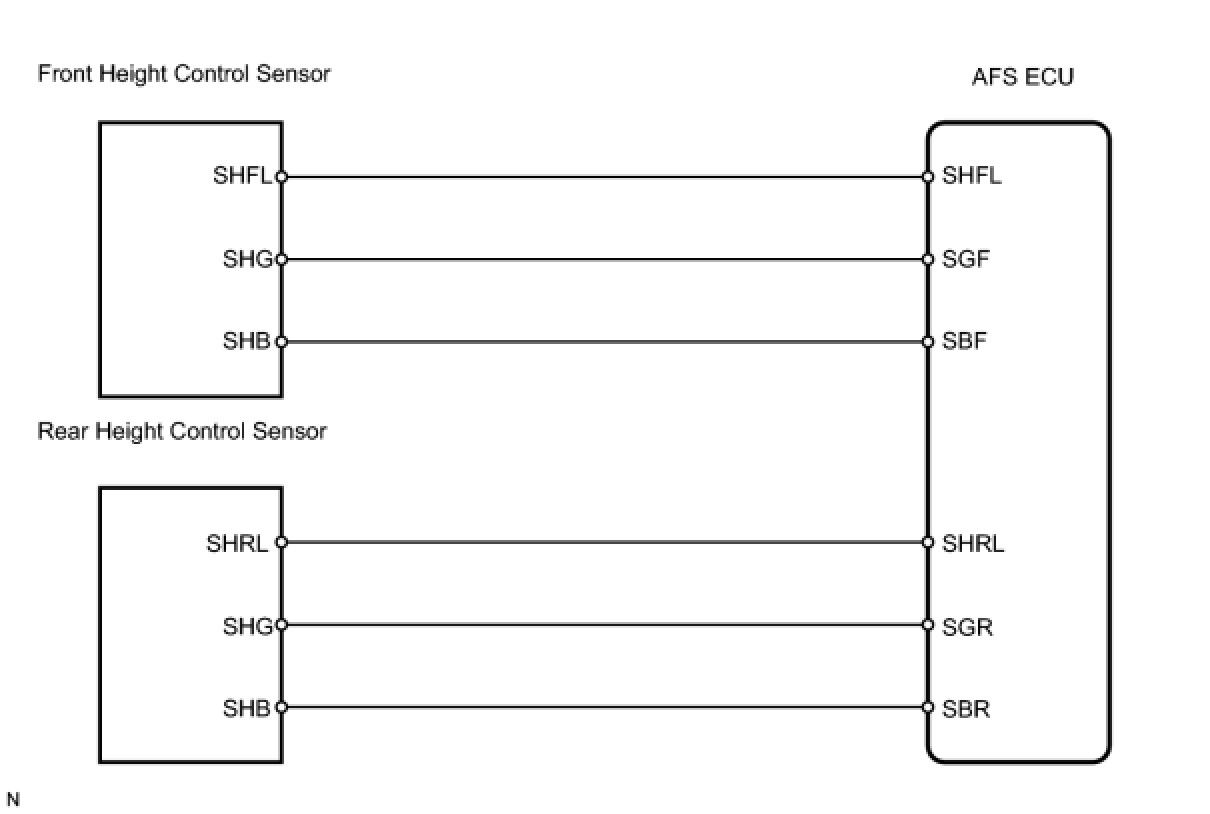

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

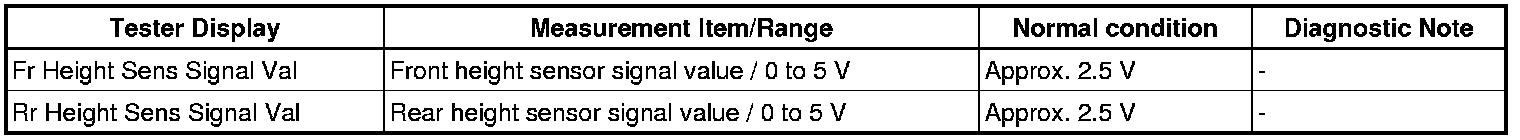

1. READ VALUE USING TECHSTREAM (HEIGHT SENSOR)
(a) Check the DATA LIST for proper functioning of the height sensor.

AFS





OK:
Condition value will be displayed.
OK -- REPLACE AFS ECU
NG -- Continue to next step.

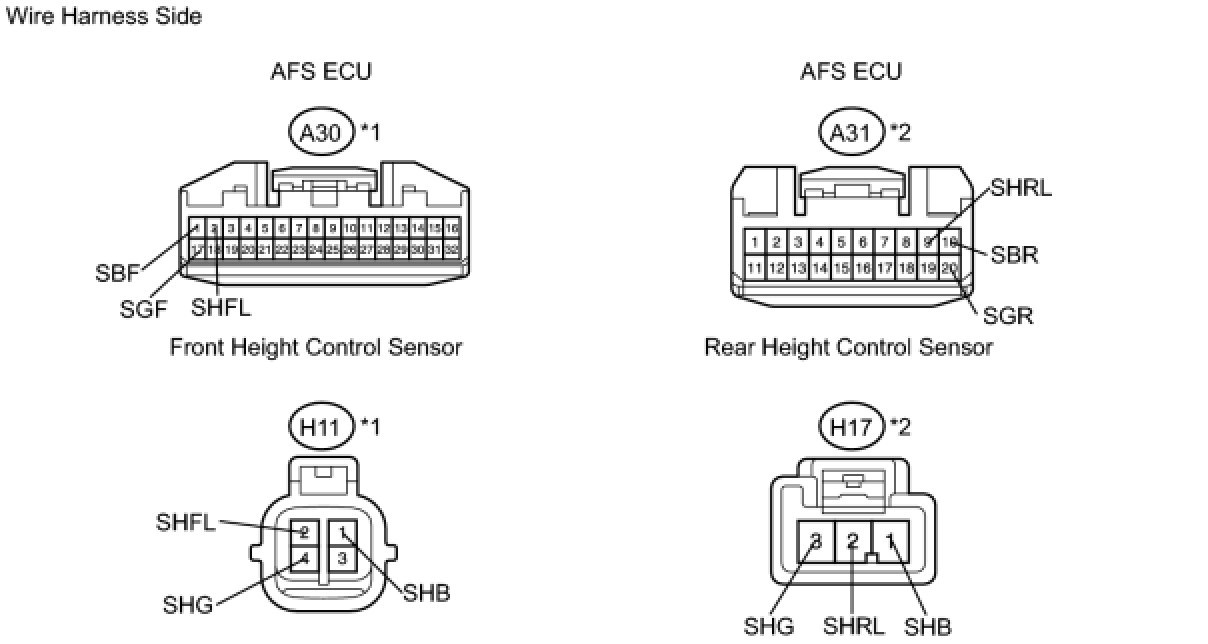

2. CHECK WIRE HARNESS (ECU - SENSOR)




(a) Disconnect the A30*1 or A31*2 ECU connector.
(b) Disconnect the H11*1 or H17*2 sensor connector.
HINT:
*1: Front
*2: Rear
(c) Measure the resistance of the wire harness side connectors.

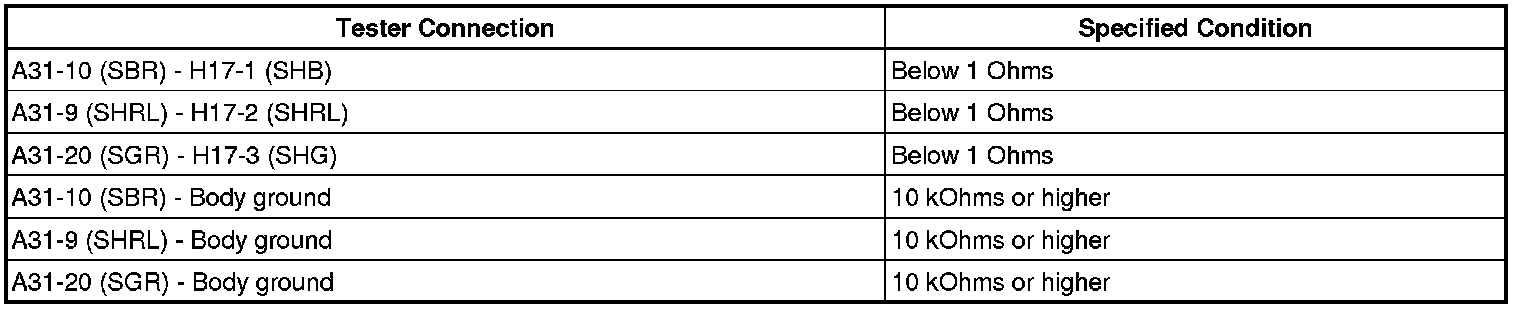

Standard resistance:
Front





Rear





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
3. INSPECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY




(a) Connect 3 dry cell batteries (1.5 V) in series.
(b) Connect the dry cell battery positive (+) terminal to terminal 1 (SHB) and the negative one to terminal 4 (SHG) to apply the voltage of 4.5 V between terminals 1 (SHB) and 4 (SHG).
(c) While slowly moving the link up and down with the voltage being applied, measure the voltage between terminals 2 (SHFL) and 4 (SHG).

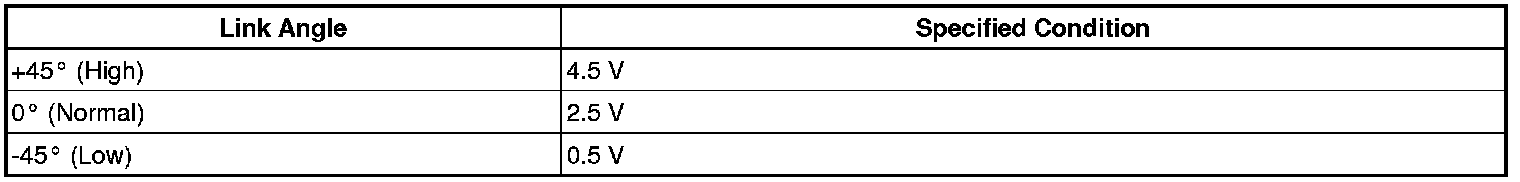

Standard voltage:






NG -- REPLACE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
OK -- Continue to next step.

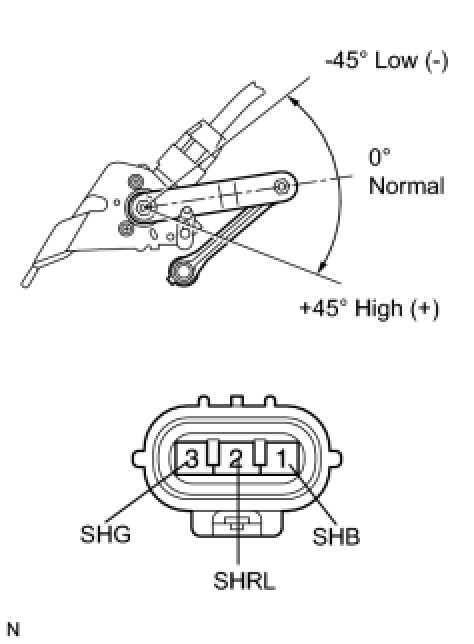

4. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY




(a) Connect 3 dry cell batteries (1.5 V) in series.
(b) Connect the dry cell battery positive (+) terminal to terminal 3 (SHB) and the negative one to terminal 1 (SHG) to apply the voltage of 4.5 V between terminals 3 (SHB) and 1 (SHG).
(c) While slowly moving the link up and down with the voltage being applied, measure the voltage between terminals 2 (SHRL) and 1 (SHG).
Standard voltage:






NG -- REPLACE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
OK -- REPLACE AFS ECU
