B1231
WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: B1231: Jam Protection Limit Switch Circuit on Driver Door
DTC B1231 - Jam Protection Limit Switch Circuit on Driver Door
DTC B1232 - Jam Protection Pulse Switch Circuit on Driver Door

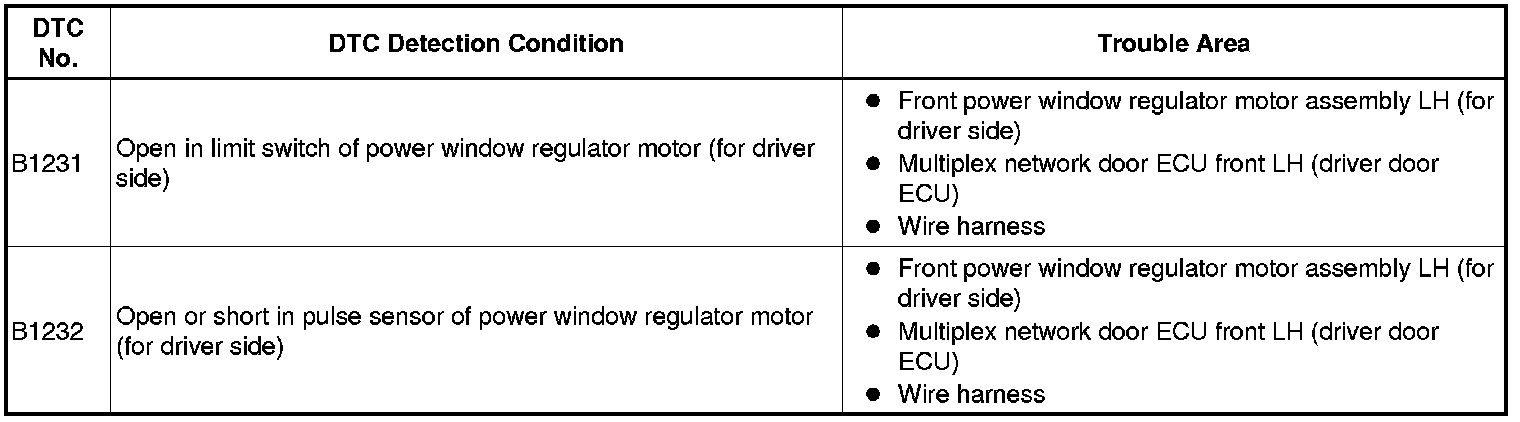

DESCRIPTION
These DTCs are output when the driver door power window regulator motor circuit is malfunctioning.

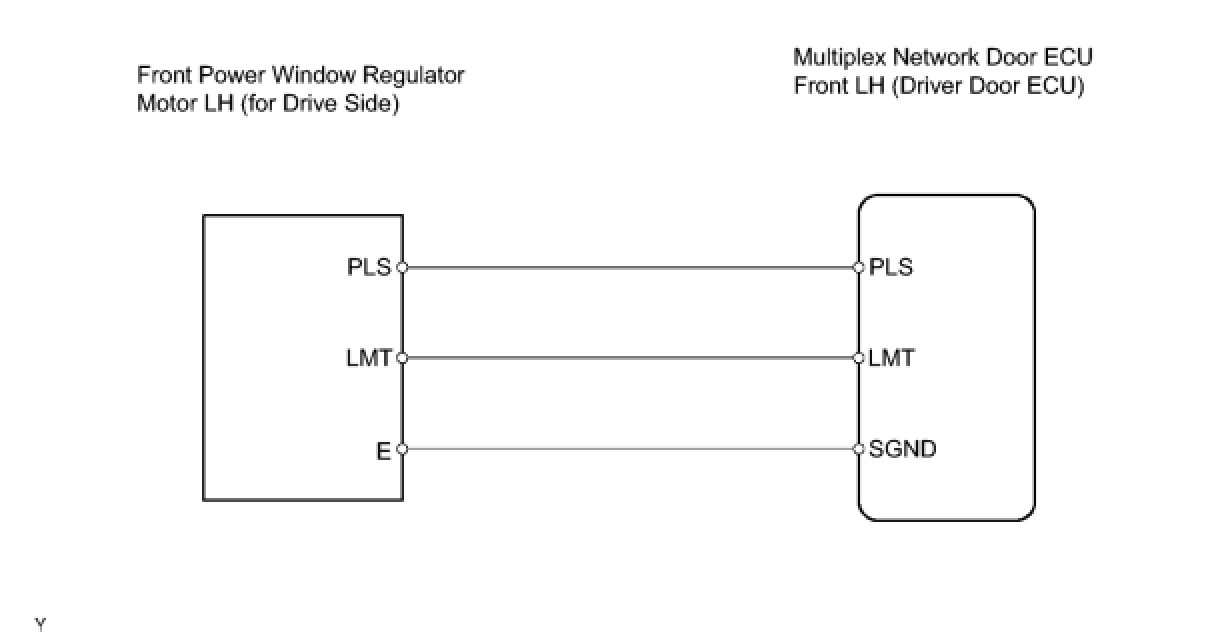

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK POWER WINDOW OPERATION
(a) Lower the driver door power window from the fully closed position to the fully open position. Check if the DTC is erased.
Result
HINT: If the DTC is erased, it is possible that the multiplex network door ECU front LH incorrectly detected this DTC previously.
B -- END
A -- Continue to next step.
2. RESET POWER WINDOW REGULATOR MOTOR
(a) Reset the power window regulator motor Initialization.
(b) Check if the power window AUTO UP / DOWN function operates normally.
OK:
AUTO UP / DOWN function operates normally.
OK -- END
NG -- Continue to next step.
3. READ VALUE USING TECHSTREAM (LIMIT SWITCH)

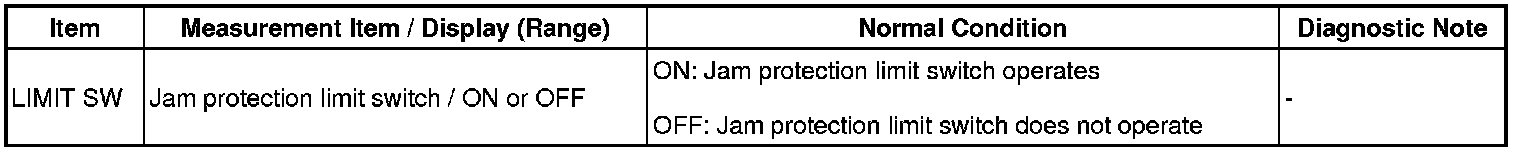

(a) Check the Data List for proper functioning of the limit switch.
Multiplex network door ECU front LH
OK:
ON (jam protection limit switch operates) appears on screen.
OK -- REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH
NG -- Continue to next step.

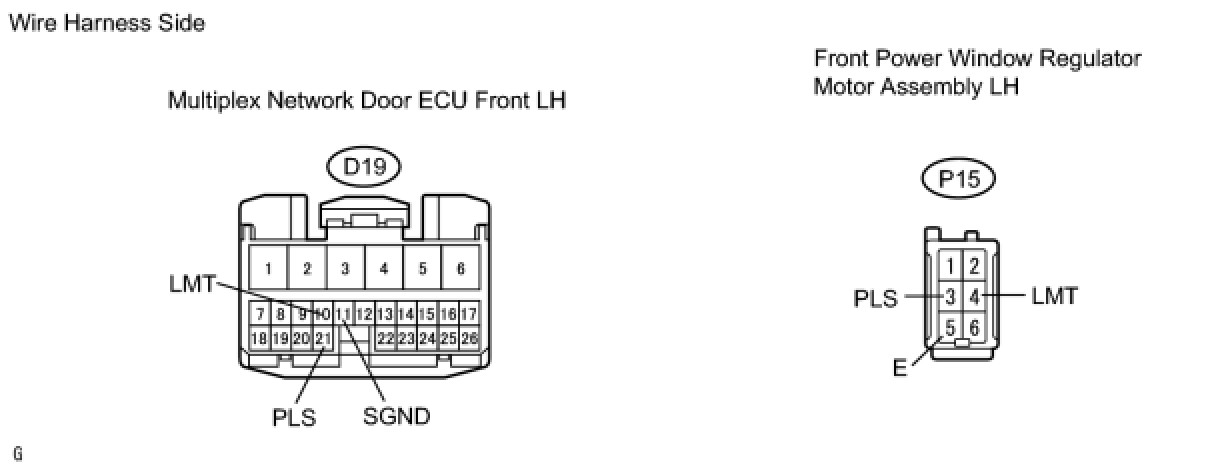

4. CHECK WIRE HARNESS (DOOR ECU FRONT LH - POWER WINDOW MOTOR LH)
(a) Disconnect the D19 ECU connector.
(b) Disconnect the P15 motor connector.
(c) Measure the resistance of the wire harness side connectors.

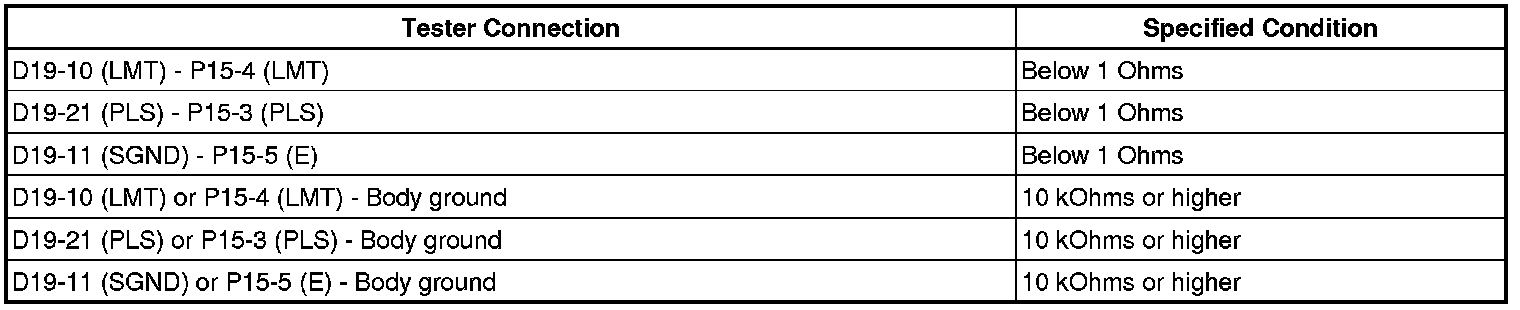

Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
5. REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH
(a) Temporarily replace the multiplex network door ECU front LH with a new or normally functioning one.
(b) Check that a DTC is not output.
OK:
DTC is not output.
NG -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
OK -- END (ECU DEFECTIVE)
