B1211

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: B1211: Driver Door ECU Communication Stop

DTC B1211 - Driver Door ECU Communication Stop

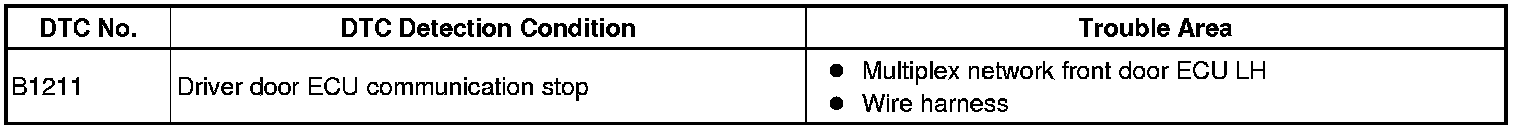

DESCRIPTION

This DTC is detected when communication between the multiplex network front door ECU LH and network gateway ECU stops for more than 10 seconds.

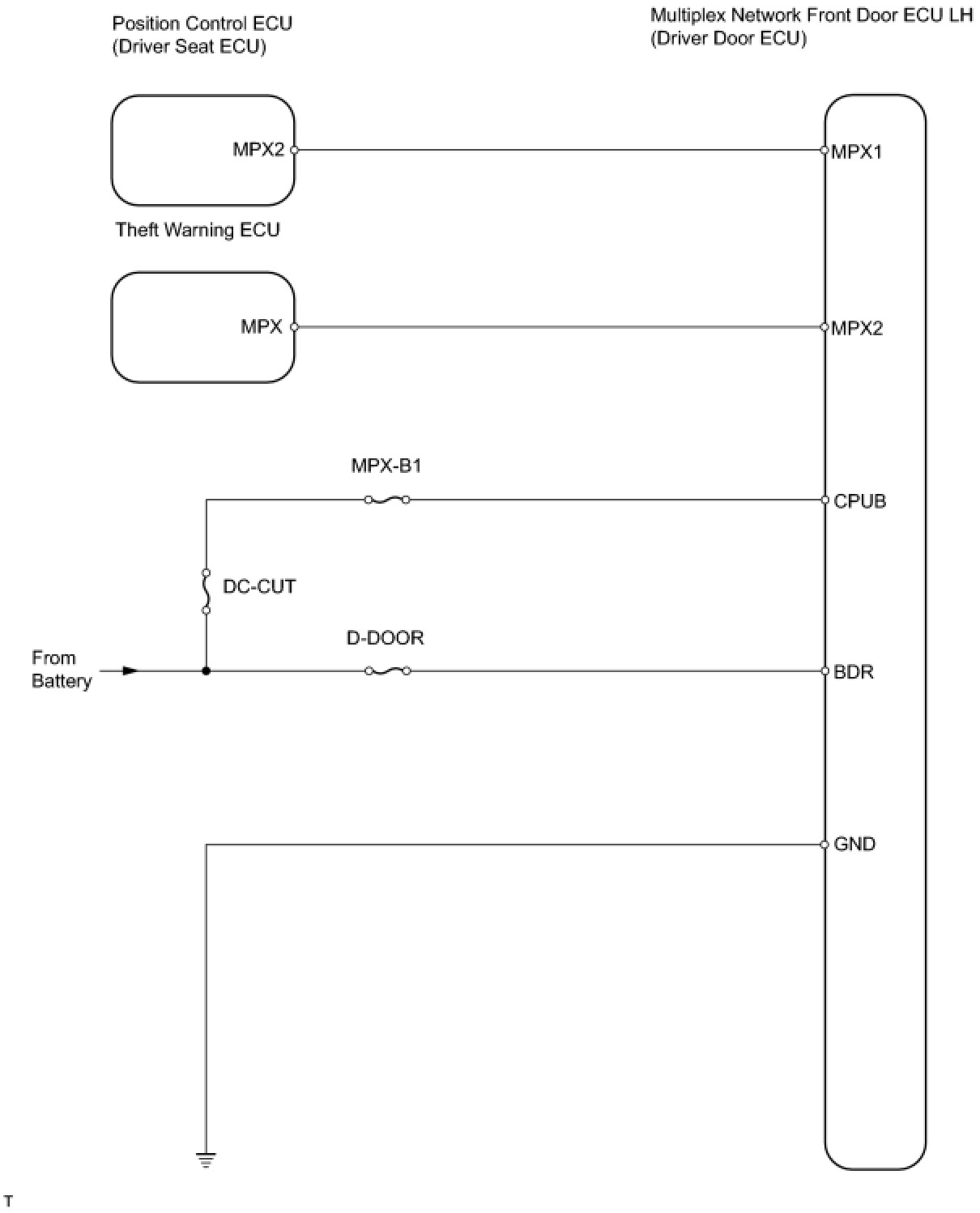

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DOOR WARNING LIGHT (OPERATION)
(a) Open the driver door and check that the door warning light (built into combination meter) lights up.
OK:
Door warning light lights up.
OK -- REPLACE MULTIPLEX NETWORK FRONT DOOR ECU LH
NG -- Continue to next step.
2. CHECK WIRE HARNESS (MULTIPLEX NETWORK FRONT DOOR ECU LH - BATTERY AND BODY GROUND)




(a) Disconnect the D19 ECU connector.
(b) Measure the voltage and resistance of the wire harness side connector.
Standard voltage:






Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
3. CHECK RESISTANCE OF COMMUNICATION LINE

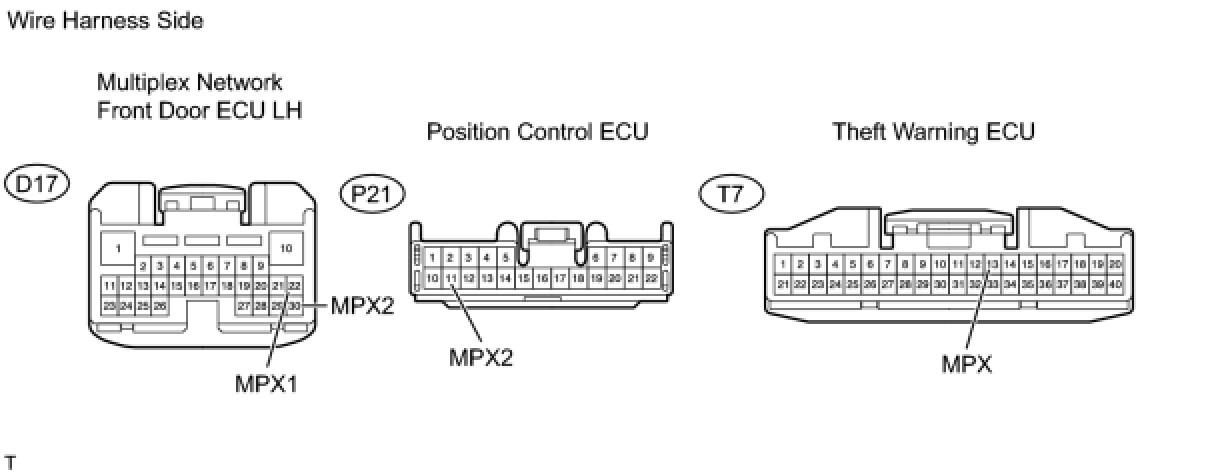

(a) Disconnect the D17, P21 and T7 ECU connectors.
(b) Measure the resistance of the wire harness side connectors.
Standard resistance:

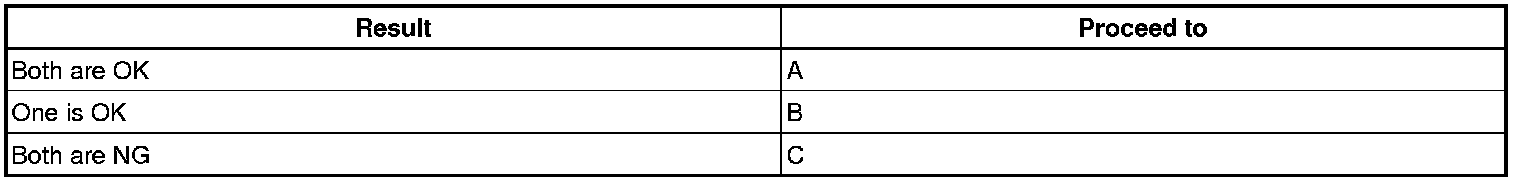

Result





C -- REPAIR OR REPLACE HARNESS AND CONNECTOR
B -- REPLACE MULTIPLEX NETWORK FRONT DOOR ECU LH AND REPAIR OR REPLACE HARNESS AND CONNECTOR
A -- REPLACE MULTIPLEX NETWORK FRONT DOOR ECU LH
