Part 4

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: DIAGNOSIS SYSTEM

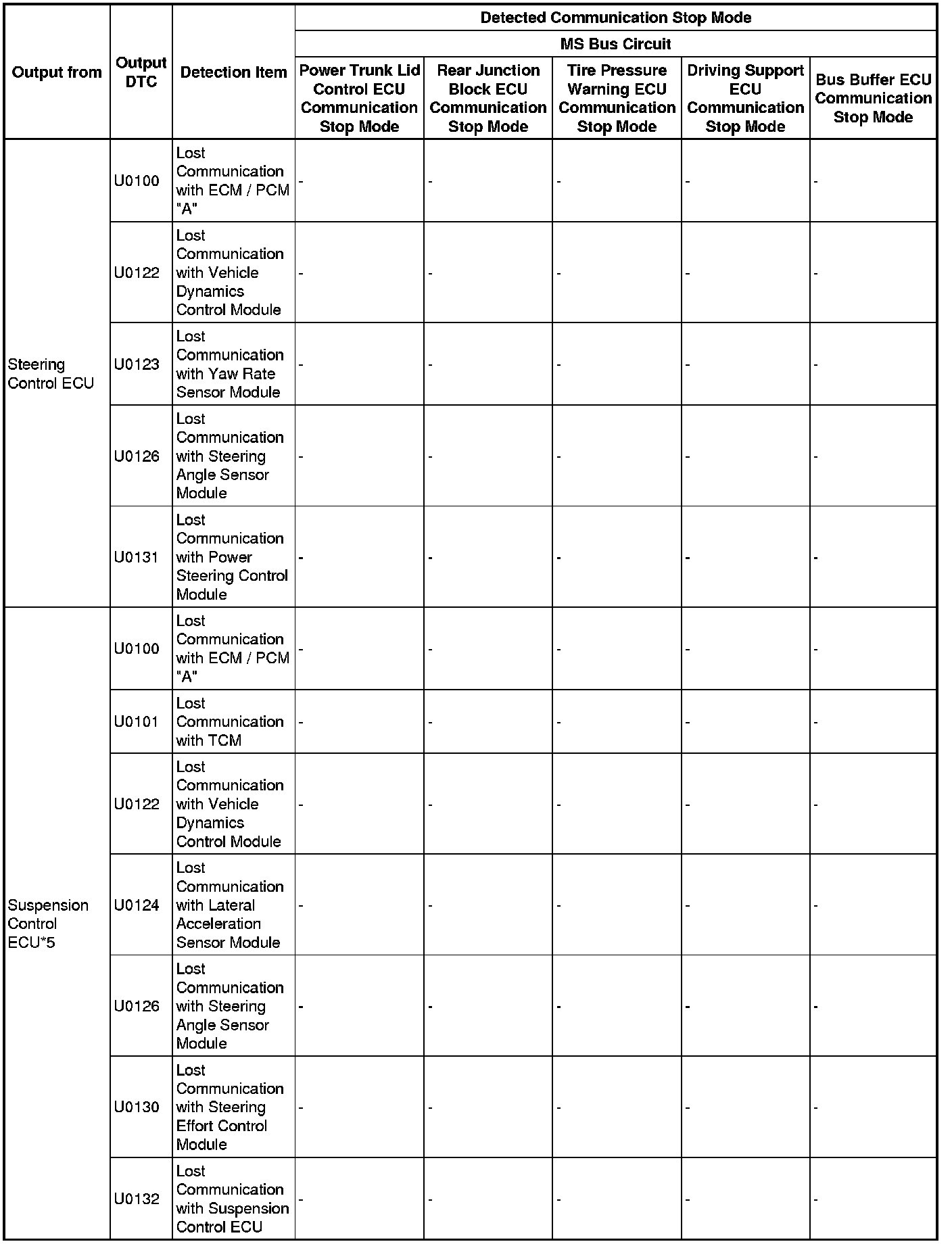

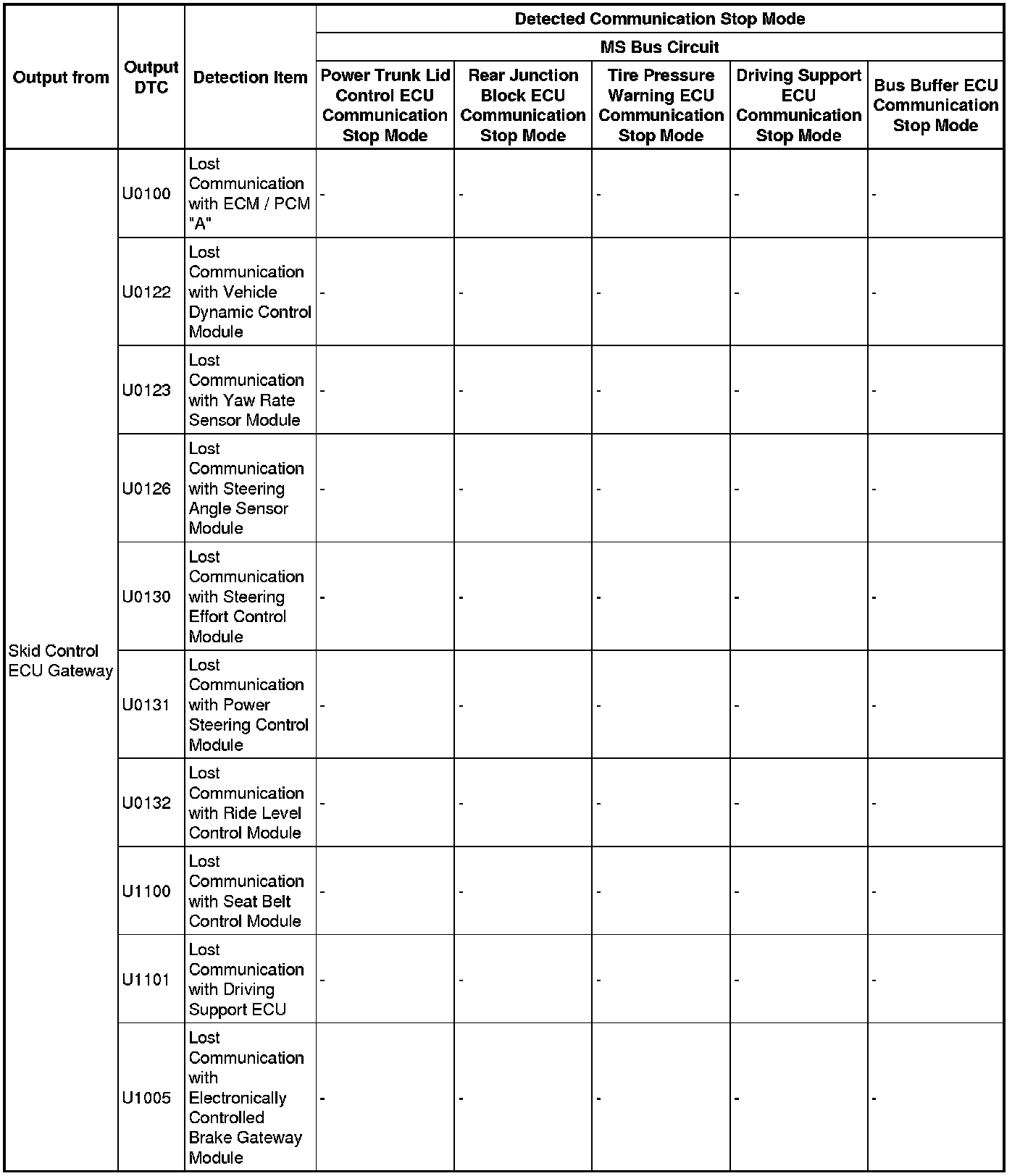

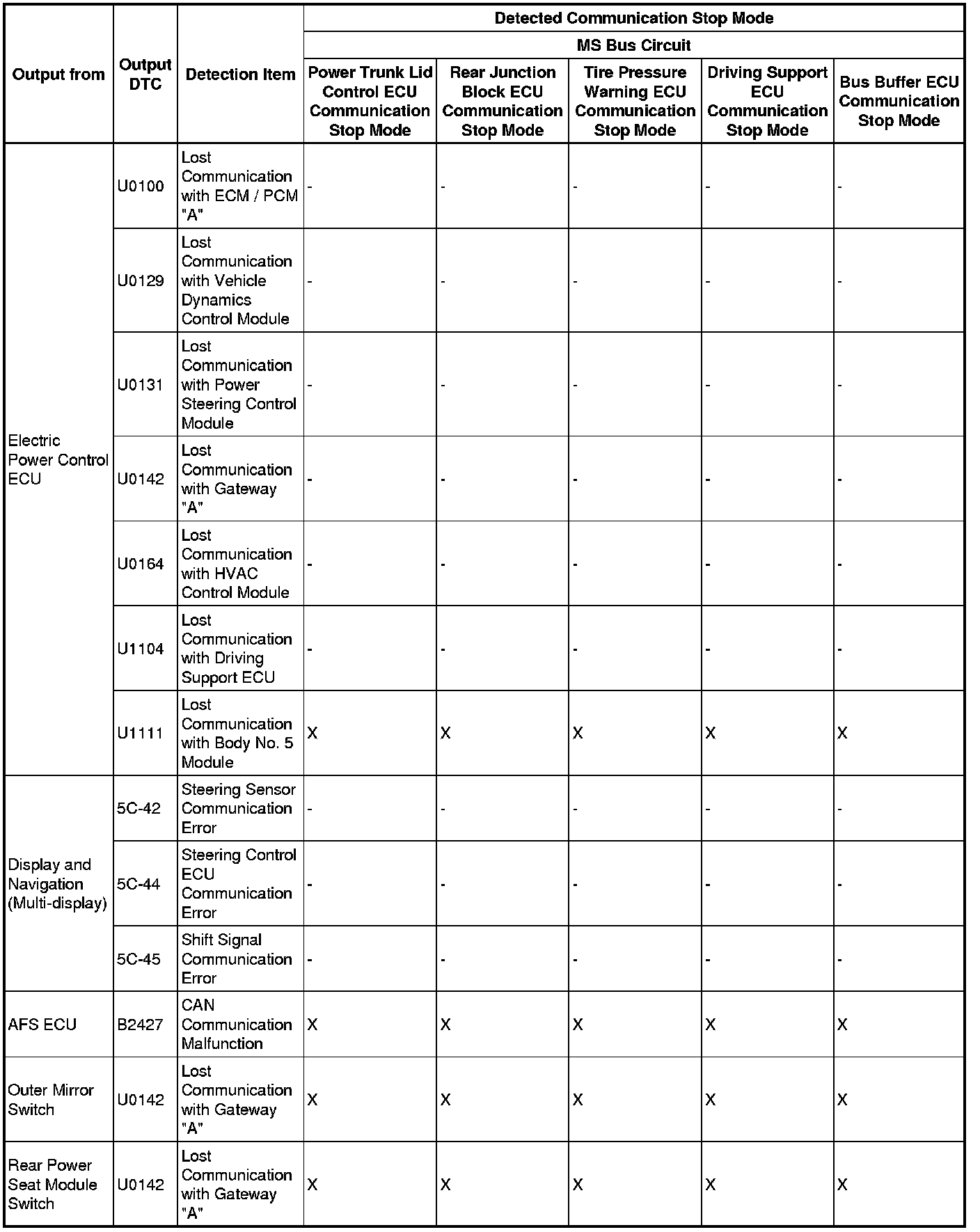

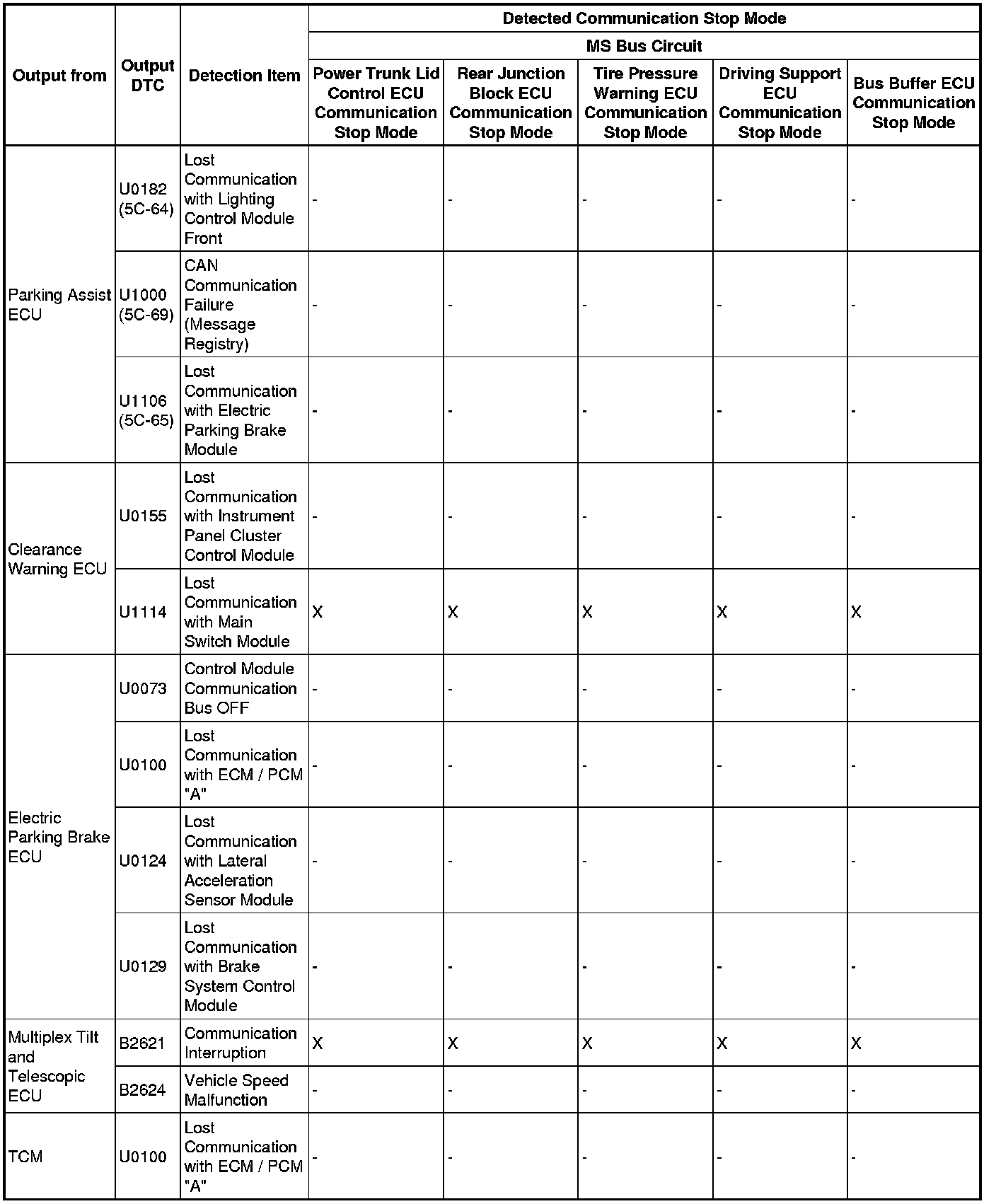

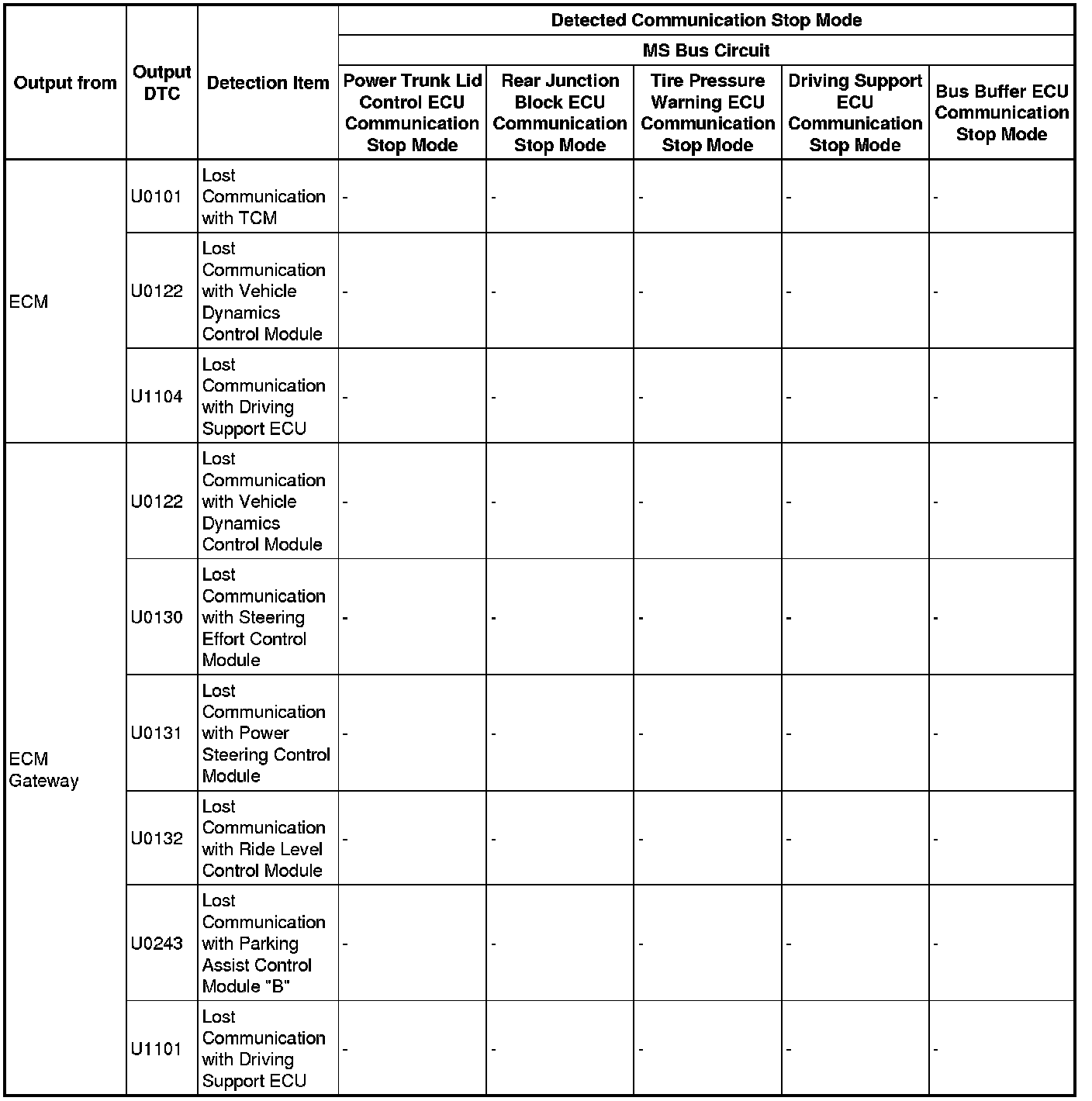

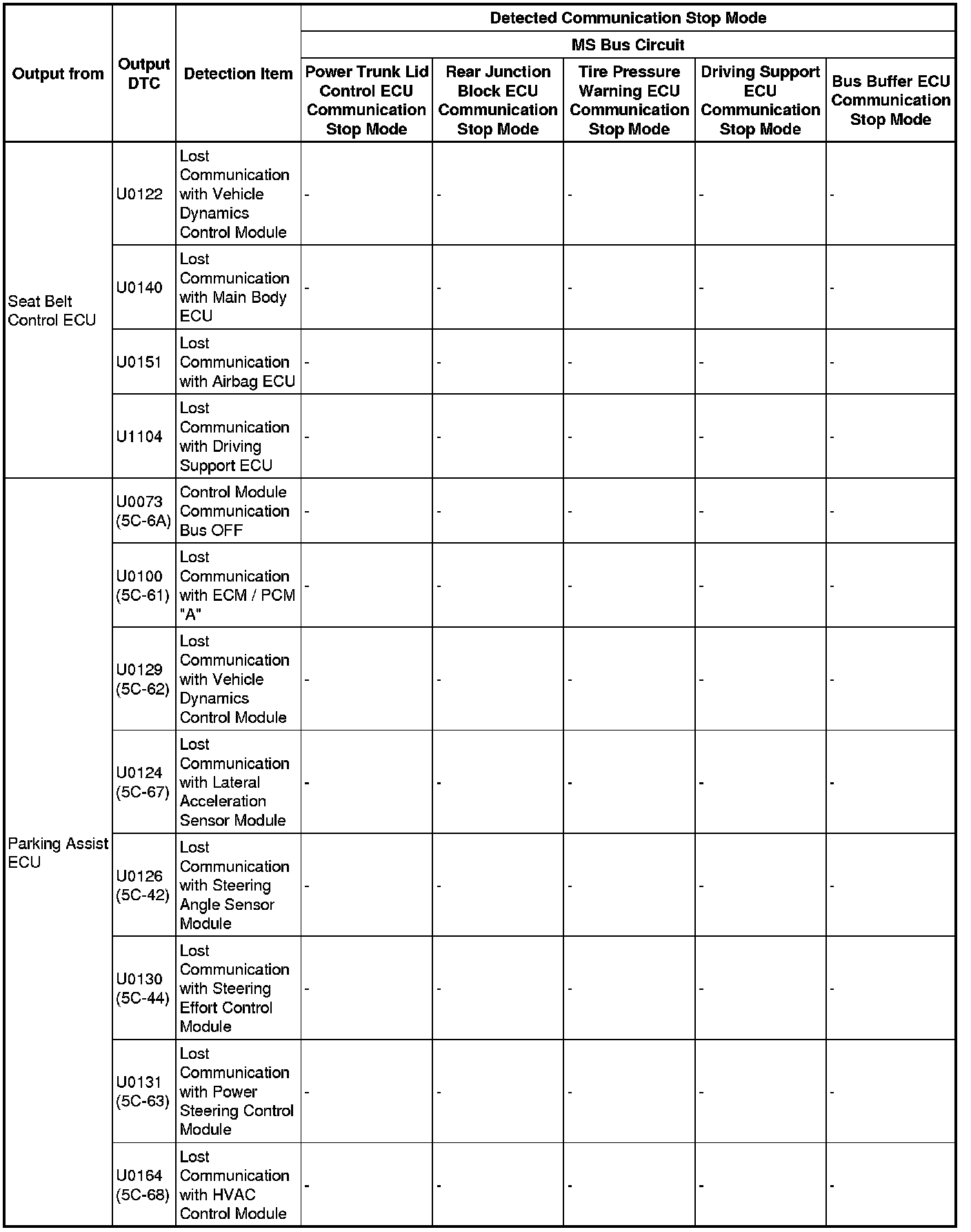

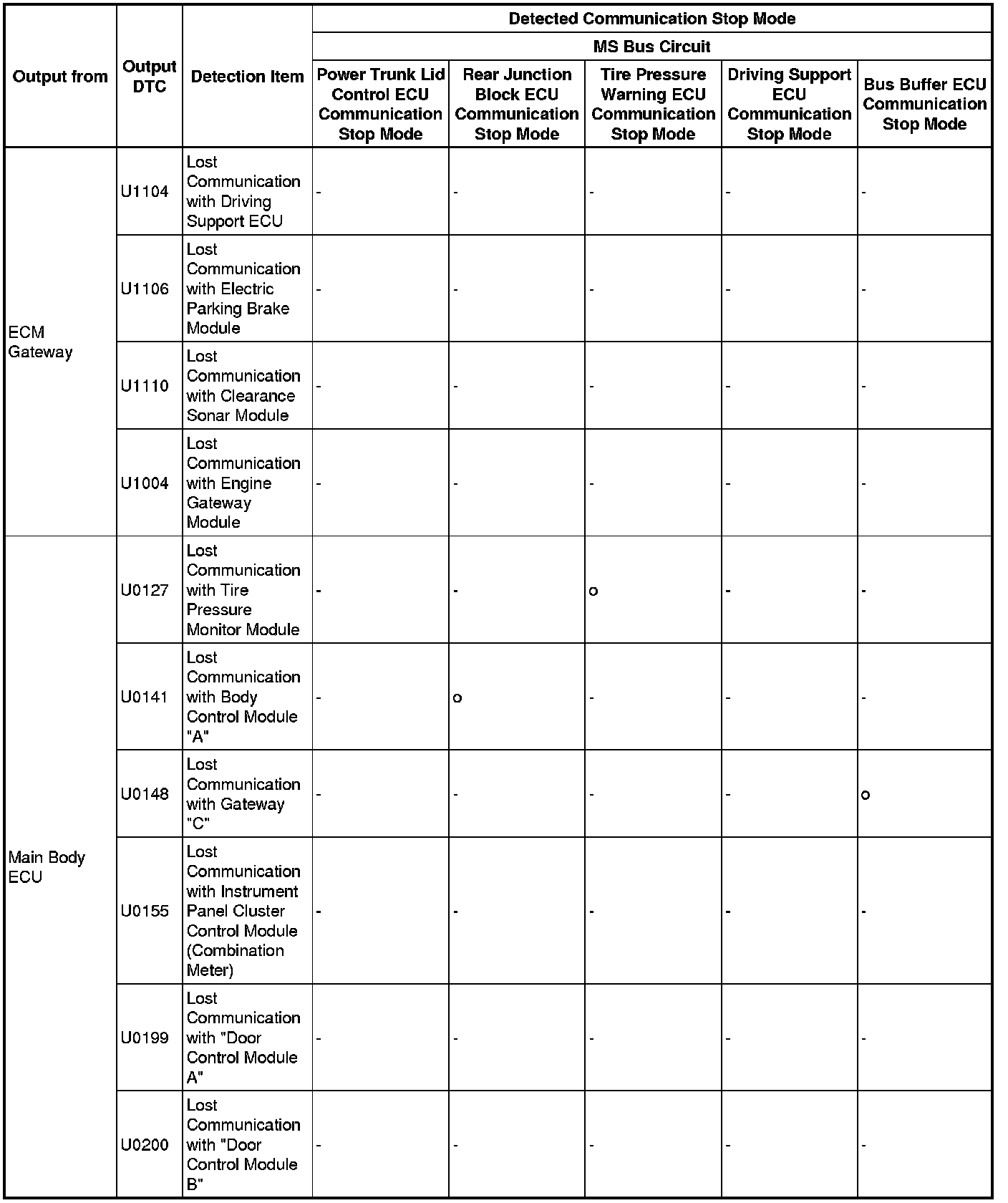

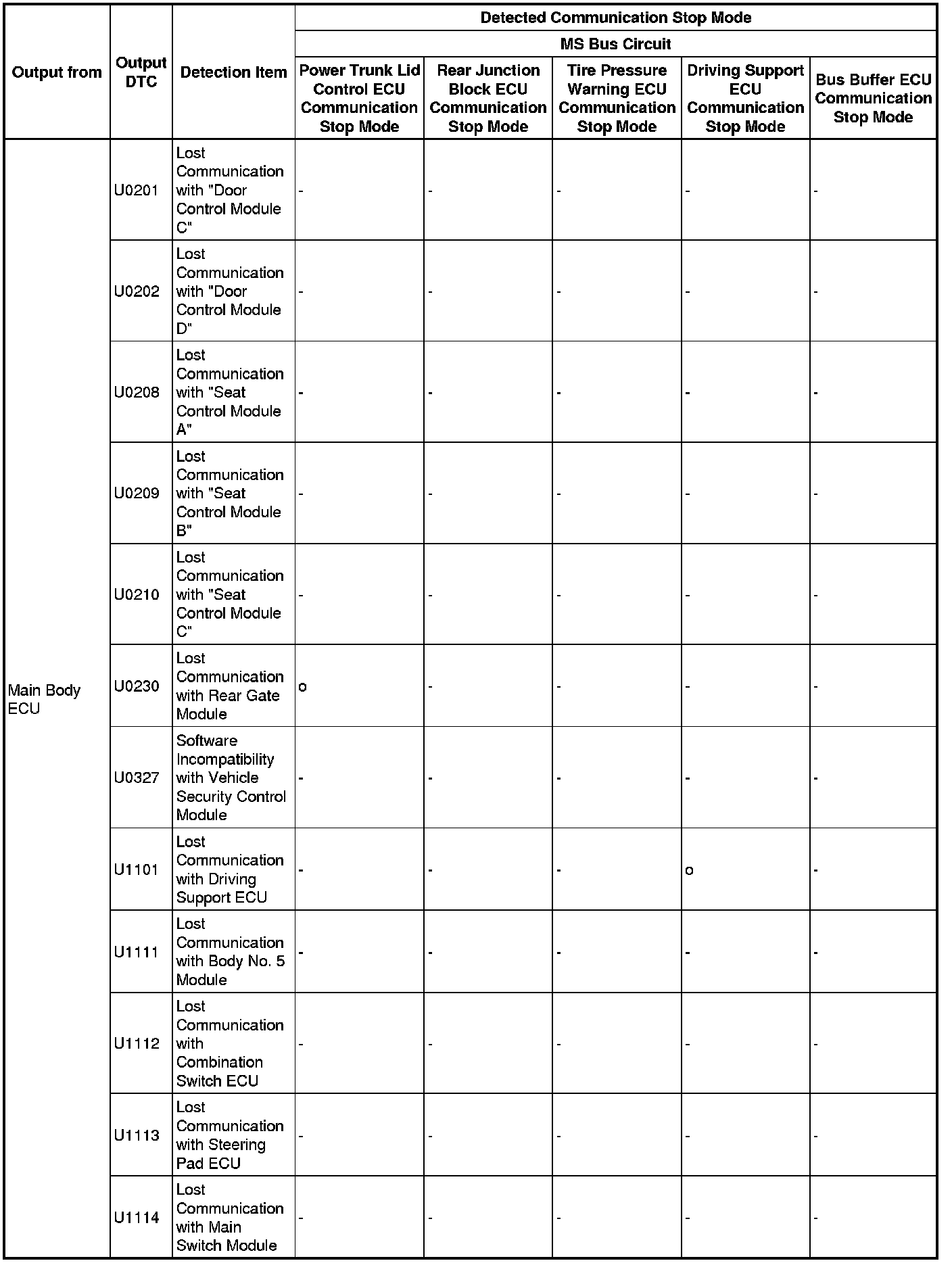

DIAGNOSIS SYSTEM (Continued)









































HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *5: Only present DTCs output.
