Electric Power Control System

POWER SOURCE / WIRING: ELECTRIC POWER CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

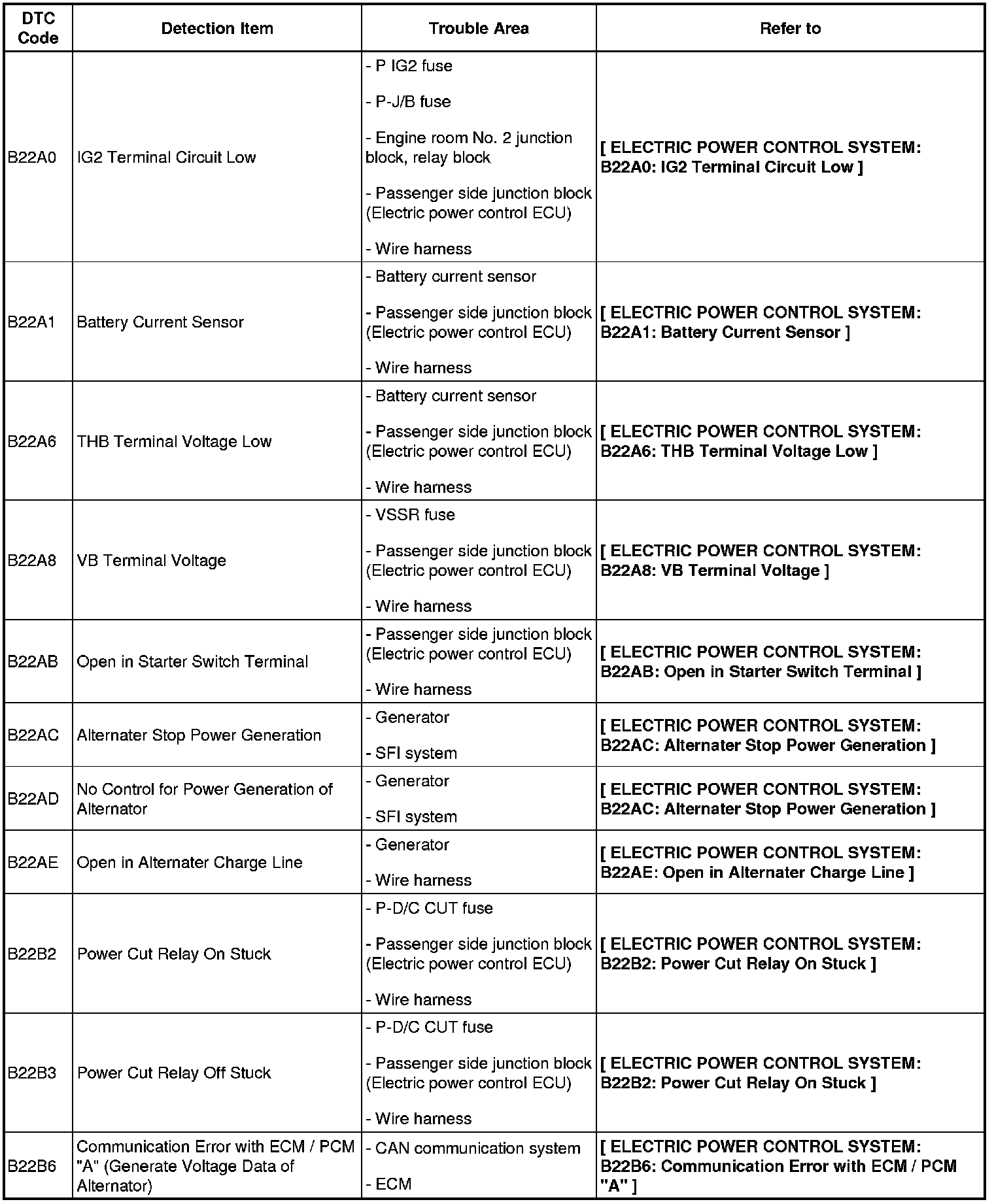

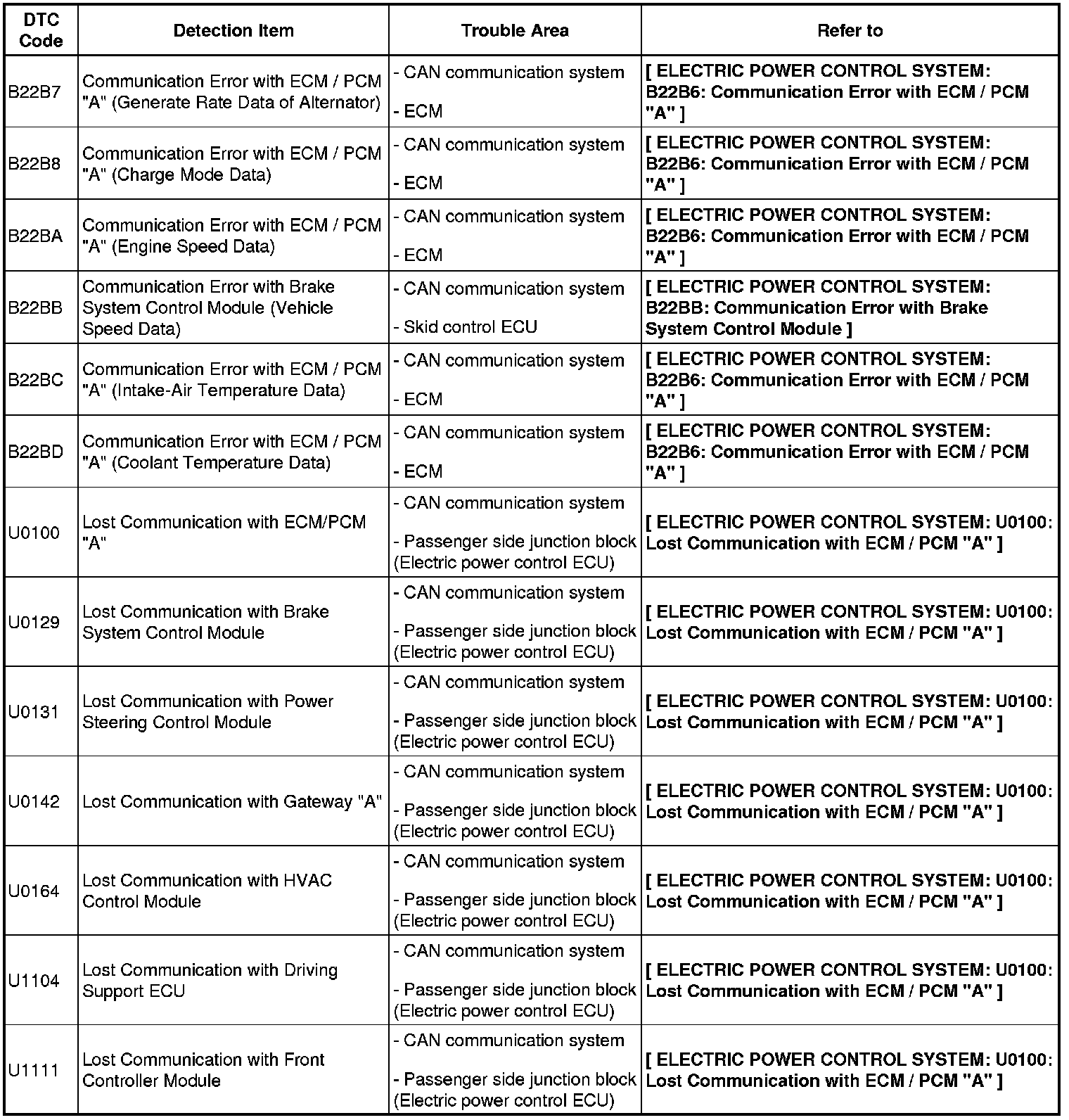

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
- Inspect the fuses and relays related to this system before inspecting the trouble areas below.

ELECTRIC POWER CONTROL ECU [Electric Power Control]
