Removal

WIPER AND WASHER: FRONT WASHER MOTOR: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE FRONT BUMPER COVER
(a) Remove the front bumper cover Removal.
4. REMOVE HEADLIGHT ASSEMBLY LH (W/ Headlight Cleaner System) Removal
5. REMOVE HEADLIGHT ASSEMBLY LH (W/O Headlight Cleaner System) Removal
6. DRAIN WASHER FLUID

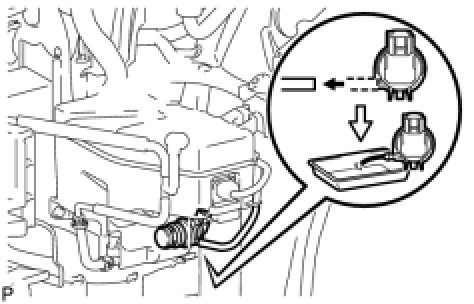

(a) Remove the washer hose from the windshield washer motor and pump, and drain the washer fluid.
7. REMOVE WASHER INLET SUB-ASSEMBLY

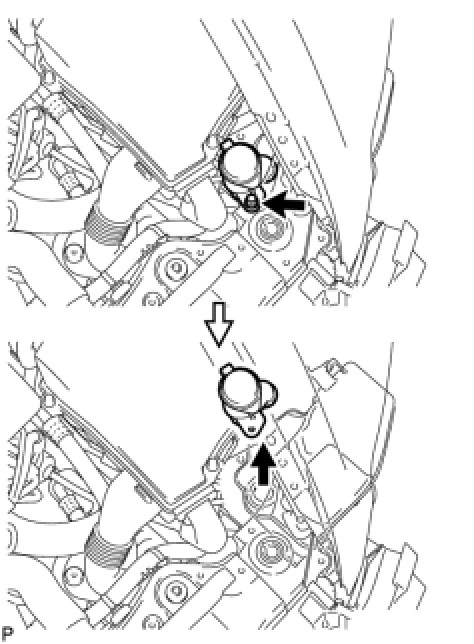

(a) Remove the bolt and washer inlet.
8. REMOVE WINDSHIELD WASHER JAR ASSEMBLY
(a) W/O Headlight Cleaner System:
(1) Disconnect the 2 connectors.
(b) W/ Headlight Cleaner System:
(1) Disconnect the 4 connectors.

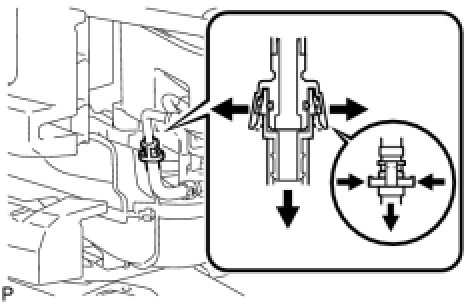

(2) Loosen the clip and disconnect the headlight cleaner hose.

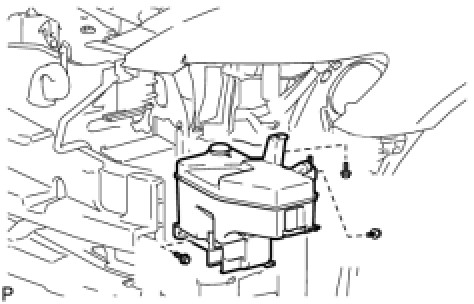

(c) Remove the 3 bolts. Then remove the windshield washer jar and pump.
9. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
(a) Remove the windshield washer motor and pump.
10. REMOVE HEADLIGHT CLEANER MOTOR PUMP ASSEMBLY (W/ Headlight Cleaner System)
(a) Remove the headlight cleaner motor pump.
11. REMOVE HEADLIGHT CLEANER CONTROL RELAY (W/ Headlight Cleaner System)
(a) Remove the headlight cleaner control relay.
