WIPER AND WASHER: FRONT WASHER MOTOR: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT CLEANER CONTROL RELAY
(a) Install the headlight cleaner control relay.
2. INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY
(a) Install the headlight cleaner motor and pump.
3. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
(a) Install the windshield washer motor and pump.
4. INSTALL WINDSHIELD WASHER JAR ASSEMBLY





(a) Install the windshield washer jar and pump with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) W/O Headlight Cleaner System:
(1) Connect the 2 connectors.
(c) W/ Headlight Cleaner System:

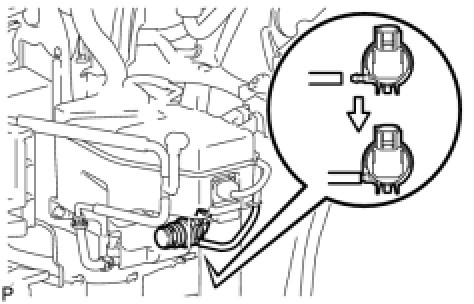

(1) Connect the headlight cleaner hose to the windshield washer jar and pump.
(2) Connect the 4 connectors.
5. INSTALL WASHER INLET SUB-ASSEMBLY

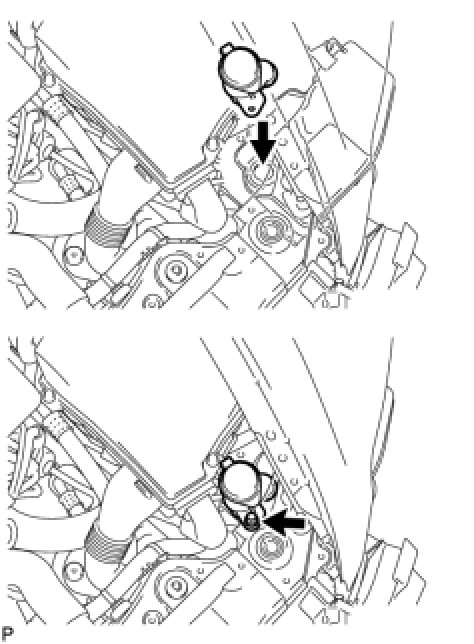

(a) Install the washer inlet with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
6. FILL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID

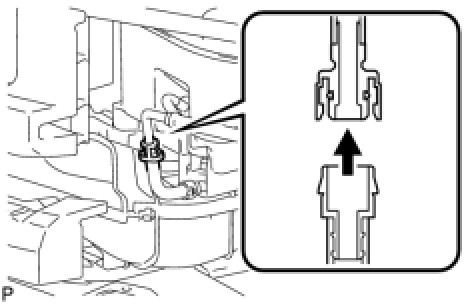

(a) Connect the washer hose to the windshield washer motor and pump, and fill the washer jar with washer fluid.
7. INSTALL HEADLIGHT ASSEMBLY LH (W/ Headlight Cleaner System) Installation
8. INSTALL HEADLIGHT ASSEMBLY LH (W/O Headlight Cleaner System) Installation
9. INSTALL FRONT BUMPER COVER
(a) Install the front bumper cover Installation.
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
12. PERFORM INITIALIZATION
Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

13. ADJUST HEADLIGHT ASSEMBLY LH
(a) Adjust the headlight Adjustments.
