Installation

WIPER AND WASHER: WIPER SWITCH: INSTALLATION

INSTALLATION

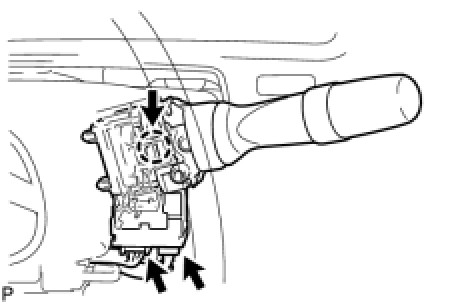

1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY





(a) Attach the claw and install the wiper switch.
(b) Connect the 2 connectors.
2. INSTALL STEERING COLUMN COVER





(a) Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.
(b) Attach the claw to install the upper steering column cover.
(c) Attach the 2 claws to install the lower steering column cover.
NOTE:
Do not damage the tilt and telescopic switch.





(d) Using a screwdriver, while turning the steering wheel to the right and left, install the 3 screws.
