Removal

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR COVER: REMOVAL

REMOVAL

1. REMOVE HEADLIGHT CLEANER ACTUATOR COVER





(a) Pull out the headlight cleaner actuator cover while making sure that the headlight cleaner actuator cover and holder do not separate from the headlight washer actuator, and hold the headlight washer actuator in place.
- If the holder separates from the headlight washer actuator, replace the headlight washer actuator.
- Hold the headlight washer actuator without touching the nozzle.

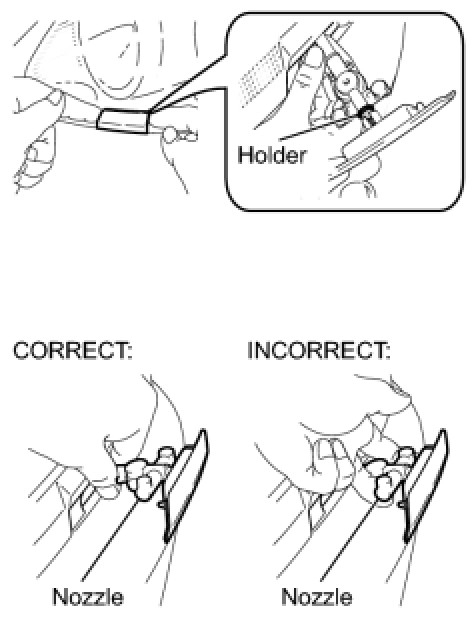

(b) Using nippers, cut off the headlight cleaner actuator cover as shown in the illustration, and remove it.
- After removing the headlight cleaner actuator cover, make sure to hold the headlight washer actuator in place until a new headlight cleaner actuator cover is installed.
- If the holder is damaged when the headlight cleaner actuator cover is cut off, replace the headlight washer actuator.
