Rear Door Sunshade System

INTERIOR: REAR DOOR SUNSHADE SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK REAR DOOR ECU LH

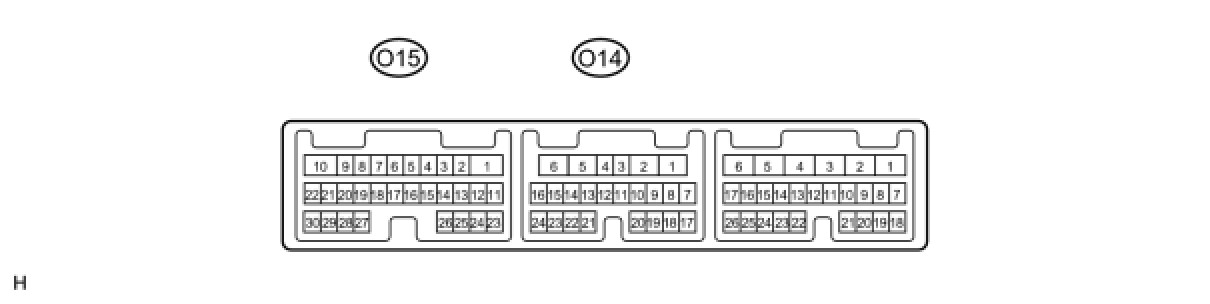

(a) Disconnect the O14 ECU connector.

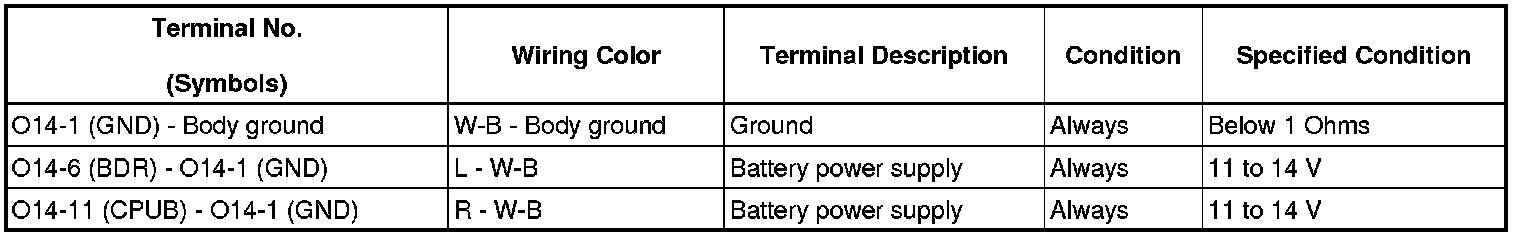

(b) Measure the voltage and resistance of the wire harness side connector.





- If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the O14 ECU connectors.

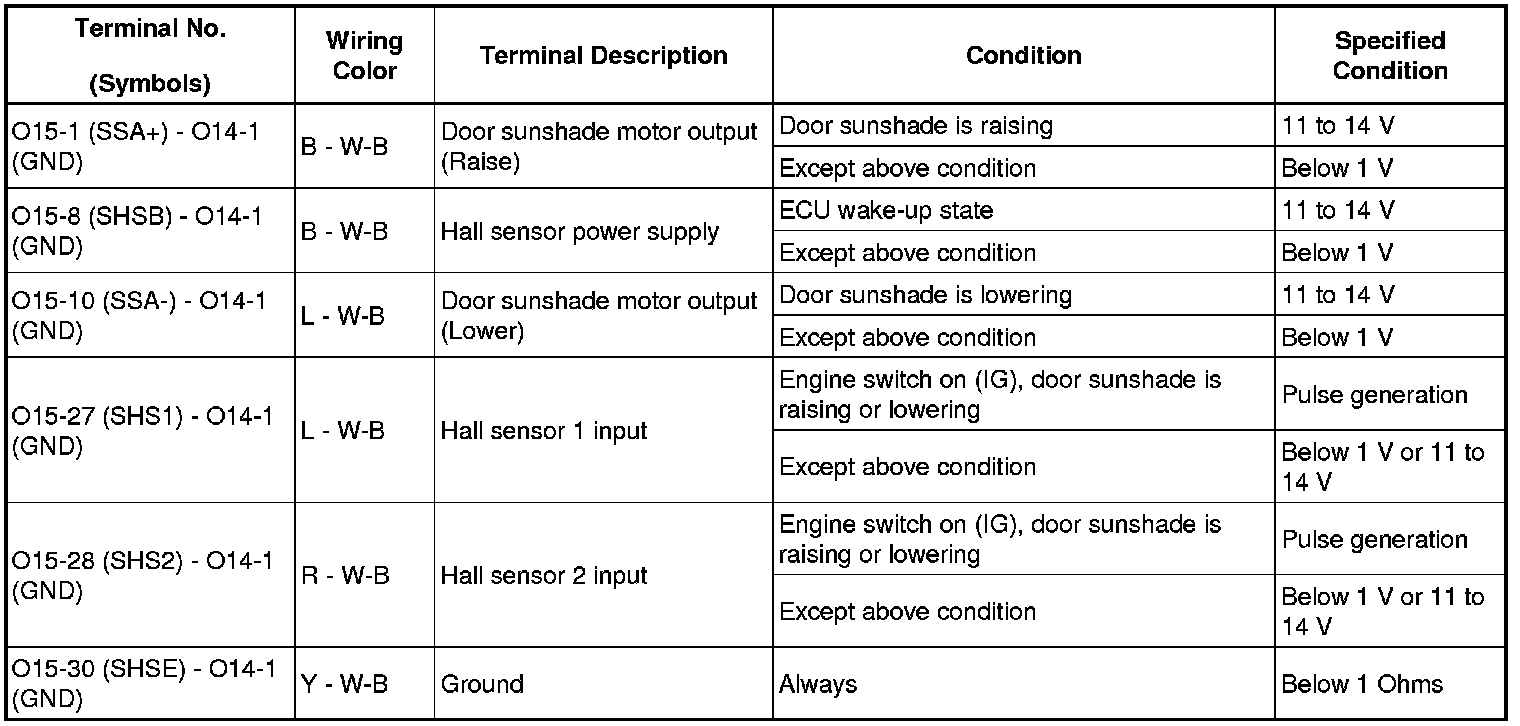

(d) Measure the voltage of the connector.





- If the result is not as specified, the ECU or door sunshade may have a malfunction.

2. CHECK REAR DOOR ECU RH

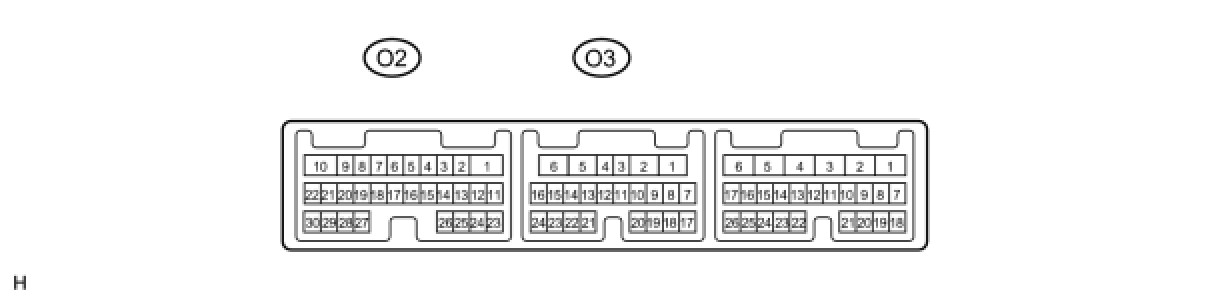

(a) Disconnect the O3 ECU connector.

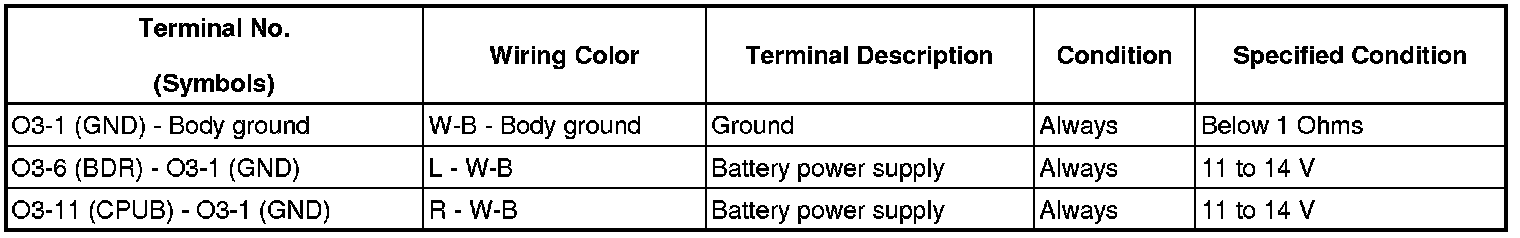

(b) Measure the voltage and resistance of the wire harness side connector.





- If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the O3 ECU connectors.

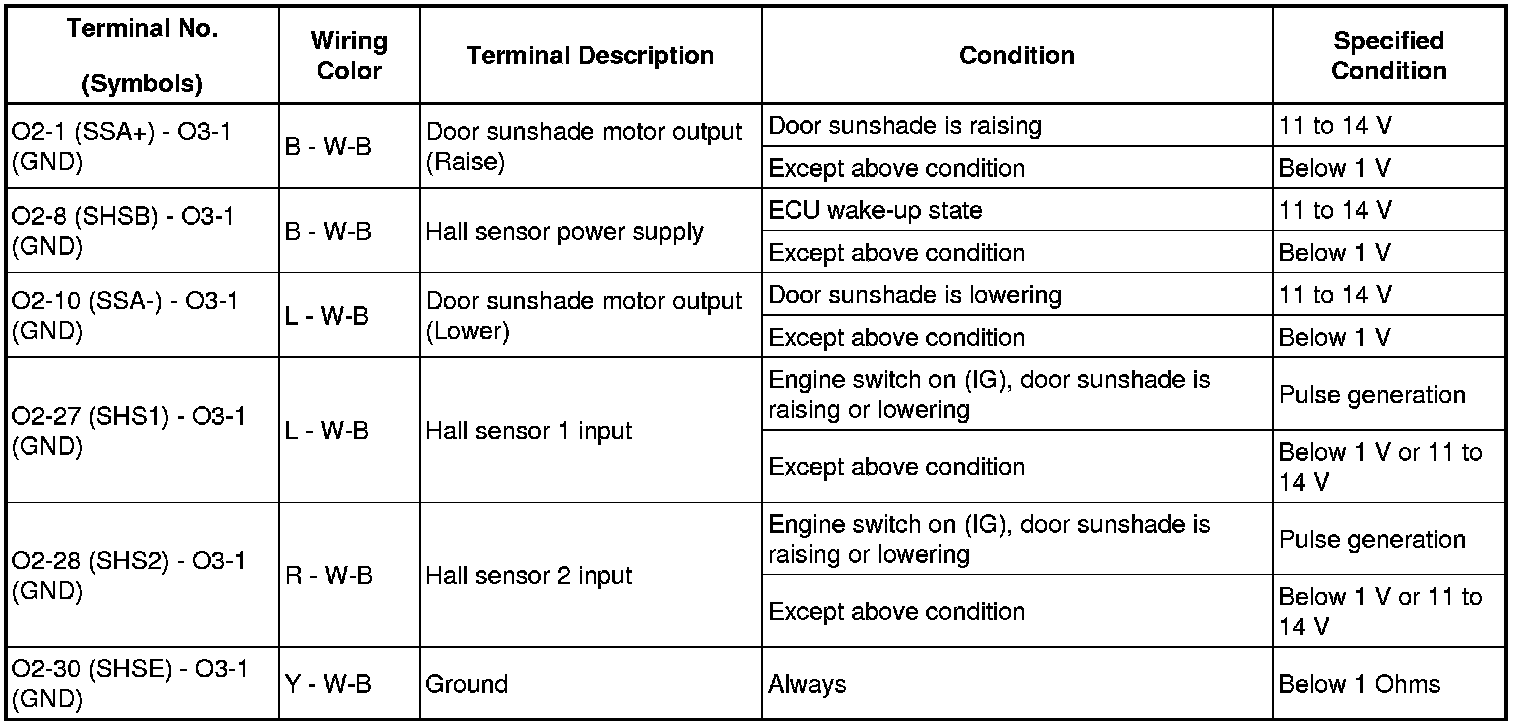

(d) Measure the voltage of the connector.





- If the result is not as specified, the ECU or door sunshade may have a malfunction.
