How To Proceed With Troubleshooting

INTERIOR: REAR SUNSHADE SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use these procedures to troubleshoot the rear sunshade system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.

3. CHECK FOR DTC (ELECTRIC POWER CONTROL SYSTEM)*
(a) Using the Techstream, check if the electric power control system is functioning normally.

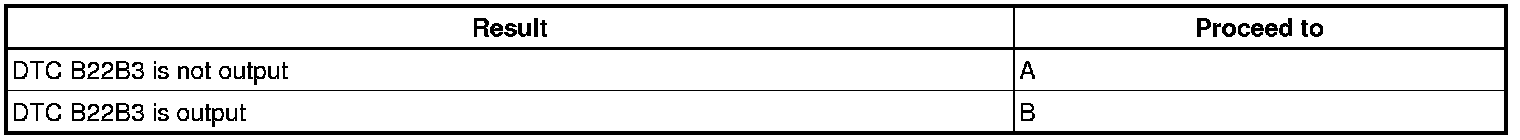

Result





B -- Go to ELECTRIC POWER CONTROL SYSTEM
A -- Continue to next step.

4. INSPECT COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the CAN Communication System is functioning normally.

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.

5. INSPECT COMMUNICATION FUNCTION OF LIN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the LIN Communication System is functioning normally.

Result





B -- Go to LIN COMMUNICATION SYSTEM
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE
(a) Refer to the problem symptoms table Problem Symptoms Table.

Result





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Data List / Active Test Rear Sunshade System
(b) Terminals of ECU Rear Sunshade System
(c) Operation Check Operation Check
NEXT -- Continue to next step.

8. REPAIR OR REPLACE
NEXT -- Continue to next step.

9. CONFIRMATION TEST
NEXT -- END
