Installation

INTERIOR: REAR SUNSHADE ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL REAR SUNSHADE ASSEMBLY

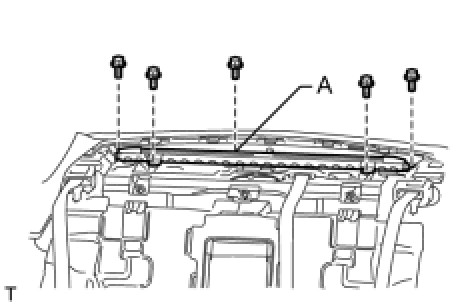

(a) Tighten the bolt labeled A.
(b) Install the sunshade with the 5 bolts.
2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY

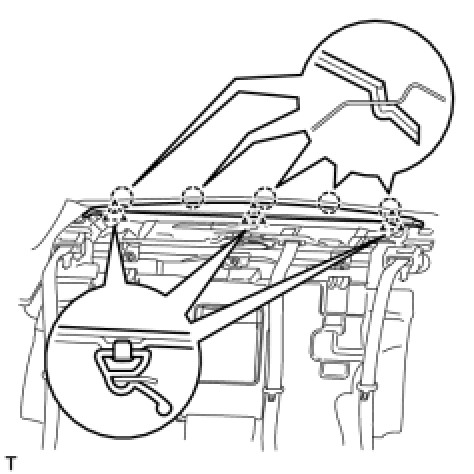

(a) Attach the 5 claws and 3 clips to install the panel.
3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY Installation
4. INSTALL REAR NO. 4 AIR DUCT (W/ Rear Cooler) Installation
5. INSTALL REAR NO. 5 AIR DUCT (W/ Rear Cooler) Installation
6. INSTALL ROOF SIDE NO. 2 AIR DUCT LH (W/ Rear Cooler) Installation
7. INSTALL ROOF SIDE NO. 2 AIR DUCT RH (W/ Rear Cooler) Installation
8. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
(a) W/ Rear Cooler:
Connect the solar sensor connector.





(b) Pass the rear seat belt floor anchors through the panel.
(c) Insert the rear part of the panel into the rear sunshade.

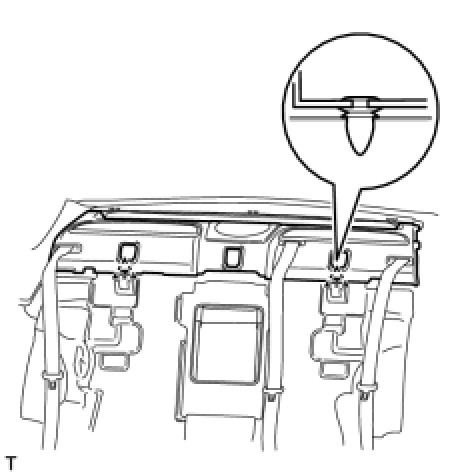

(d) Attach the 2 clips and install the package tray trim panel.

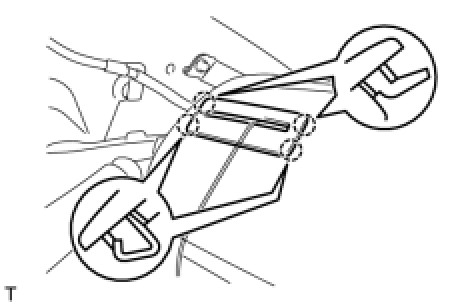

(e) except Ottoman Seat:
Attach the 4 claws to install the 3 belt guides.
(f) for Ottoman Seat:
Attach the 4 claws to install the 2 belt guides.
9. INSTALL ROOF SIDE GARNISH INNER LH Installation
10. INSTALL ROOF SIDE GARNISH INNER RH Installation
11. INSTALL REAR SEAT SIDE GARNISH LH Installation
12. INSTALL REAR SEAT SIDE GARNISH RH Installation
13. INSTALL REAR DOOR SCUFF PLATE LH
(a) for Standard Body:
Install the rear door scuff plate Installation.
(b) for Long Body:
Install the rear door scuff plate Installation.
14. INSTALL REAR DOOR SCUFF PLATE RH
(a) for Standard Body:
Install the rear door scuff plate Installation.
(b) for Long Body:
Install the rear door scuff plate Installation.
15. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)
(a) Install the rear seat Installation.
16. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
(a) Install the rear seat Installation.
17. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
(a) Install the rear seat Installation.
18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
19. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
20. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

21. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
