Windshield Deicer System

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM

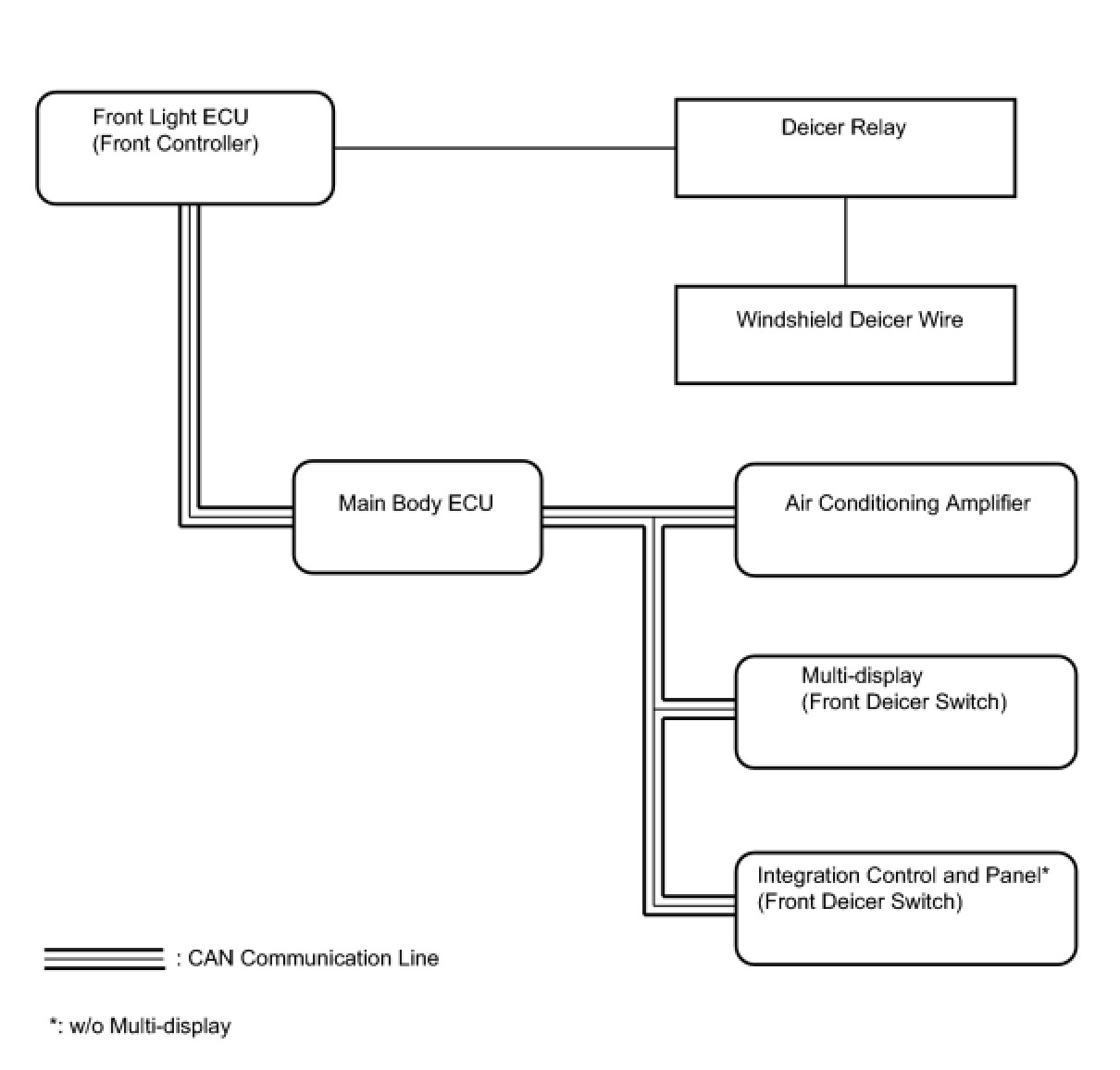

SYSTEM DIAGRAM

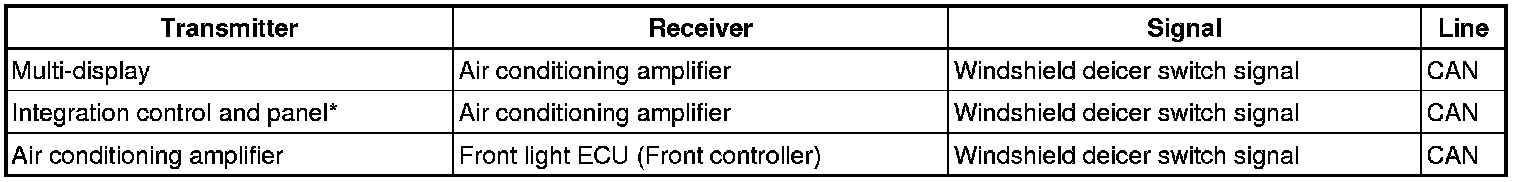

Communication table





HINT: *: W/O Multi-display

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
The windshield deicer system's thin heater wires are attached to the inside of the windshield glass and deice the front window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

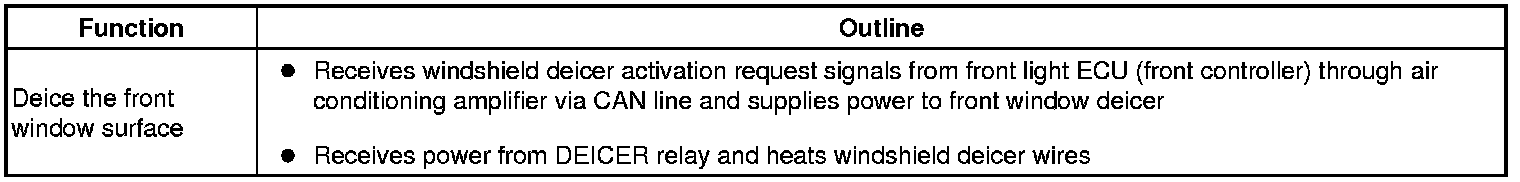

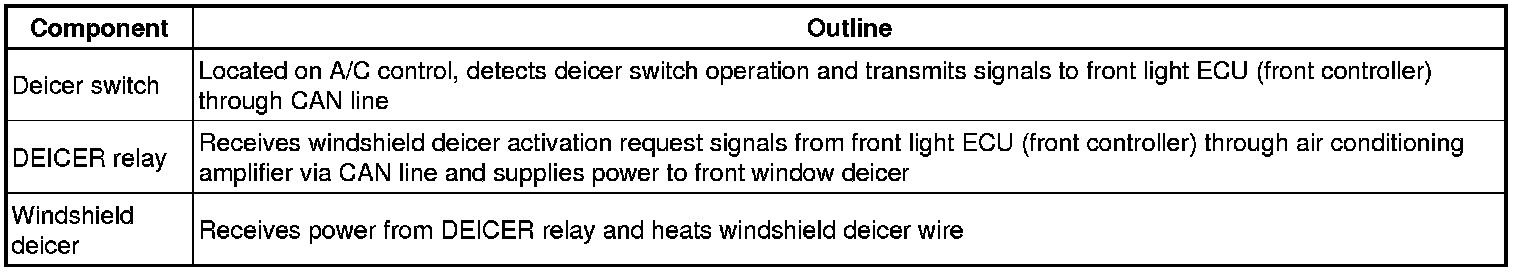

2. FUNCTION OF MAIN COMPONENT






3. DESCRIPTION
