Front Propeller Shaft Assembly

PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY (for AWD): INSPECTION

INSPECTION

1. INSPECT FRONT PROPELLER SHAFT ASSEMBLY
(a) Check that the propeller shaft is not cracked or damaged.

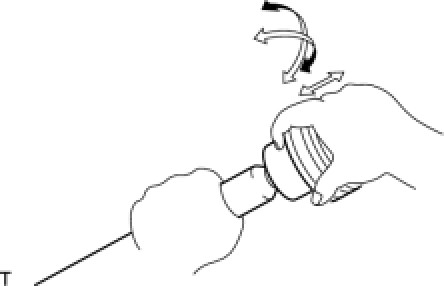

(b) Check that there is no excessive play in the joint.
If necessary, replace the front propeller shaft assembly.
