Disassembly

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE PROPELLER INTERMEDIATE SHAFT

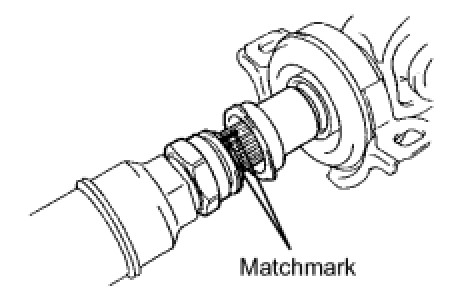

(a) Put matchmarks on the intermediate shaft and propeller shaft.
(b) Separate the intermediate shaft and propeller shaft.
NOTE:
Be careful not to damage the spline.

(c) Remove the adjusting nut from the intermediate shaft.

(d) Remove the dust boot from the propeller shaft.

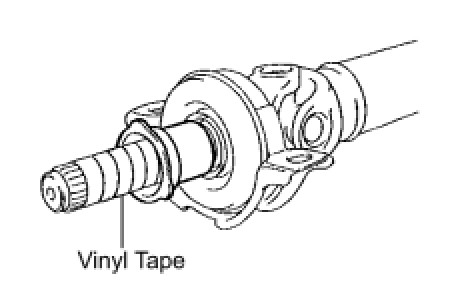

HINT: If the dust boot is to be reused, remove it after wrapping vinyl tape around the spline, so it will not be damaged.

2. REMOVE NO. 1 CENTER SUPPORT BEARING ASSEMBLY

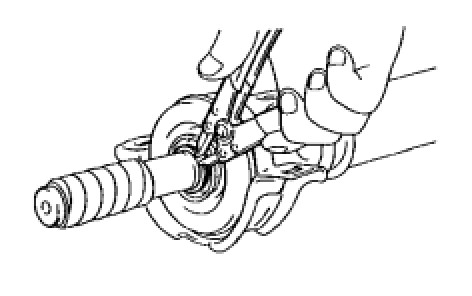

(a) Using a snap ring expander, remove the snap ring.

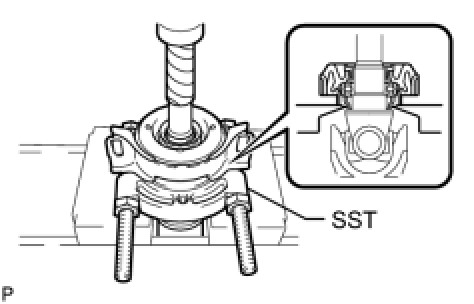

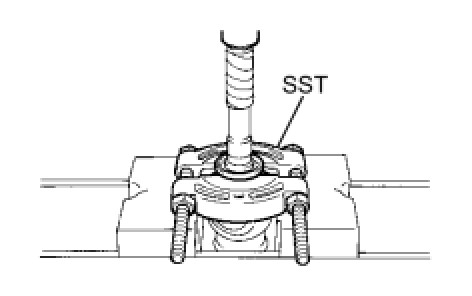

(b) Using SST and a press, press out the center support bearing and No. 2 dust deflector.
SST: 09950-00020
