Removal

DIFFERENTIAL: REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE REAR DRIVE SHAFT ASSEMBLY LH
(a) Remove the rear drive shaft assembly LH Removal.
2. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

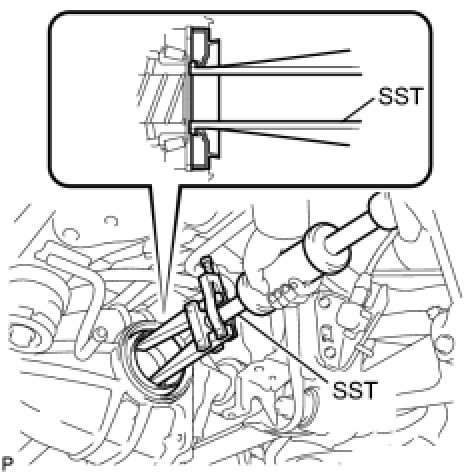

(a) Using SST, tap out the oil seal.
SST: 09308-00010
