Installation

DIFFERENTIAL: REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

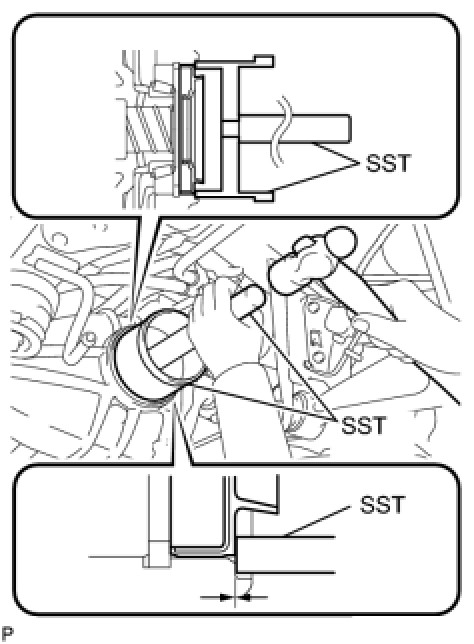

(a) Using SST and a hammer, tap in a new oil seal.
SST: 09223-15030
SST: 09950-70010
09951-07150
Standard depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Apply MP grease to the lip of the oil seal.
2. INSTALL REAR DRIVE SHAFT ASSEMBLY LH
(a) Install the rear drive shaft assembly LH Installation.
