AA80F Automatic Transmission

AA80F AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

INSPECTION





1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)

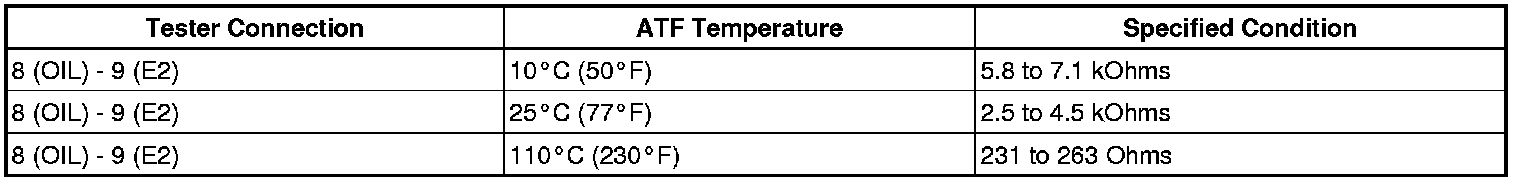

(a) Measure the resistance according to the value(s) in the table below.
HINT: If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

Standard Resistance:





If the result is not as specified, replace the transmission wire.
