AA80F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT SHIFT SOLENOID VALVE SL1
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

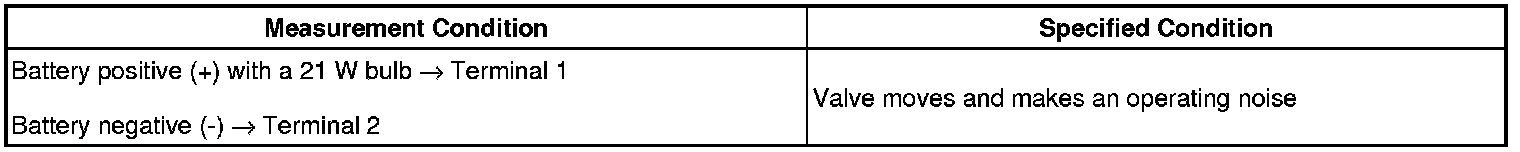

OK:





If the result is not as specified, replace the solenoid valve.





2. INSPECT SHIFT SOLENOID VALVE SL2
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.





3. INSPECT SHIFT SOLENOID VALVE SL3
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.





4. INSPECT SHIFT SOLENOID VALVE SL4
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.





5. INSPECT SHIFT SOLENOID VALVE SL5
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Measure the resistance according to the value(s) in the table below.
OK:





If the result is not as specified, replace the solenoid valve.

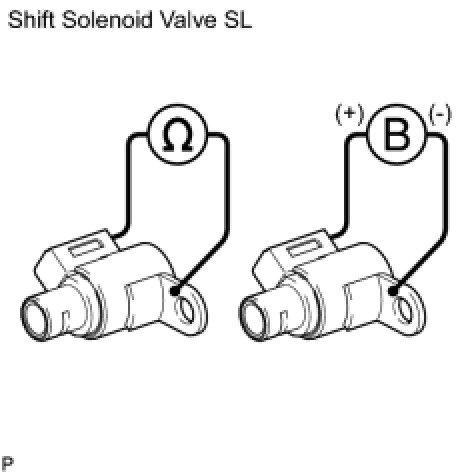

6. INSPECT SHIFT SOLENOID VALVE SL
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

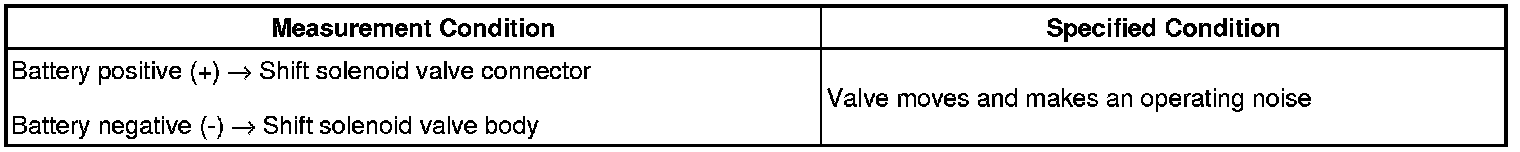

OK:





If the result is not as specified, replace the solenoid valve.





7. INSPECT SHIFT SOLENOID VALVE SLU
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.





8. INSPECT SHIFT SOLENOID VALVE SLT
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

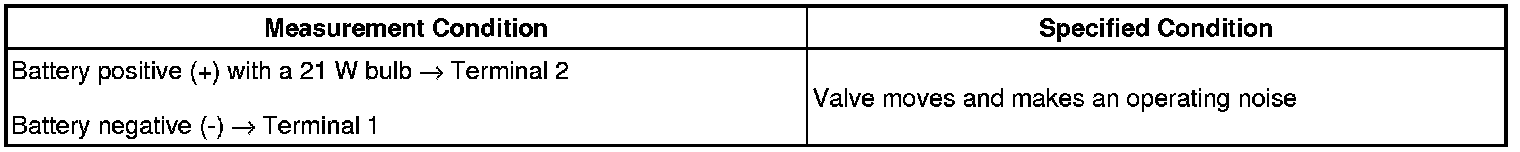

OK:





If the result is not as specified, replace the solenoid valve.

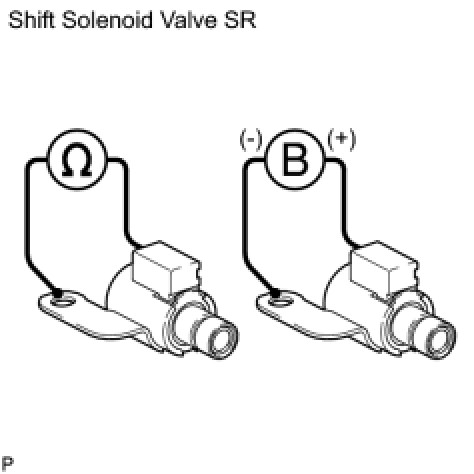

9. INSPECT SHIFT SOLENOID VALVE SR
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.
