AA80F Automatic Transmission








SERVICE SPECIFICATIONS: AA80F AUTOMATIC TRANSMISSION: SERVICE DATA

SERVICE DATA

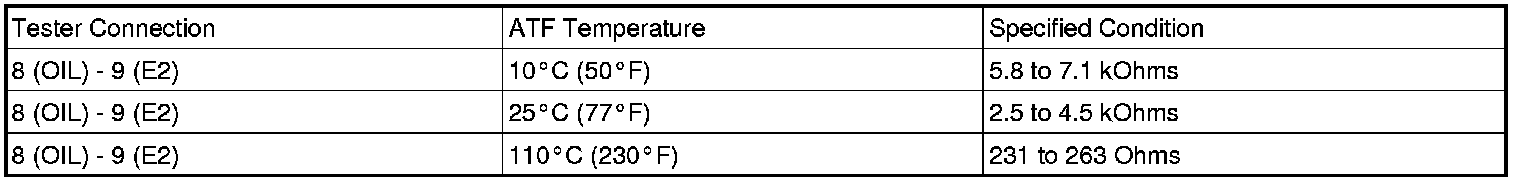

Transmission Wire

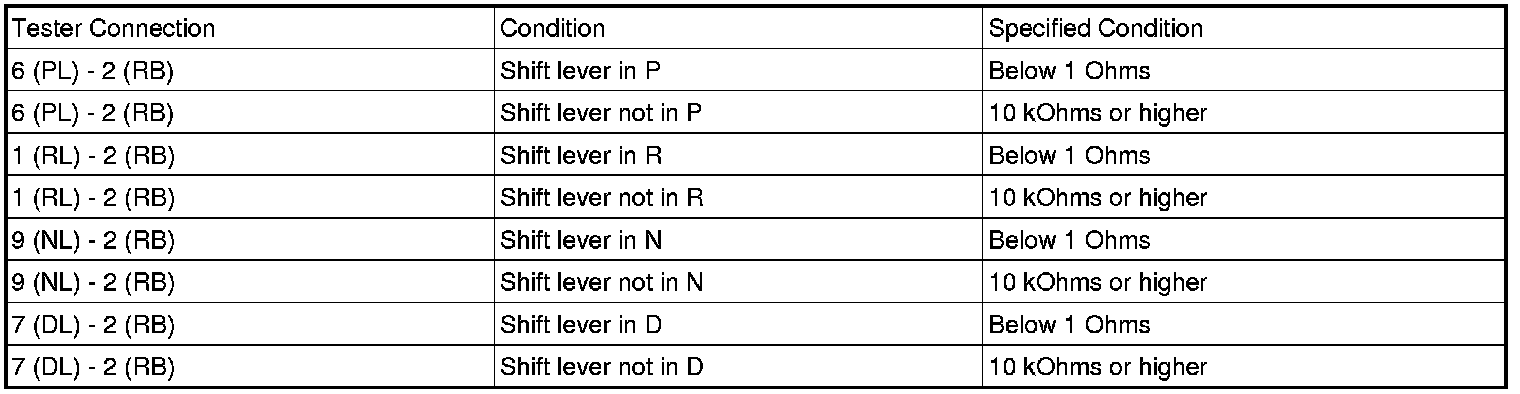

Park/Neutral Position Switch

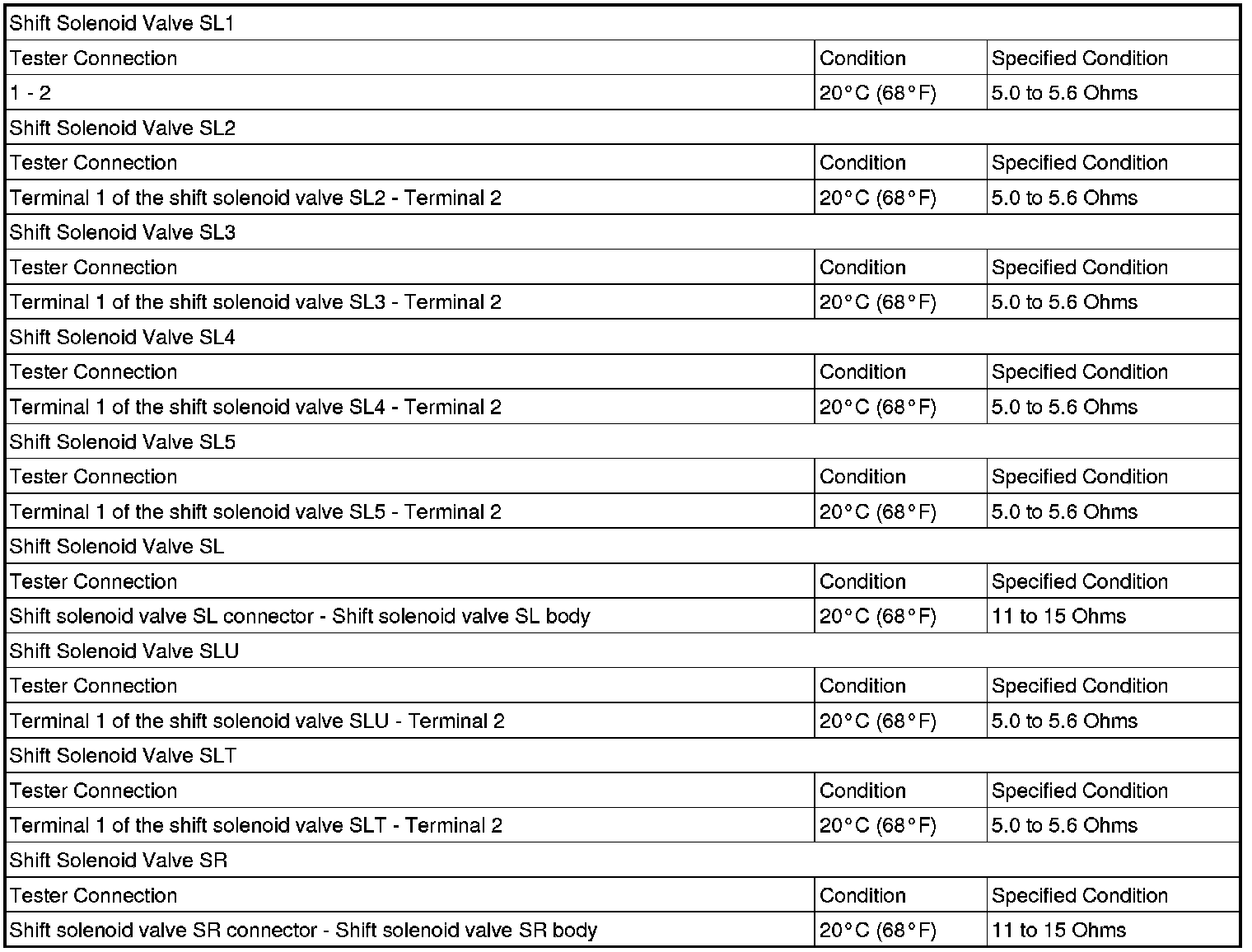

Valve Body Assembly

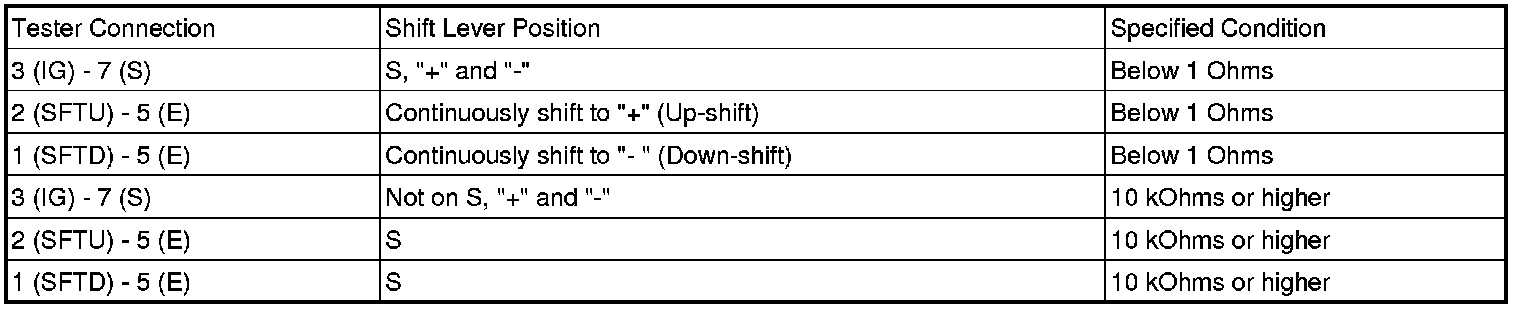

Transmission Control Switch
