AA80E Automatic Transmission

SERVICE SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION: SERVICE DATA

SERVICE DATA

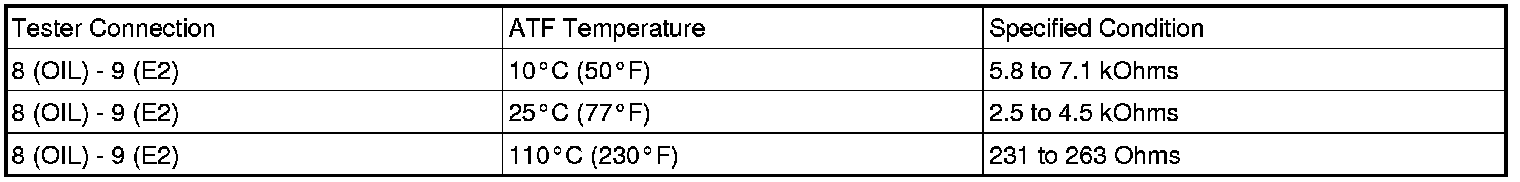

Transmission Wire

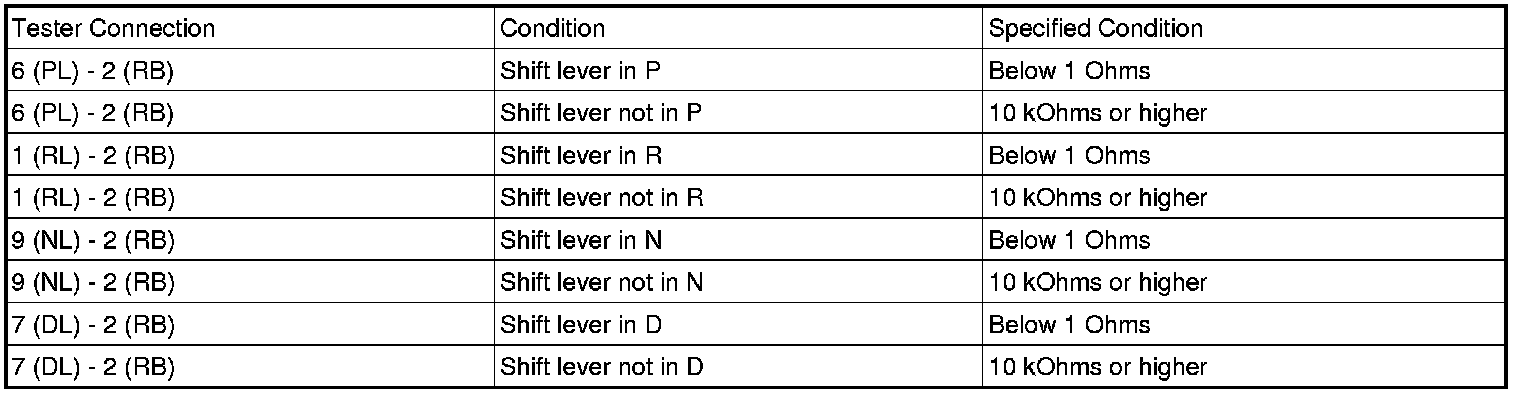

Park/Neutral Position Switch

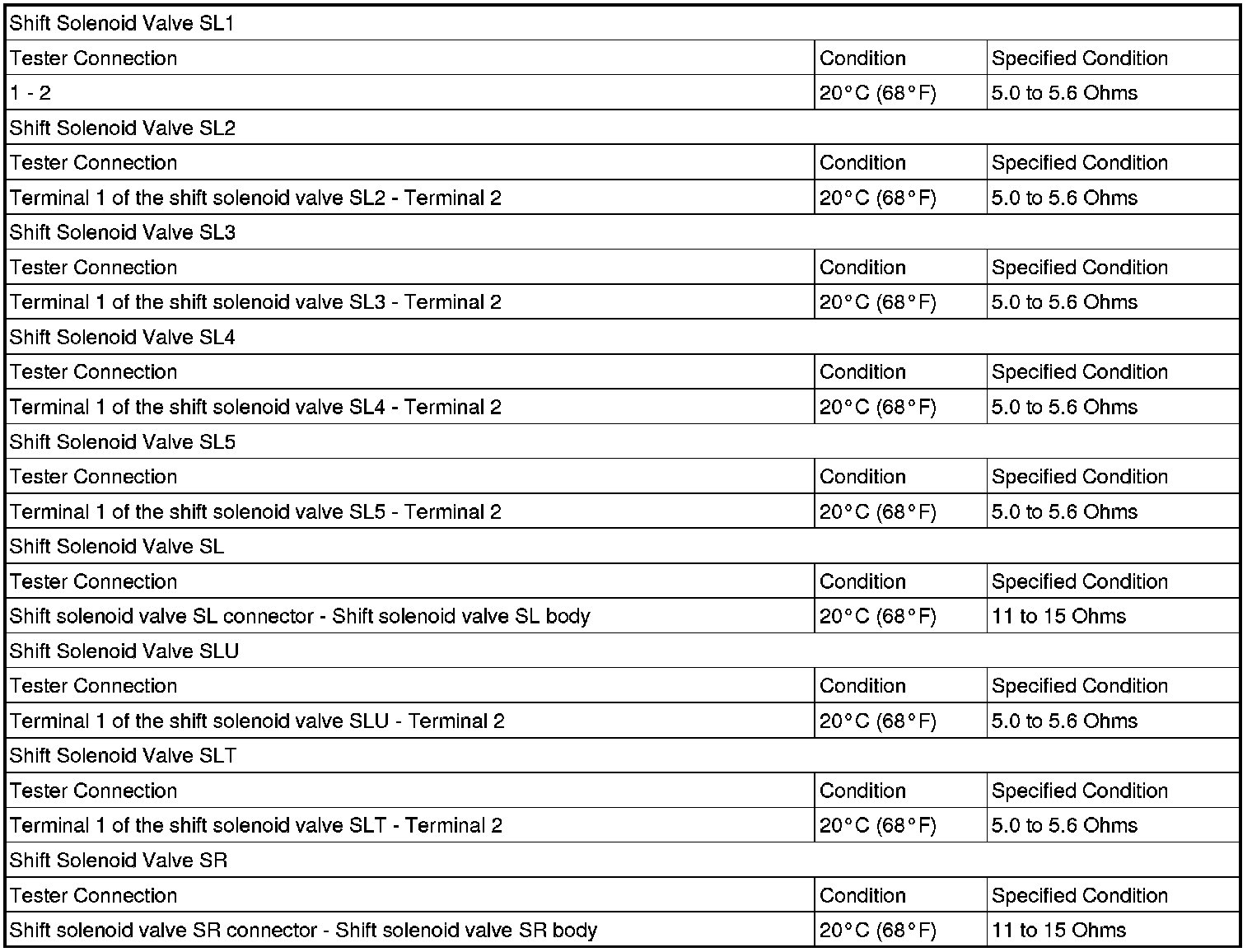

Valve Body Assembly

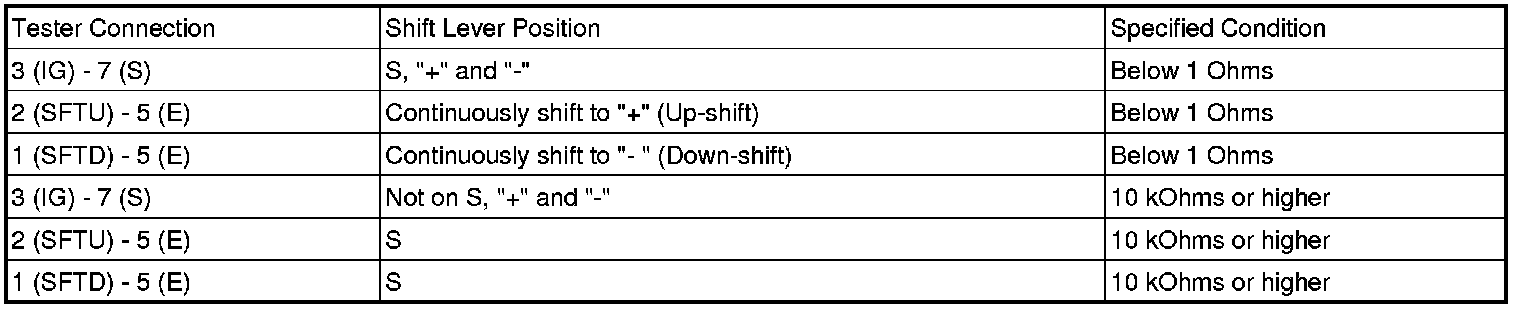

Transmission Control Switch





NOTICE:
- All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
- If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.
