Installation

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

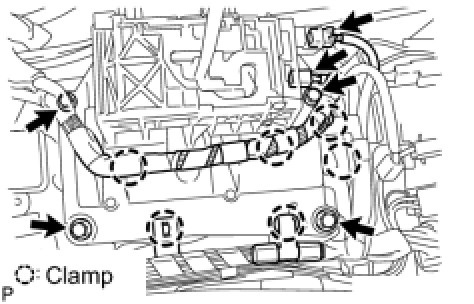

1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
(a) Install the floor shift with the 4 bolts.
Torque: 8.3 Nm (85 kgf-cm, 74 in-lbf)
(b) Connect the 5 wire harness clamps to the floor shift.
(c) Connect the 2 connectors.





2. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
(a) Temporarily connect the shifting rod to the connecting rod swivel with the nut.
HINT: The nut will be tightened to a torque specification during the shift lever position adjustment procedure.

3. INSTALL NO. 1 CONSOLE BOX DUCT
(a) Install the duct with the 2 screws.
4. INSTALL CONSOLE BOX ASSEMBLY
(a) Install the console box Installation.
5. ADJUST SHIFT LEVER POSITION
(a) Adjust the shift lever position AA80E Automatic Transmission.
6. INSPECT SHIFT LEVER POSITION
(a) Inspect the shift lever position On-Vehicle Inspection.
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSTALL COWL TOP VENTILATOR LOUVER Installation
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
