AA80E AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: INSPECTION

INSPECTION

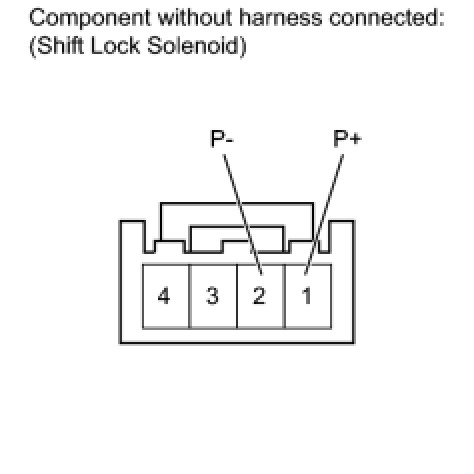

1. INSPECT SHIFT LOCK SOLENOID

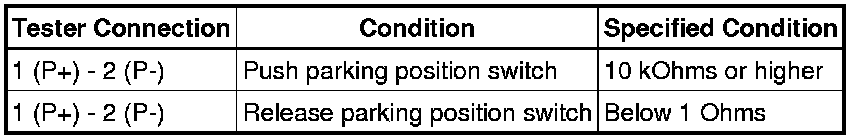

(a) Measure the resistance according to the value in the table below.
HINT: Disconnect the solenoid connector.

Standard resistance:





If the result is not as specified, replace the transmission floor shift assembly.

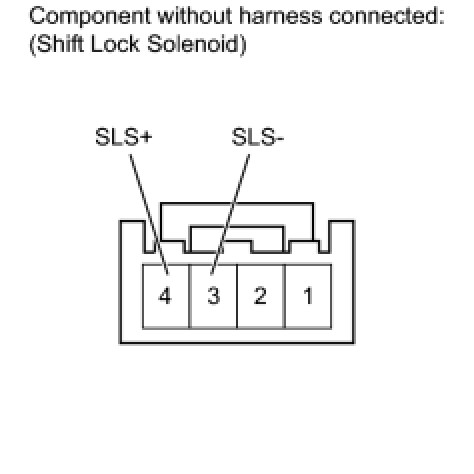

(b) Measure the resistance according to the values in the table below.
HINT: Disconnect the solenoid connector.

Standard resistance:





If the result is not as specified, replace the transmission floor shift assembly.
