Rear Shock Absorber

SUSPENSION: REAR SHOCK ABSORBER: INSPECTION

INSPECTION





1. INSPECT REAR SHOCK ABSORBER ASSEMBLY LH

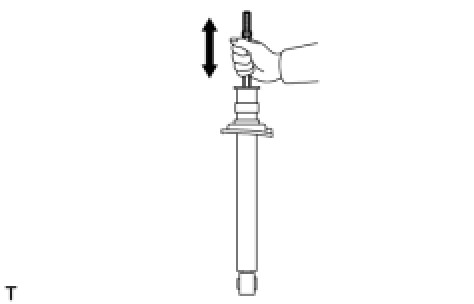

(a) Extend and compress the rear shock absorber.
(1) When extending and compressing the rear shock absorber at a constant speed, it can be moved without any abnormal resistance or noise and load is constant through the entire stroke. It also extends at a constant speed after being compressed.
- If there is any abnormality, replace the rear shock absorber with a new one.
NOTE:
When disposing of the rear shock absorber, see DISPOSAL Disposal.
