SUSPENSION CONTROL: HEIGHT CONTROL VALVE (for Front Side): REMOVAL

REMOVAL
CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Suspension Control System.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE ENGINE ROOM SIDE COVER LH Removal
4. REMOVE ENGINE ROOM SIDE COVER RH Removal
5. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal
6. REMOVE COOL AIR INTAKE DUCT SEAL Removal
7. REMOVE RADIATOR GRILLE ASSEMBLY Removal
8. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH
9. REMOVE FRONT FENDER WHEEL OPENING MOULDING RH Removal
10. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Removal
11. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH Removal
12. REMOVE FRONT FENDER LINER LH Removal
13. REMOVE FRONT FENDER LINER RH Removal
14. REMOVE FRONT BUMPER COVER Removal

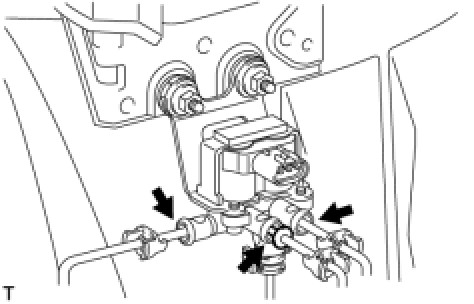

15. REMOVE NO. 1 HEIGHT CONTROL VALVE SUB-ASSEMBLY
(a) Disconnect the connector.

(b) Disconnect the underside air tube Suspension Control System.

(d) Remove the 2 nuts and height control valve.
