On-Vehicle Inspection

SUSPENSION: REAR LOWER ARM: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT REAR NO. 1 SUSPENSION ARM BALL JOINT RATTLE
(a) Jack up the vehicle.

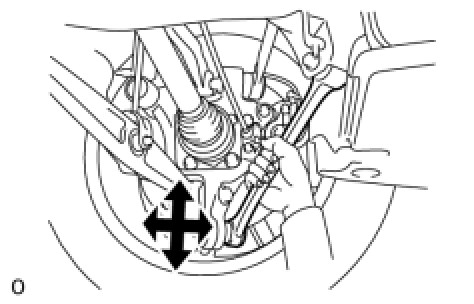

(b) Shake the suspension arm by hand and check for rattle.
Standard rattle:
No rattle is felt
